DORMER E290M20X1.5 HSS / HSCo DIN Taps

Description: Value
Product name: E290M20X1.5
Product number (SAP): 86016002
EAN number: 7320760167458

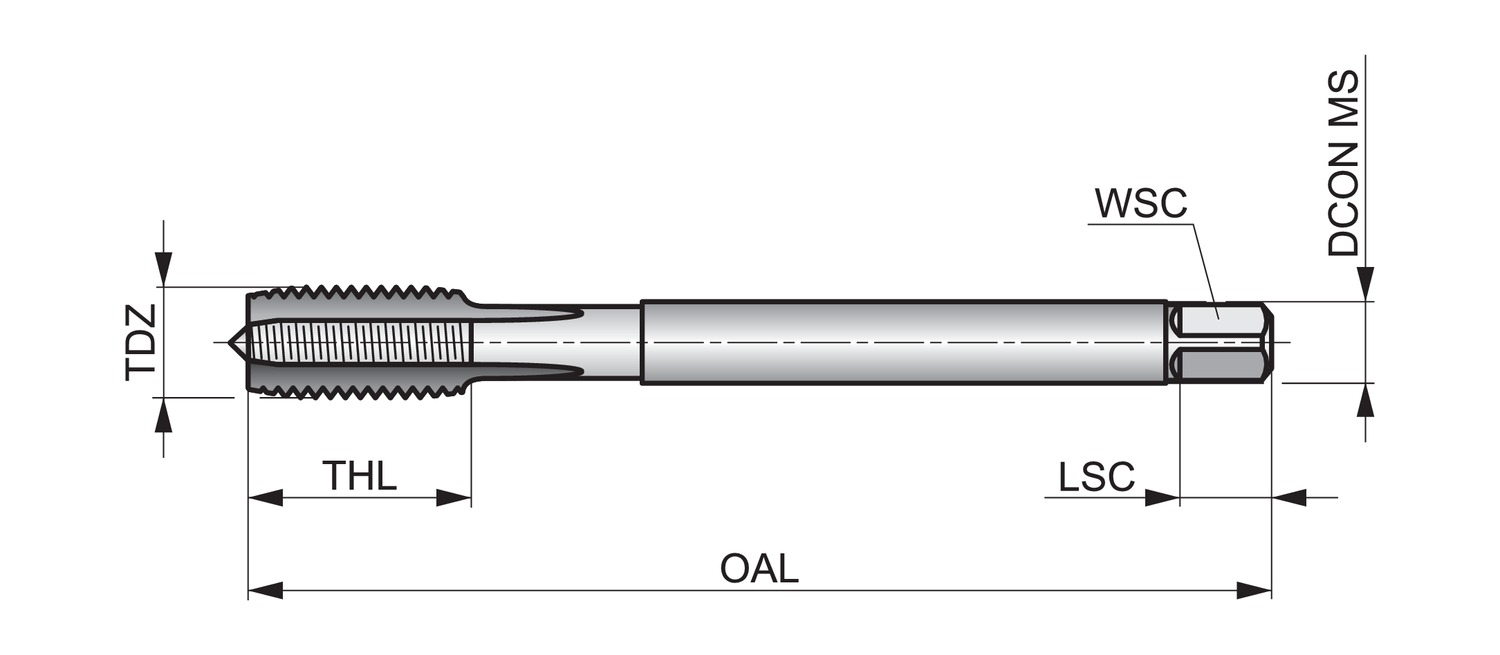

Thread diameter size (TDZ): 20
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 24 mm
Threading length – inch (THL): 0.9449 inch
Connection diameter – inch (DCON MS): 0.6299 inch
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.4724 inch
Clamping width – millimeter (WSC): 12 mm
Clamping Length – inch (LCS): 0.5906 inch
Clamping Length – millimeter (LSC): 15 mm
Premachined hole diameter – inch (PHD): 0.7283 inch
Premachined hole diameter – millimeter (PHD): 18.5 mm
Gross weight – grams: 184.7
ISO: E290M20X1.5
Ordering code ANSI: E290M20X1.5
