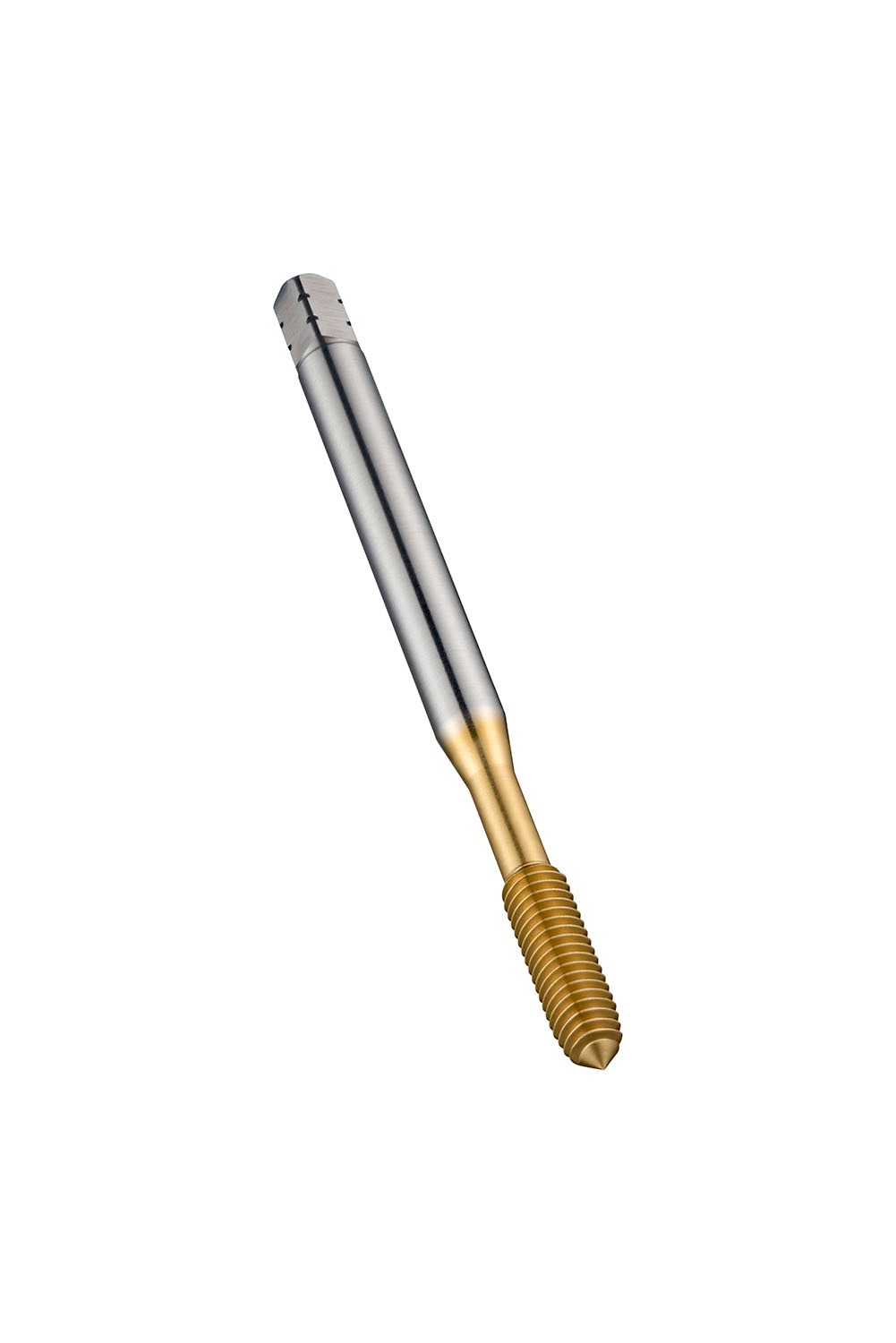

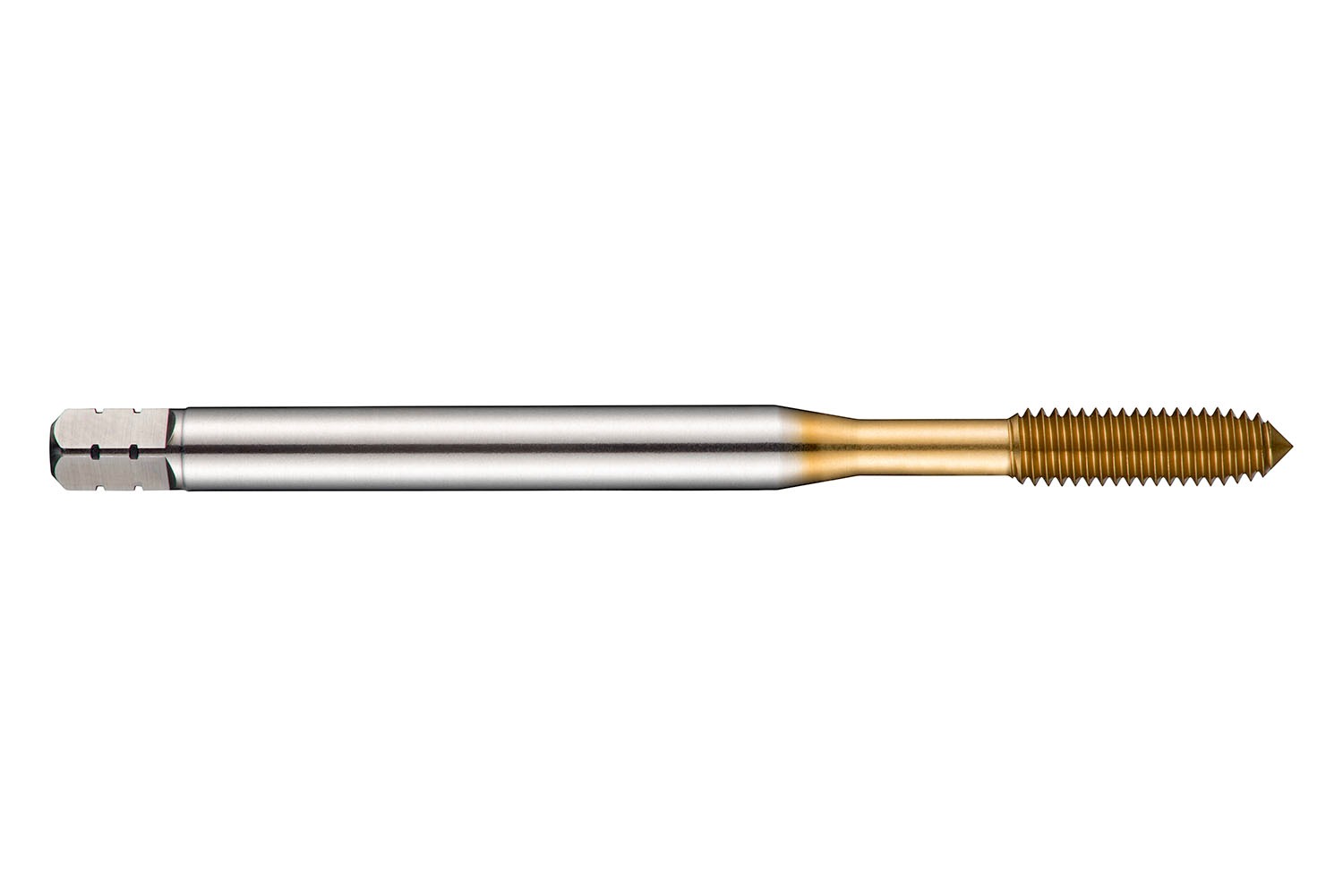

DORMER E292M1.6 HSS / HSCo DIN Taps

Description: Value
Product name: E292M1.6
Product number (SAP): 86016017
EAN number: 7320760670941
Thread diameter size (TDZ): 1.6
Thread pitch – millimeter (TP): 0.35 mm
Overall length – millimeter (OAL): 40 mm
Overall length – inch (OAL): 1.5748 inch
Threading length – millimeter (THL): 8 mm
Threading length – inch (THL): 0.315 inch
Connection diameter – inch (DCON MS): 0.0984 inch
Connection diameter – millimeter (DCON MS): 2.5 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.0827 inch
Clamping width – millimeter (WSC): 2.1 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0551 inch
Premachined hole diameter – millimeter (PHD): 1.4 mm
Gross weight – grams: 3.6
ISO: E292M1.6
Ordering code ANSI: E292M1.6
