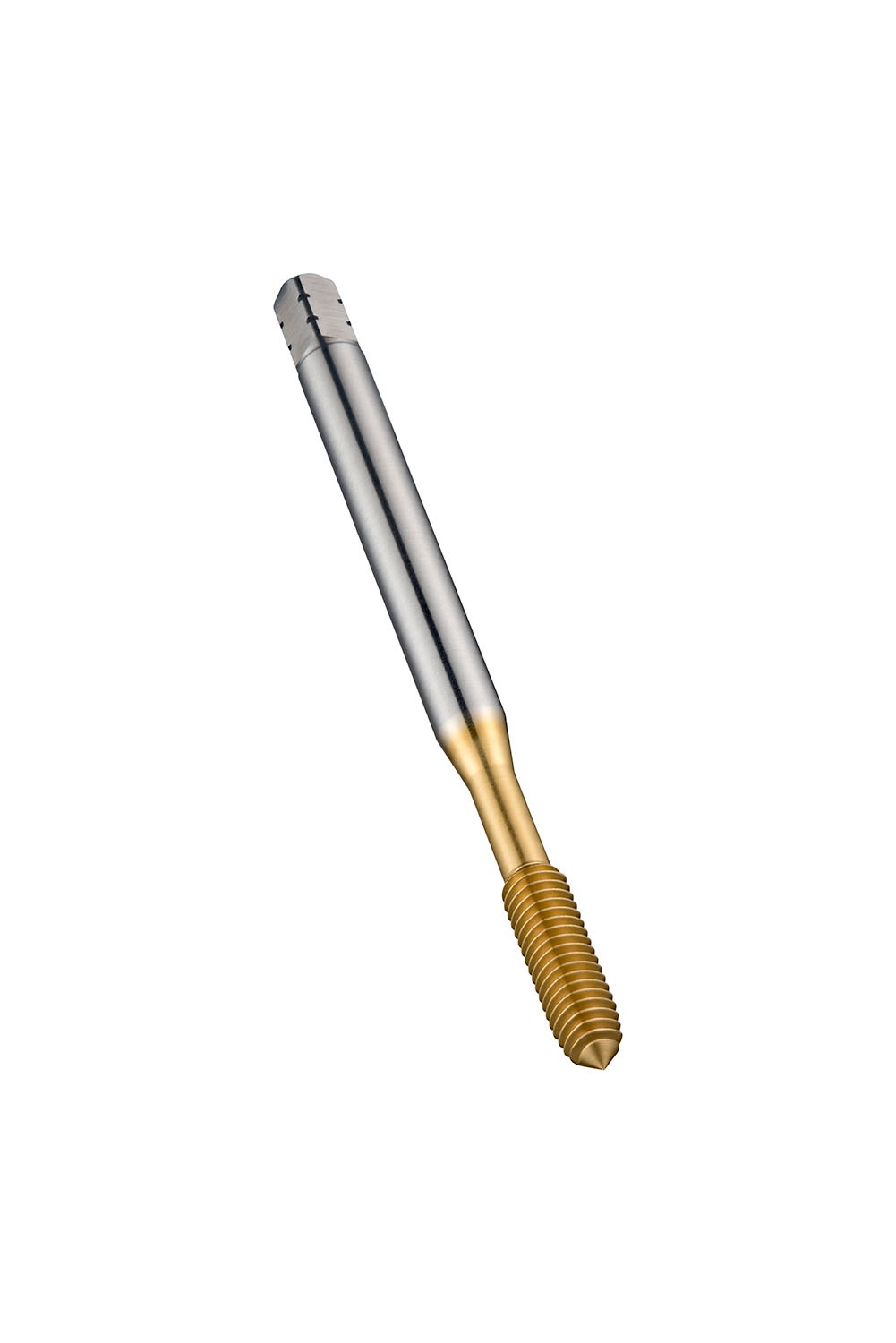

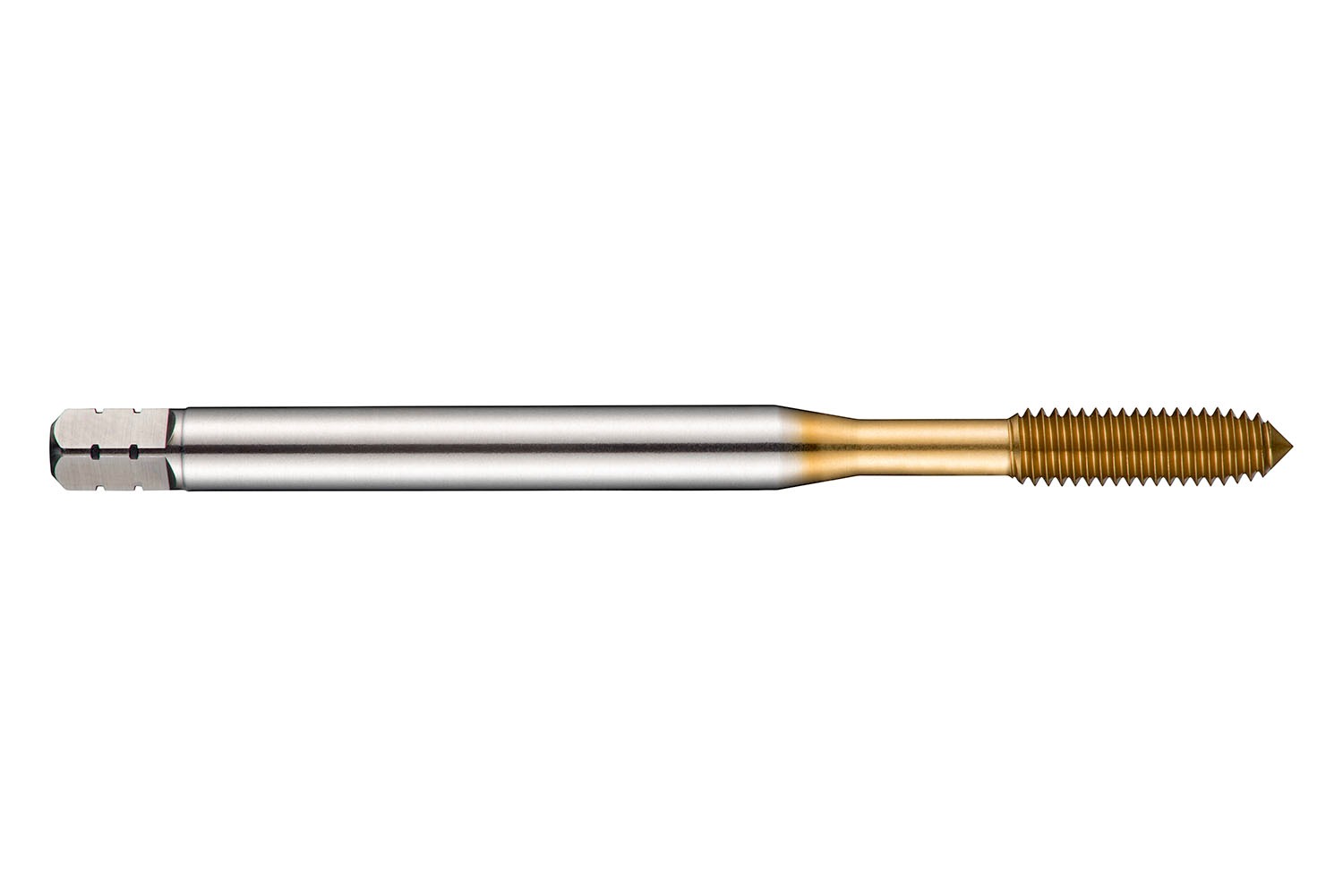

DORMER E292M12 HSS / HSCo DIN Taps

Description: Value
Product name: E292M12
Product number (SAP): 86016019
EAN number: 7320760663714
Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1.75 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 23 mm
Threading length – inch (THL): 0.9055 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 5
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4409 inch
Premachined hole diameter – millimeter (PHD): 11.2 mm
Gross weight – grams: 67.6
ISO: E292M12
Ordering code ANSI: E292M12
