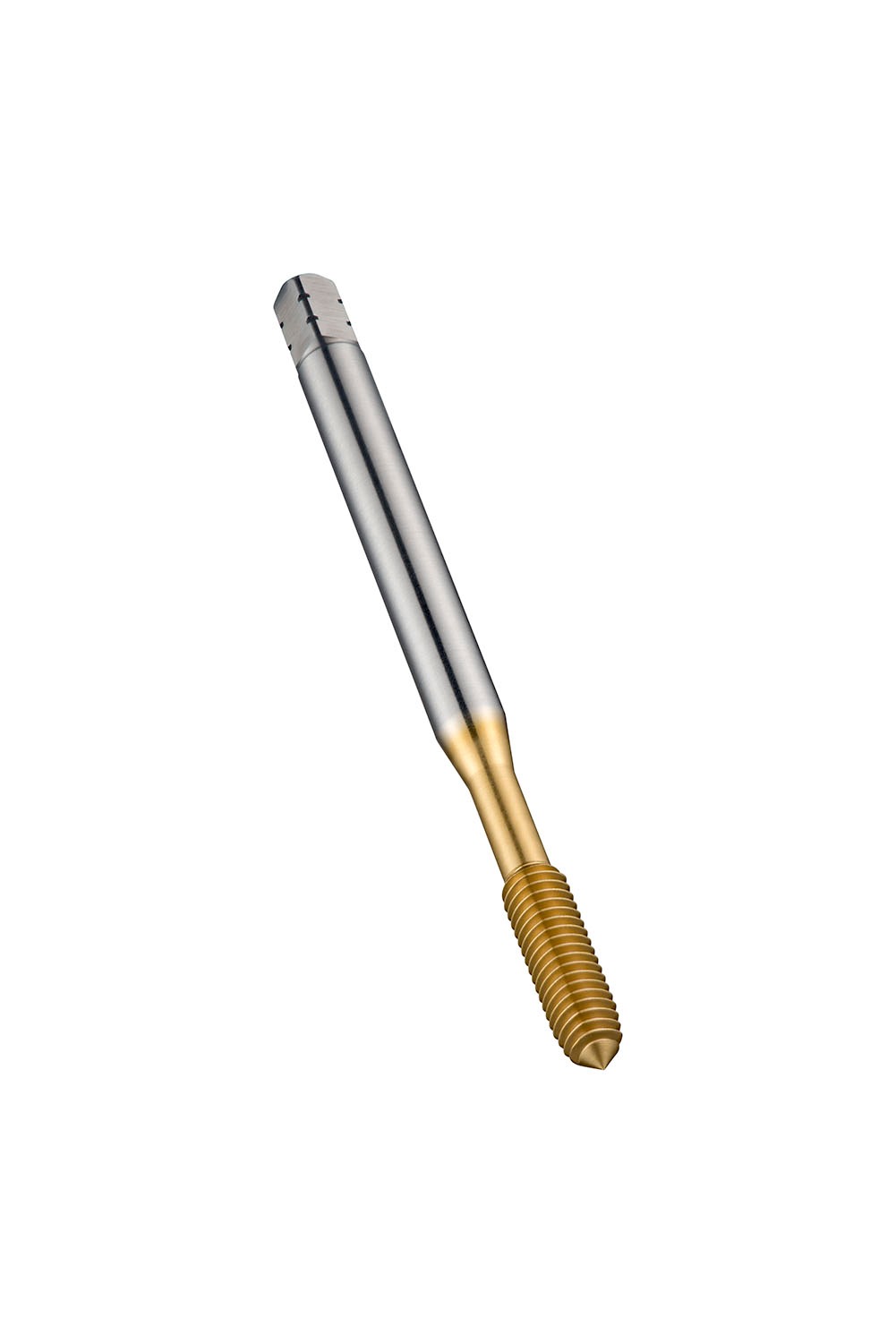

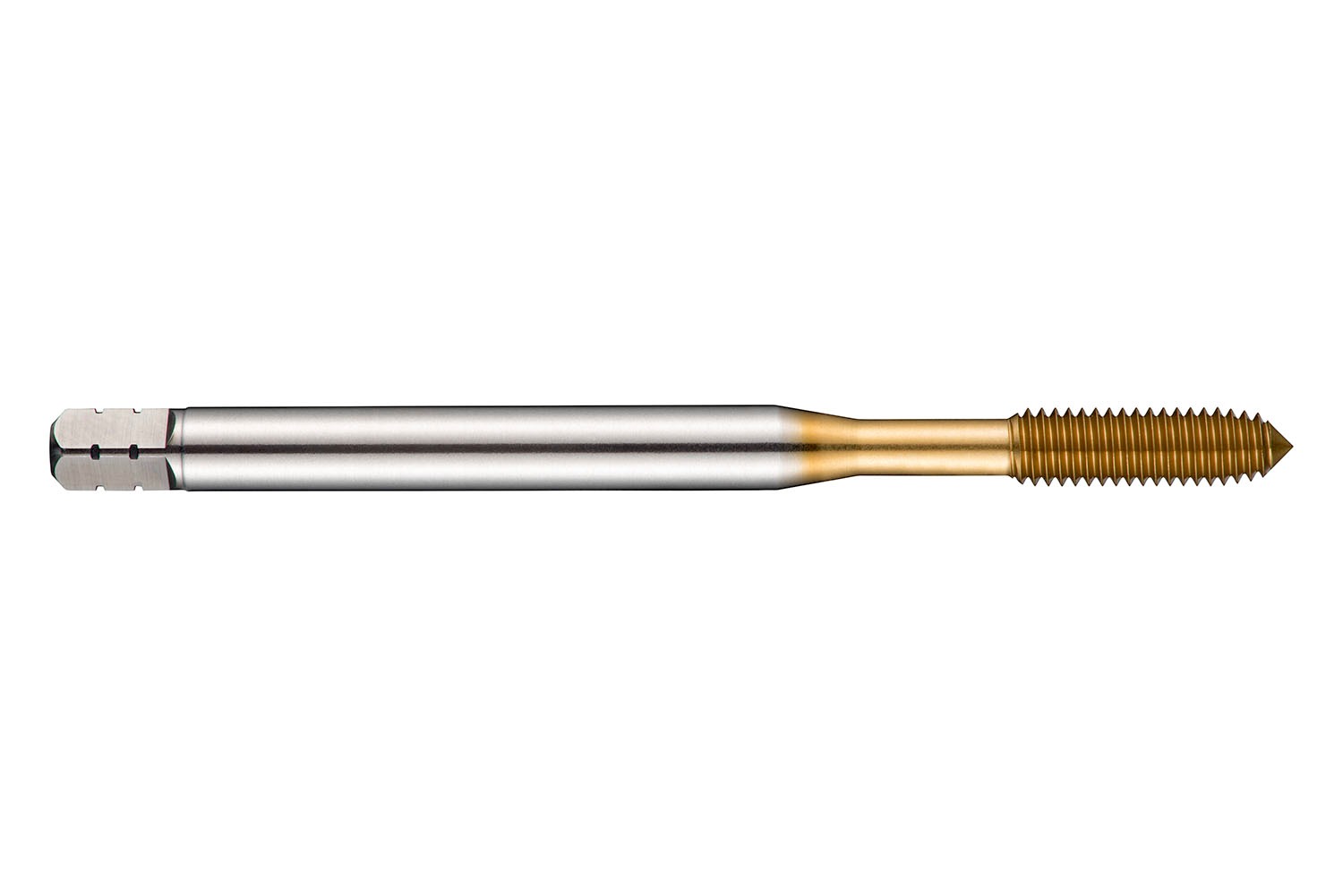

DORMER E292M16 HSS / HSCo DIN Taps

Product Code: E292M16

$285.52$259.56 Ex. GST

Product Code: E292M16 SKU E292M16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 12.0mm shank and 9.0mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight 0.2772 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: E292M16
Product number (SAP): 86016020
EAN number: 7320760663721

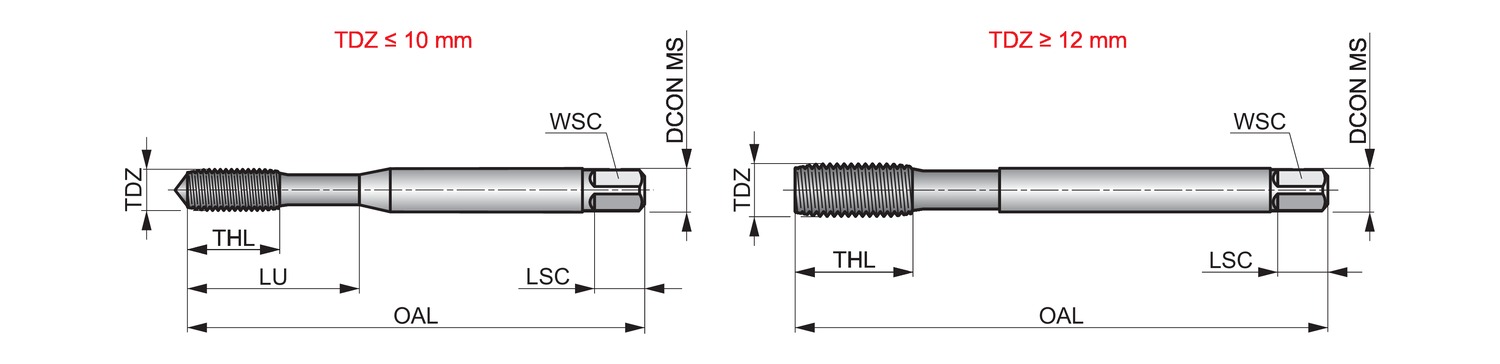

Thread diameter size (TDZ): 16
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 25 mm
Threading length – inch (THL): 0.9843 inch
Connection diameter – inch (DCON MS): 0.4724 inch
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 6
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.5906 inch
Premachined hole diameter – millimeter (PHD): 15 mm
Gross weight – grams: 112.2
ISO: E292M16
Ordering code ANSI: E292M16

Brand

DORMER
