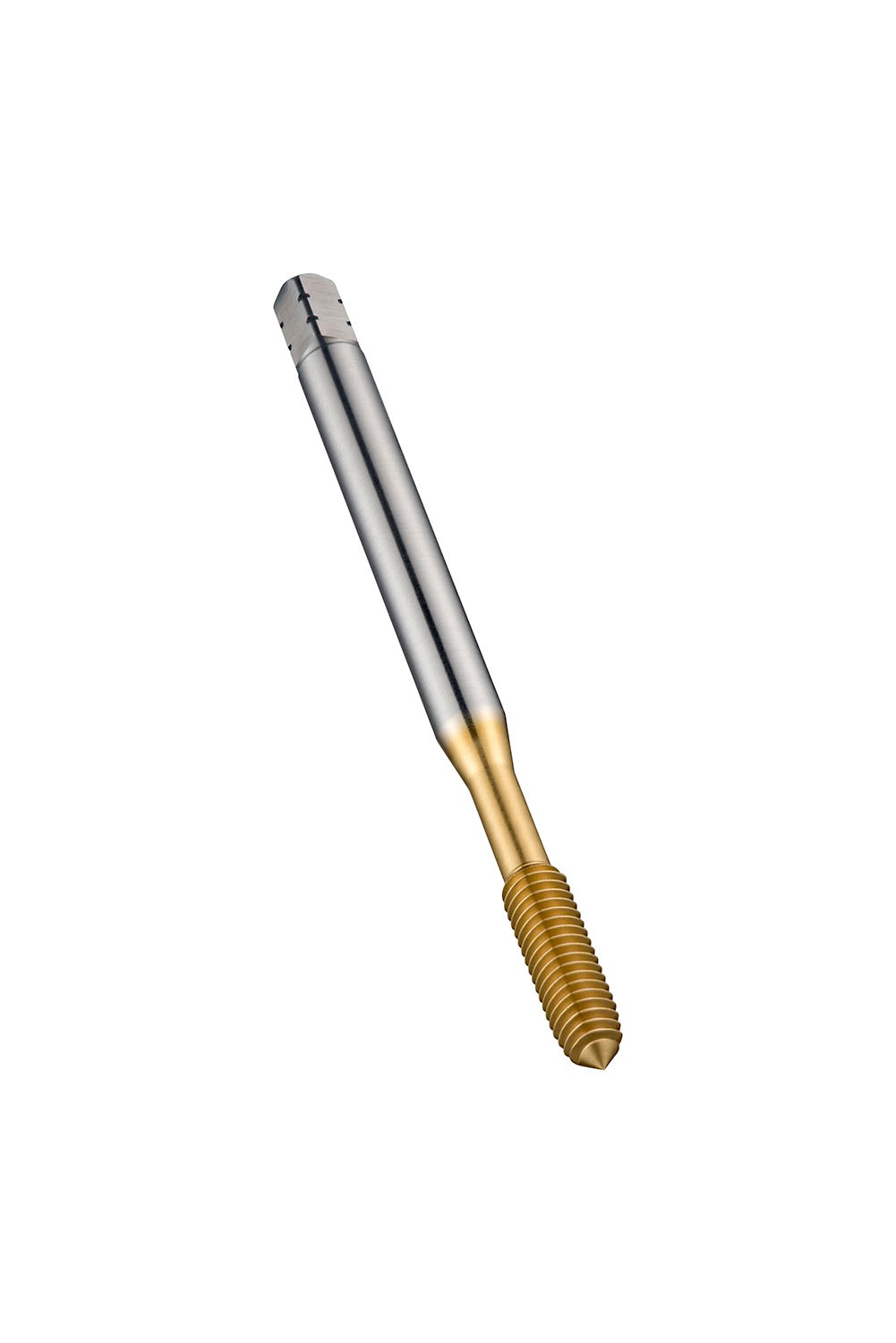

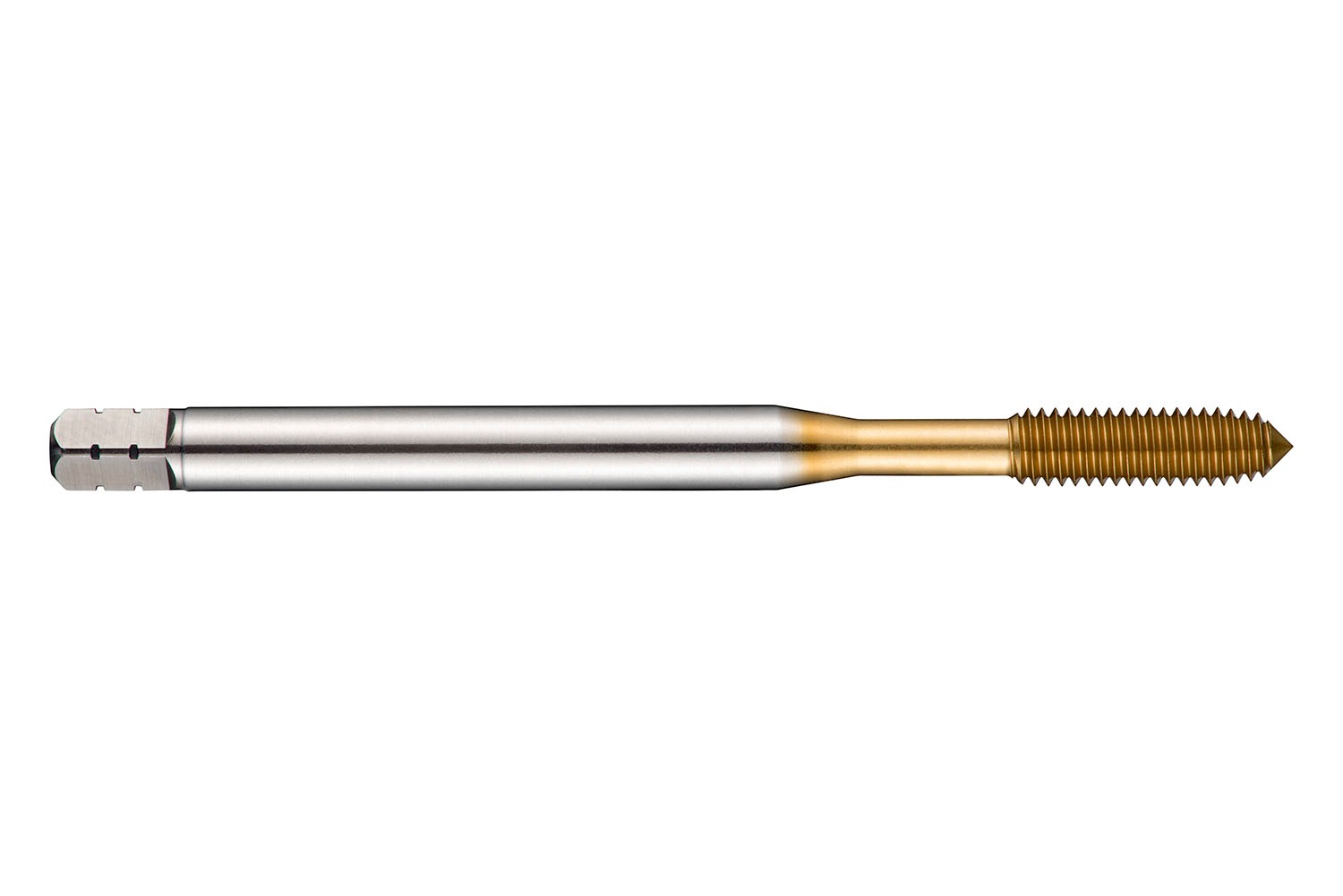

DORMER E292M2 HSS / HSCo DIN Taps

Description

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 2.8mm shank and 2.1mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.1386 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E292M2 Product number (SAP): 86016021 EAN number: 7320760670958 Thread diameter size (TDZ): 2 Thread pitch – millimeter (TP): 0.4 mm Overall length – millimeter (OAL): 45 mm Overall length – inch (OAL): 1.7717 inch Threading length – millimeter (THL): 6 mm Threading length – inch (THL): 0.2362 inch Connection diameter – inch (DCON MS): 0.1102 inch Connection diameter – millimeter (DCON MS): 2.8 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.4331 inch Usable Length – millimeter (LU): 11 mm Clamping width – inch (WSC): 0.0827 inch Clamping width – millimeter (WSC): 2.1 mm Clamping Length – inch (LCS): 0.1969 inch Clamping Length – millimeter (LSC): 5 mm Premachined hole diameter – inch (PHD): 0.0709 inch Premachined hole diameter – millimeter (PHD): 1.8 mm Gross weight – grams: 4.2 ISO: E292M2 Ordering code ANSI: E292M2

Need Technical Advice?

Description

Additional information

Brand

DORMER
