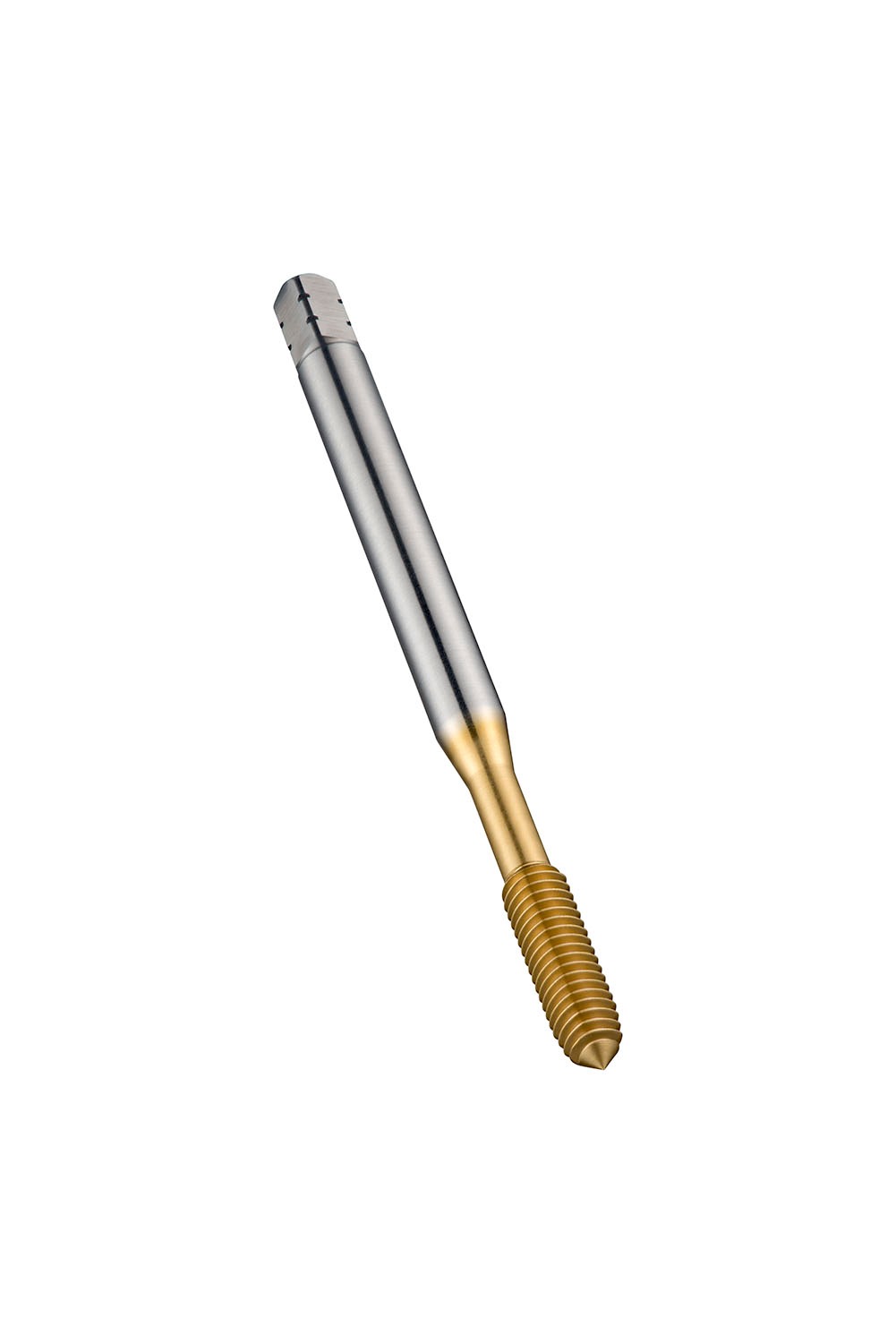

DORMER E292M4 HSS / HSCo DIN Taps

Description

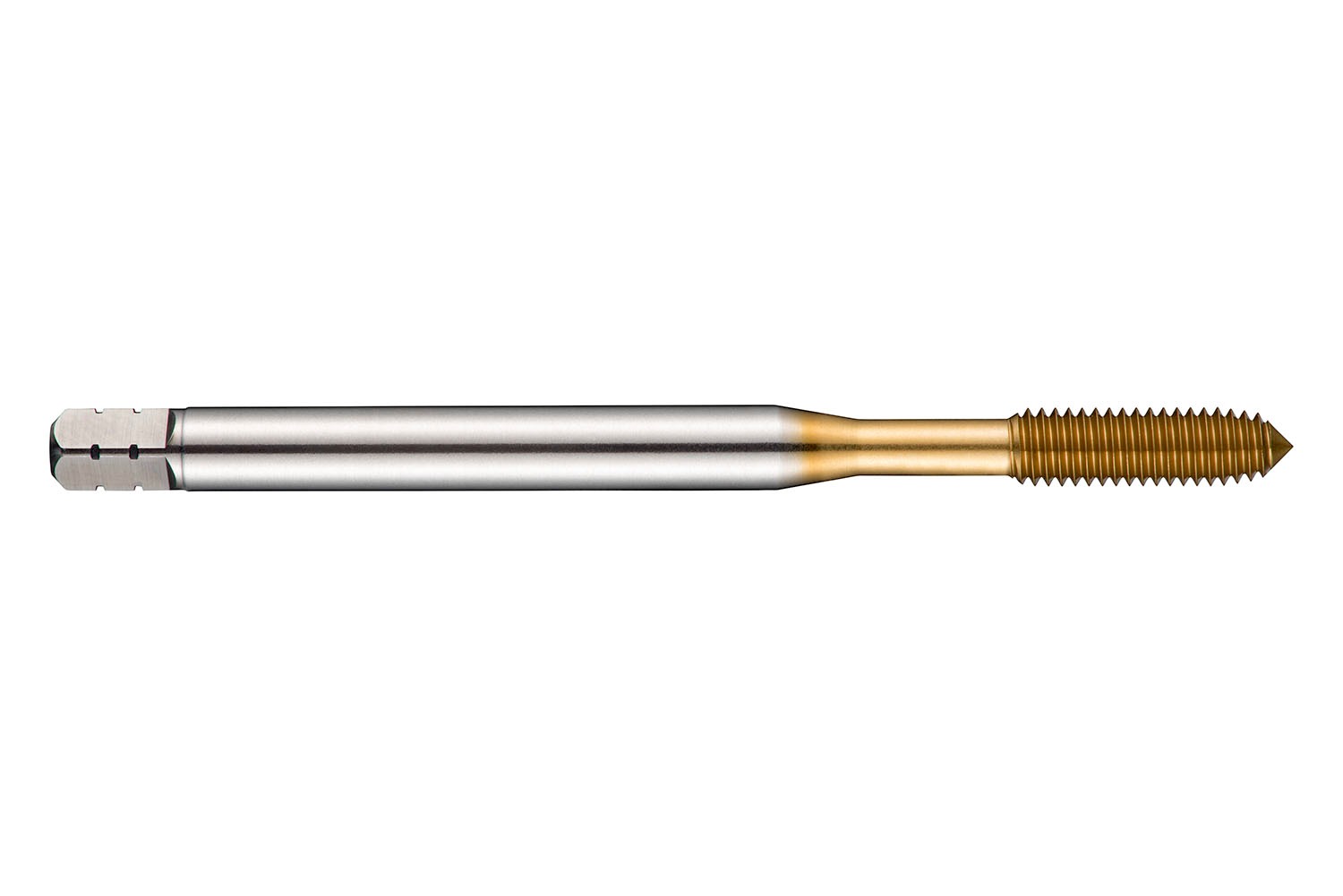

Thread forming tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6HX class of fit, dimensions according to DIN 2174 standard with 4.5mm shank and 3.4mm square drive, cobalt based HSS-E with TiN coating for 3xD through or blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.1023 kg
Dimensions
barcode

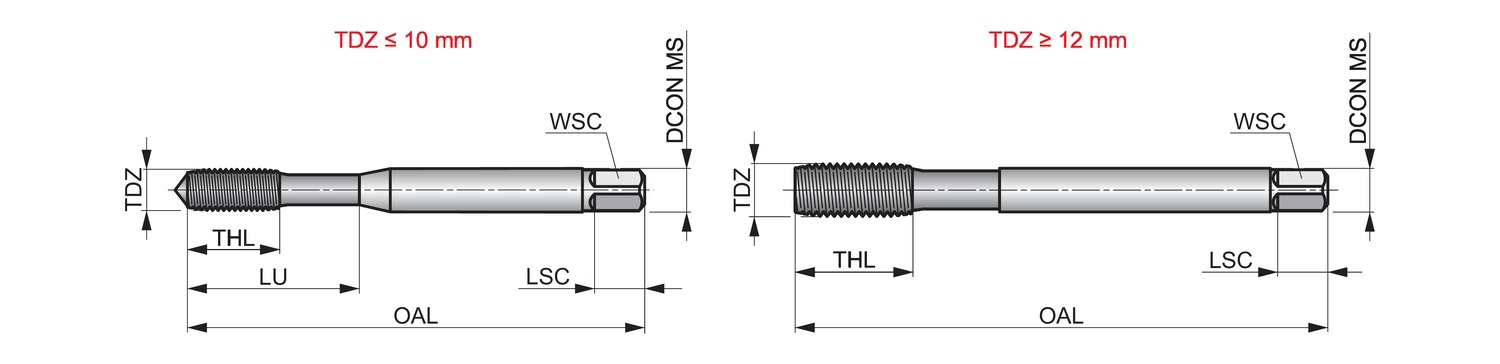

Additional Information	Description: Value Product name: E292M4 Product number (SAP): 86016025 EAN number: 7320760663660 Thread diameter size (TDZ): 4 Thread pitch – millimeter (TP): 0.7 mm Overall length – millimeter (OAL): 63 mm Overall length – inch (OAL): 2.4803 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.4724 inch Connection diameter – inch (DCON MS): 0.1772 inch Connection diameter – millimeter (DCON MS): 4.5 mm Flute count (NOF): 5 Usable Length – inch (LU): 0.8268 inch Usable Length – millimeter (LU): 21 mm Clamping width – inch (WSC): 0.1339 inch Clamping width – millimeter (WSC): 3.4 mm Clamping Length – inch (LCS): 0.2362 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.1457 inch Premachined hole diameter – millimeter (PHD): 3.7 mm Gross weight – grams: 9 ISO: E292M4 Ordering code ANSI: E292M4

Need Technical Advice?

Description

Additional information

Brand

DORMER
