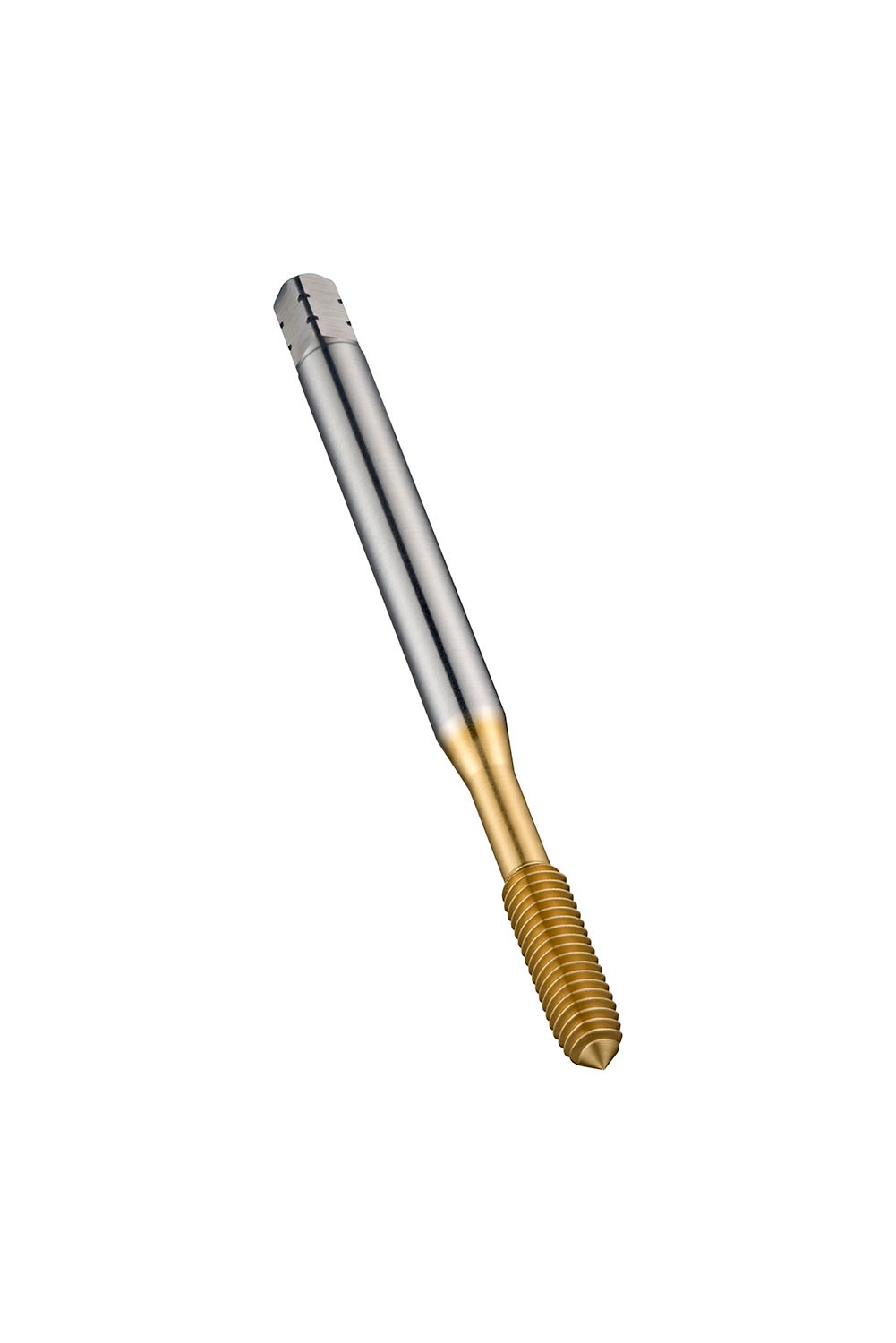

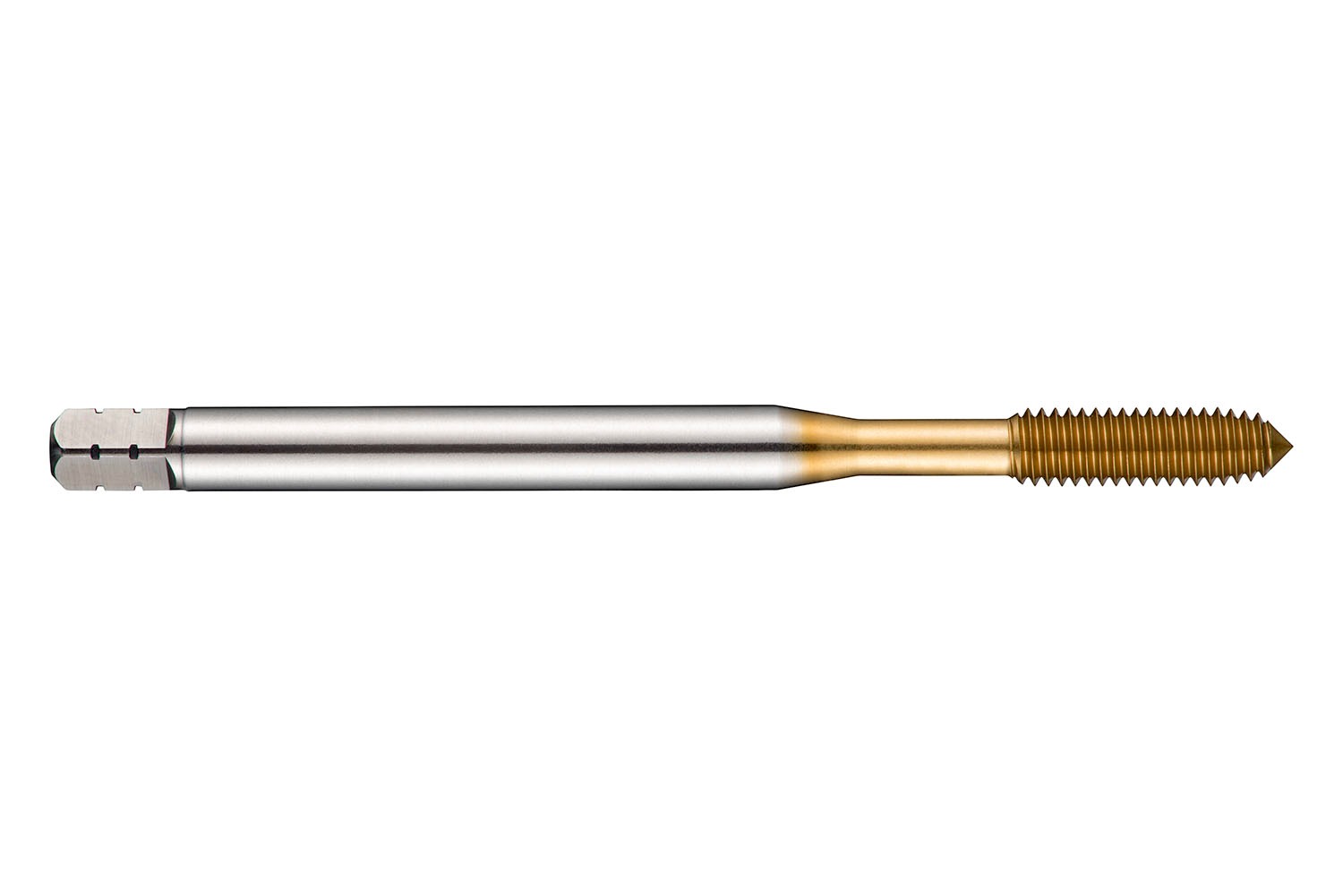

DORMER E292M6 HSS / HSCo DIN Taps

Description: Value
Product name: E292M6
Product number (SAP): 86016027
EAN number: 7320760663684
Thread diameter size (TDZ): 6
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 15 mm
Threading length – inch (THL): 0.5906 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 5
Usable Length – inch (LU): 1.1811 inch
Usable Length – millimeter (LU): 30 mm
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2165 inch
Premachined hole diameter – millimeter (PHD): 5.5 mm
Gross weight – grams: 18.3
ISO: E292M6
Ordering code ANSI: E292M6
