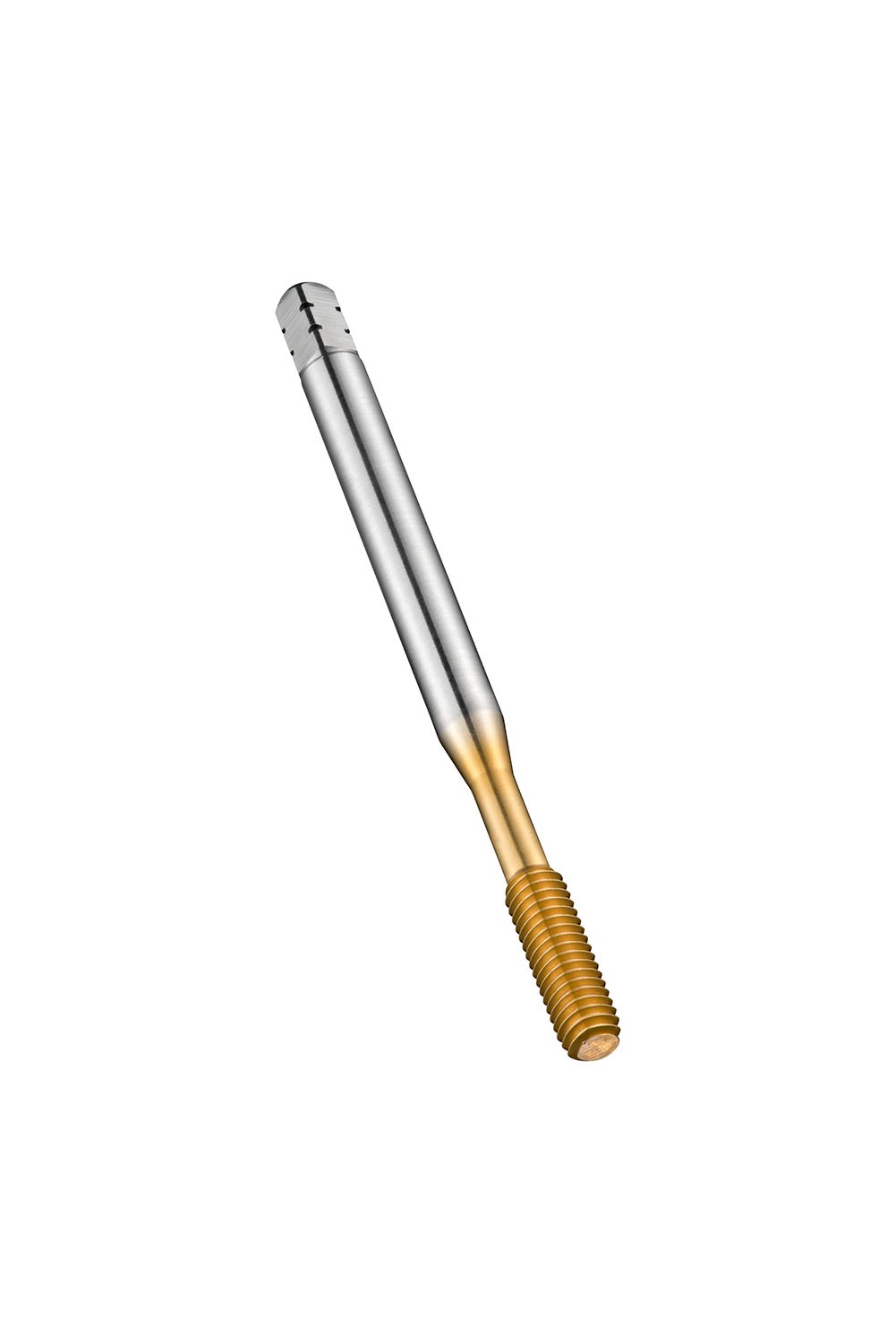

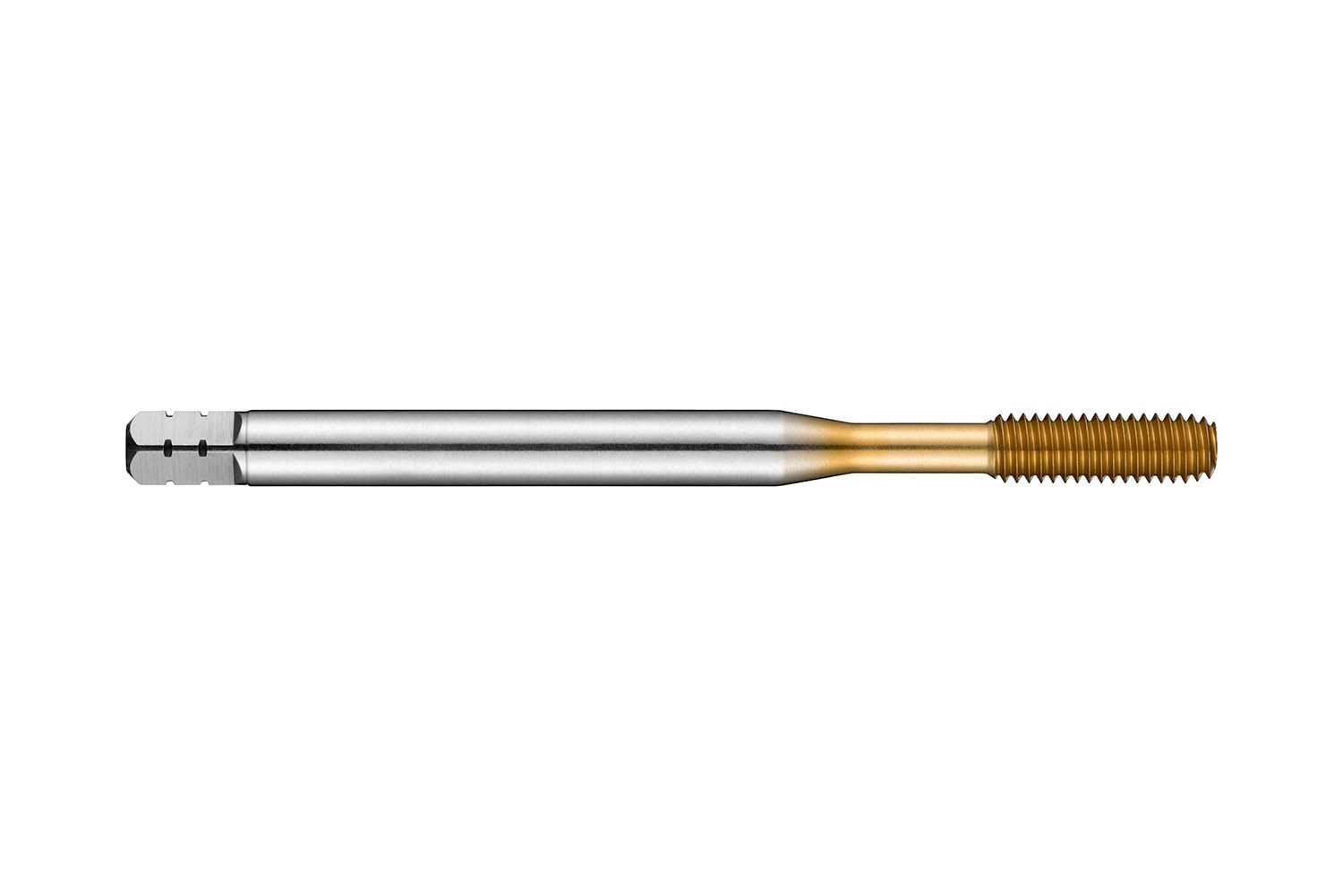

DORMER E296M10 HSS / HSCo DIN Taps

Description

Thread forming tap with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6GX class of fit, dimensions according to DIN 2174 standard with 10.0mm shank and 8.0mm square drive, cobalt based HSS-E with TiN coating for 3xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.1661 kg
Dimensions
barcode

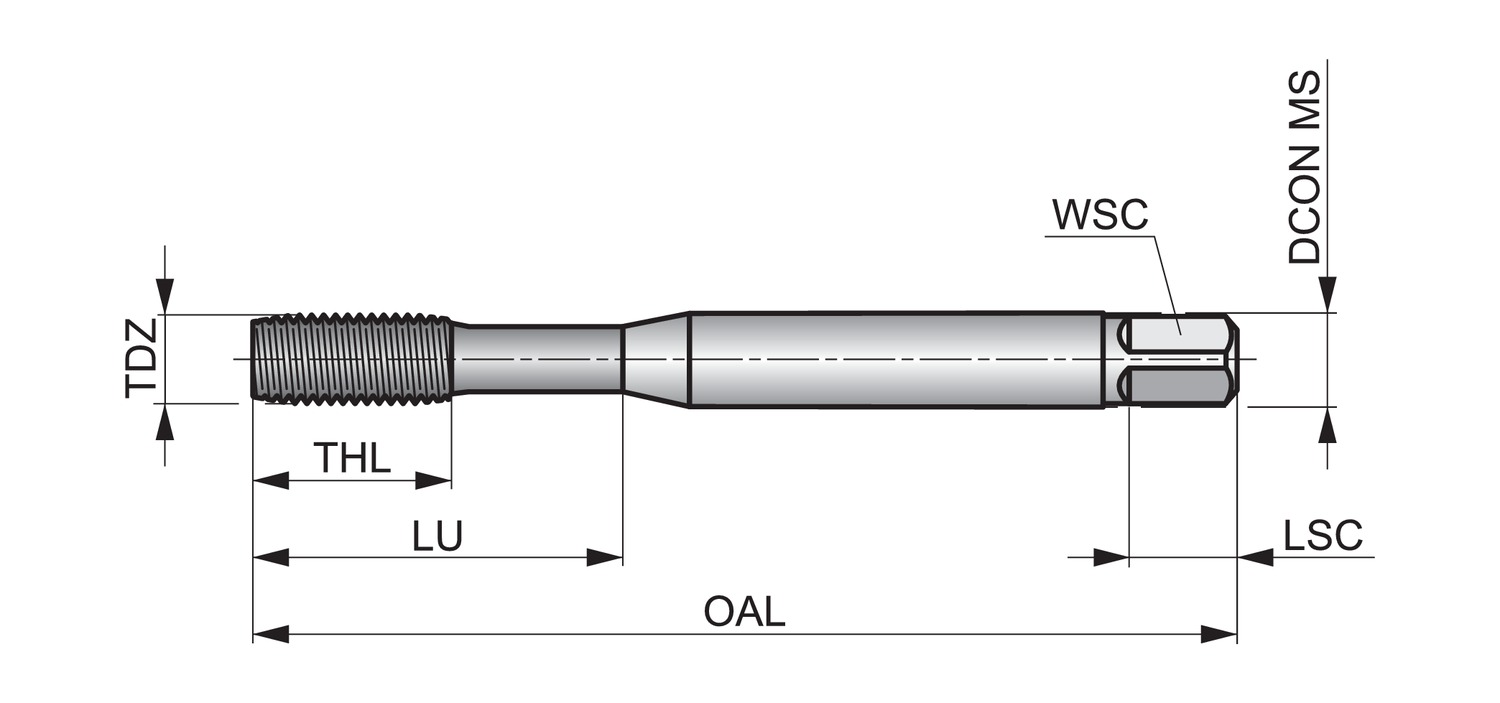

Additional Information	Description: Value Product name: E296M10 Product number (SAP): 86016052 EAN number: 7320760664018 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.7874 inch Connection diameter – inch (DCON MS): 0.3937 inch Connection diameter – millimeter (DCON MS): 10 mm Flute count (NOF): 5 Usable Length – inch (LU): 1.5354 inch Usable Length – millimeter (LU): 39 mm Clamping width – inch (WSC): 0.315 inch Clamping width – millimeter (WSC): 8 mm Clamping Length – inch (LCS): 0.4331 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.3661 inch Premachined hole diameter – millimeter (PHD): 9.3 mm Gross weight – grams: 59 ISO: E296M10 Ordering code ANSI: E296M10

Need Technical Advice?

Description

Additional information

Brand

DORMER
