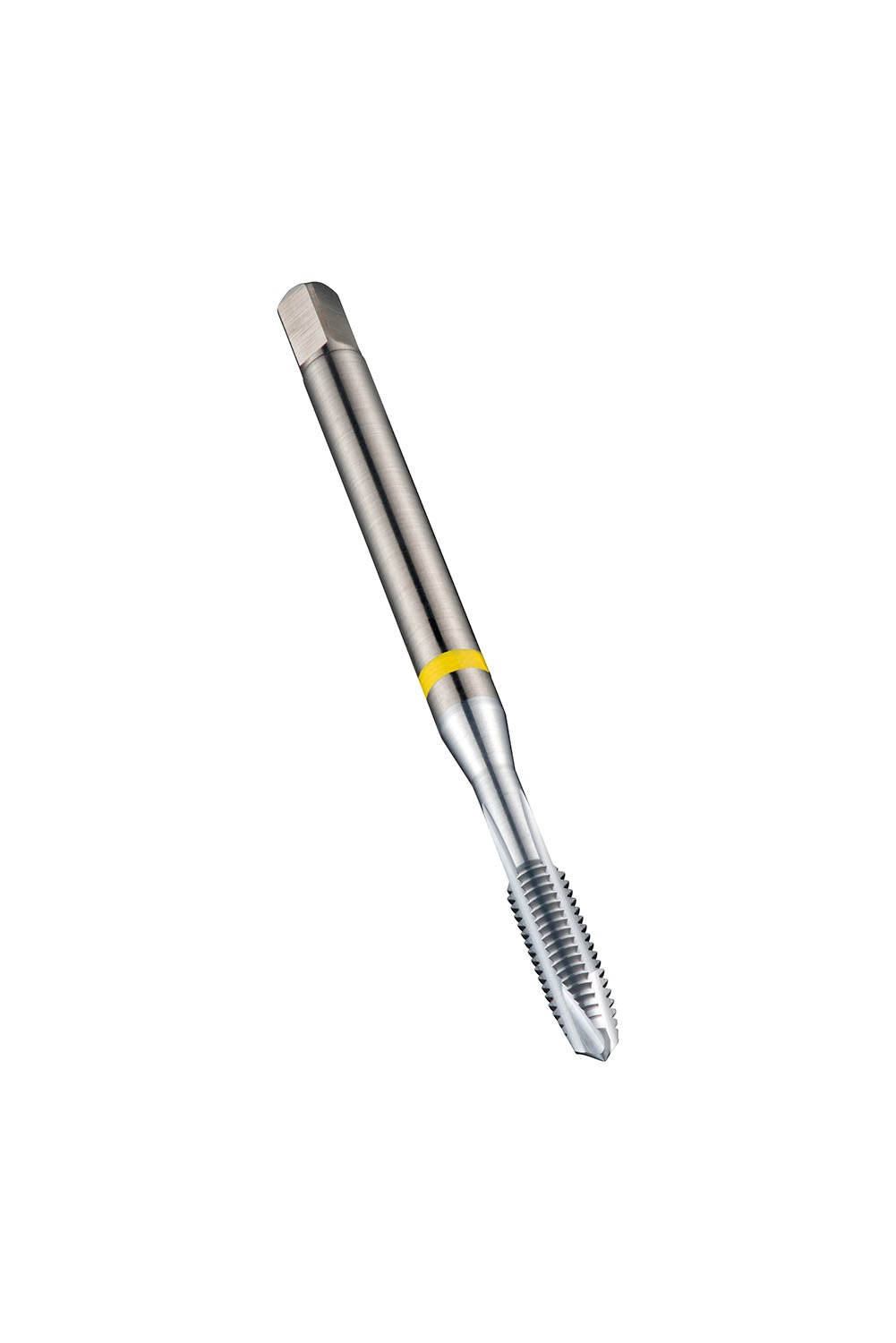

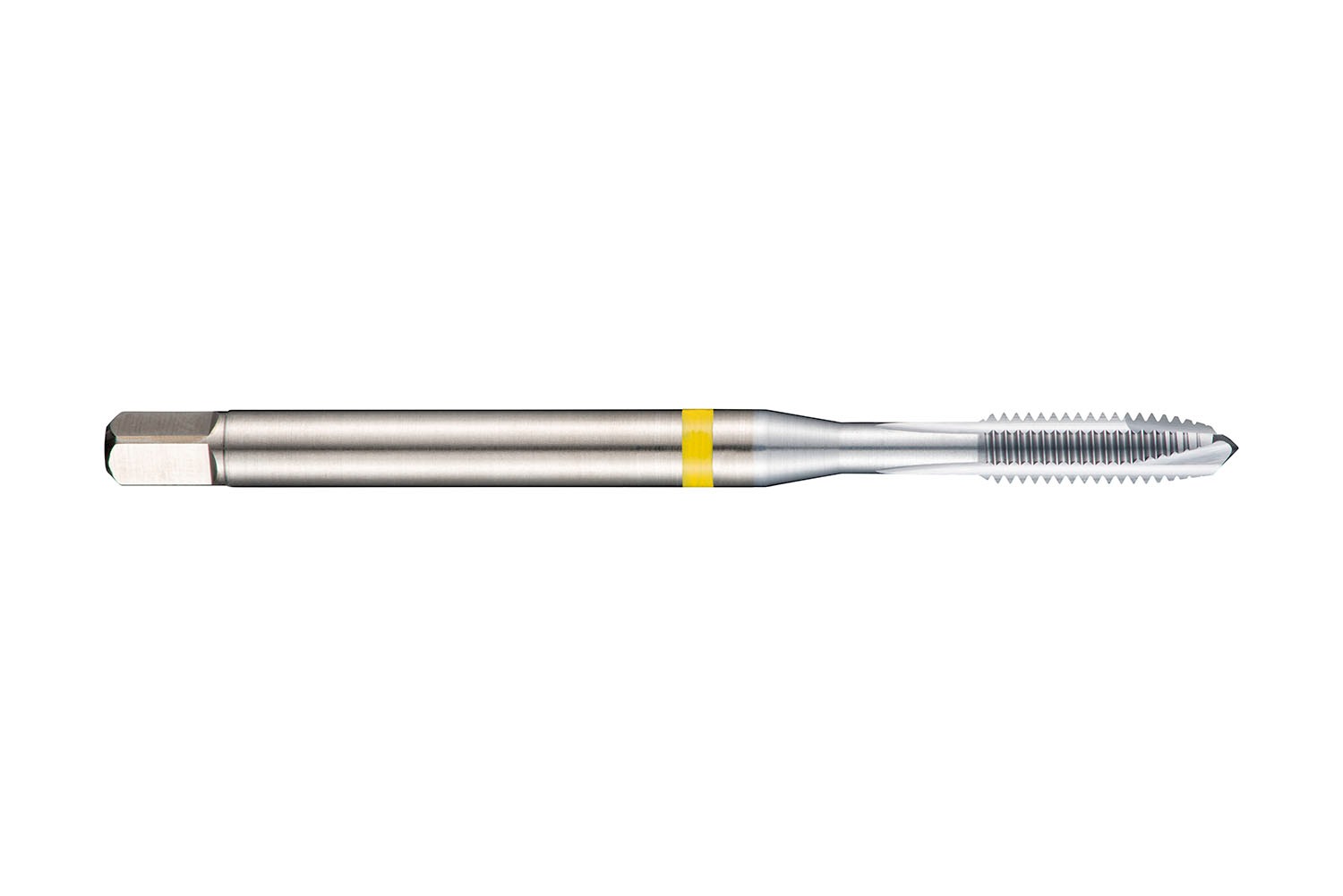

DORMER E297M16 HSS / HSCo DIN Taps

Description

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.1342 kg
Dimensions
barcode

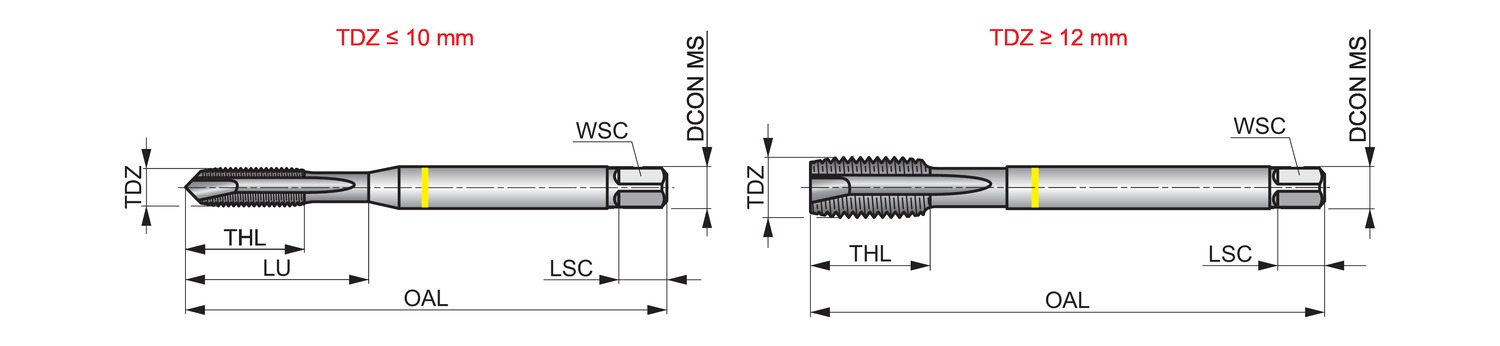

Additional Information	Description: Value Product name: E297M16 Product number (SAP): 86016061 EAN number: 7320760662809 Product Line: SHARK Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.3307 inch Threading length – millimeter (THL): 25 mm Threading length – inch (THL): 0.9843 inch Connection diameter – inch (DCON MS): 0.4724 inch Connection diameter – millimeter (DCON MS): 12 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.5512 inch Premachined hole diameter – millimeter (PHD): 14 mm Gross weight – grams: 99.4 ISO: E297M16 Ordering code ANSI: E297M16
