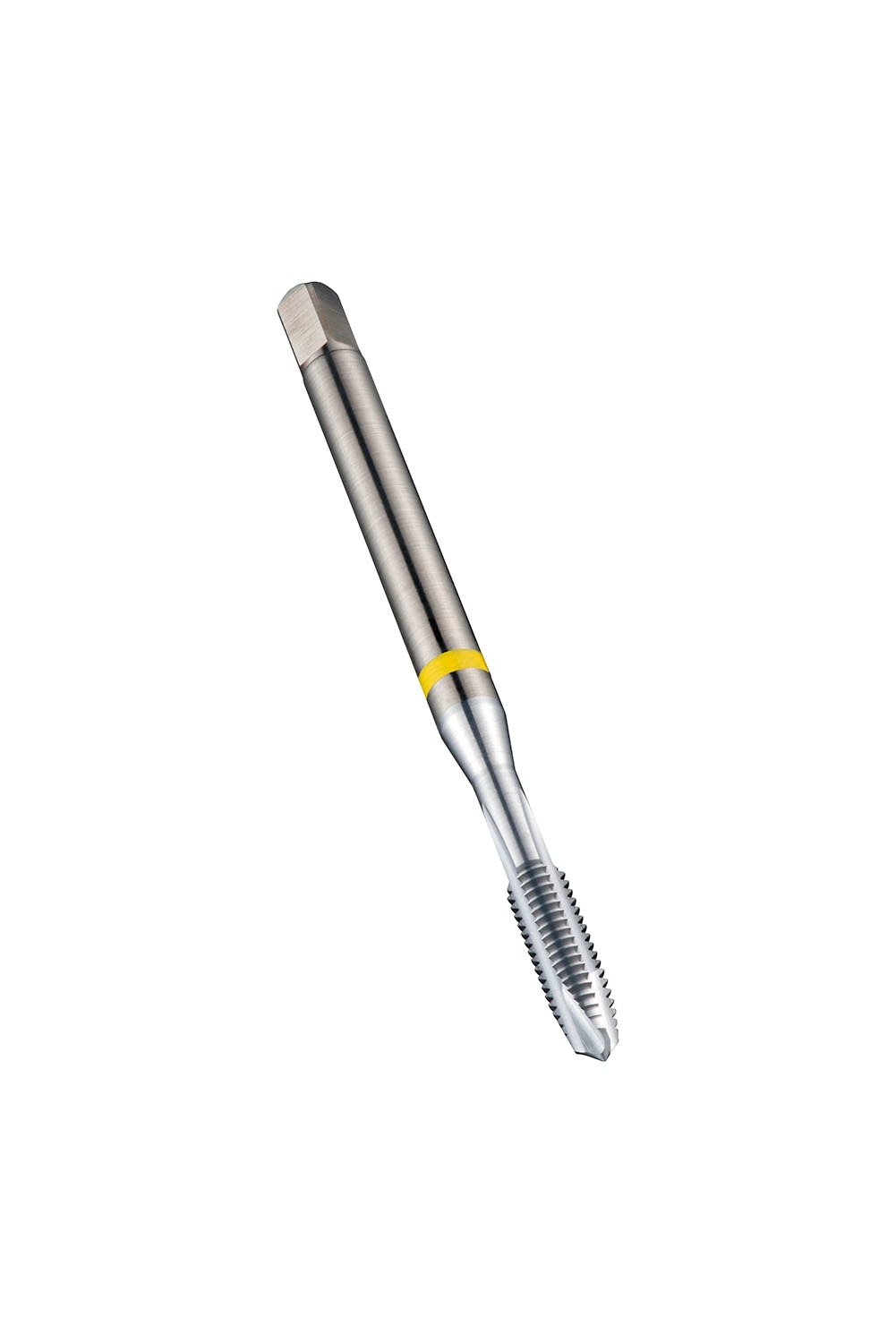

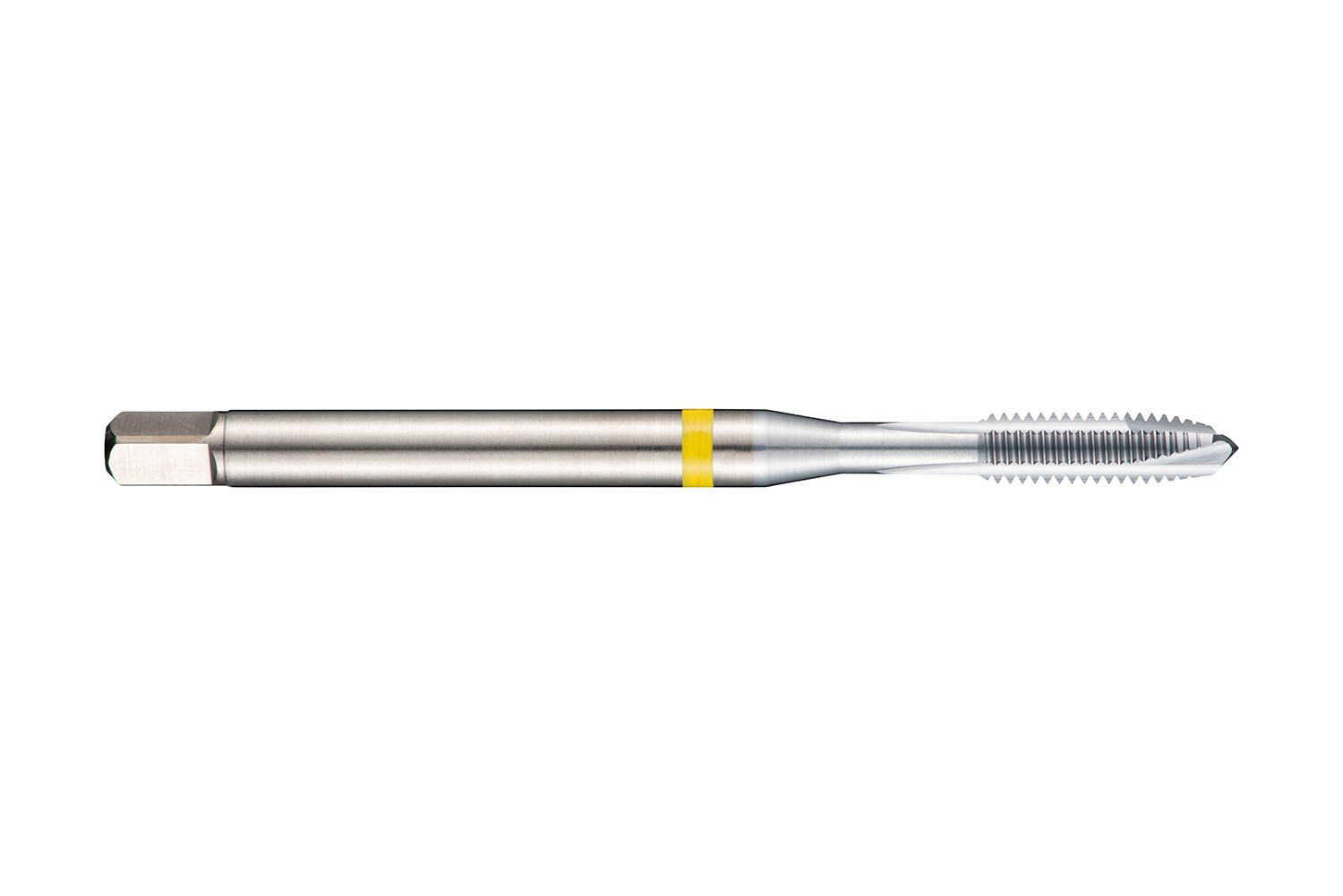

DORMER E297M18 HSS / HSCo DIN Taps

Description: Value
Product name: E297M18
Product number (SAP): 86016062
EAN number: 7320760662816
Product Line: SHARK

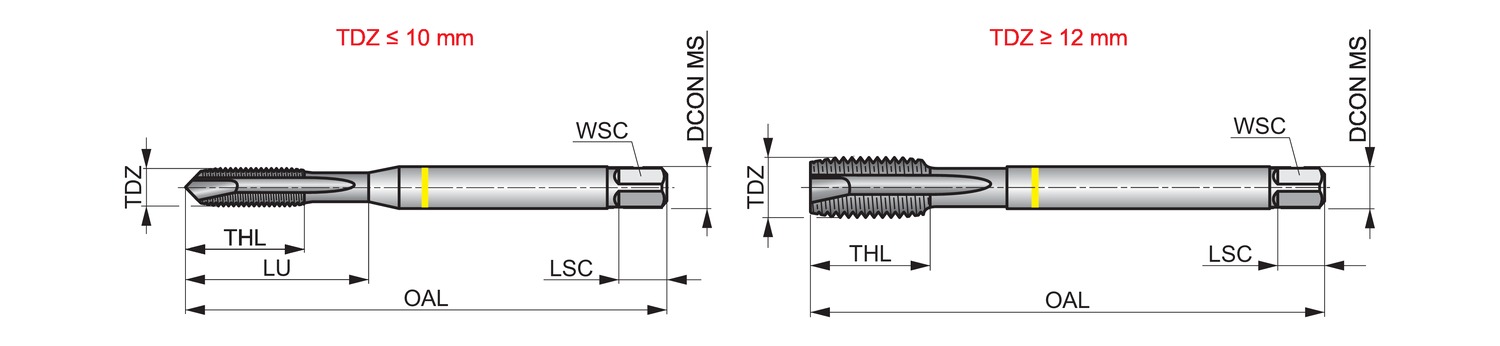

Thread diameter size (TDZ): 18
Thread pitch – millimeter (TP): 2.5 mm
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 0.5512 inch
Connection diameter – millimeter (DCON MS): 14 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.4331 inch
Clamping width – millimeter (WSC): 11 mm
Clamping Length – inch (LCS): 0.5512 inch
Clamping Length – millimeter (LSC): 14 mm
Premachined hole diameter – inch (PHD): 0.6102 inch
Premachined hole diameter – millimeter (PHD): 15.5 mm
Gross weight – grams: 152.1
ISO: E297M18
Ordering code ANSI: E297M18
