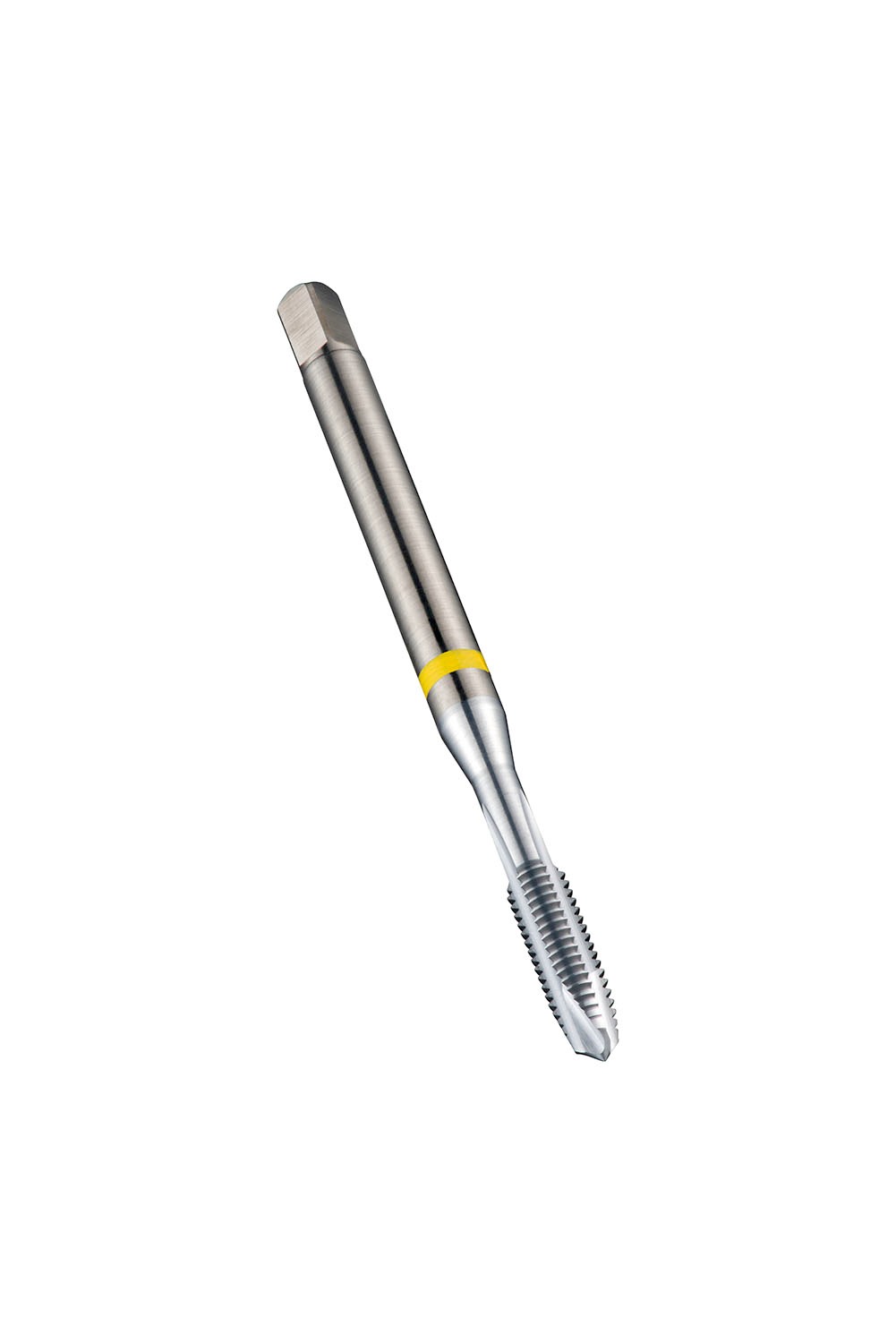

DORMER E297M22 HSS / HSCo DIN Taps

Description

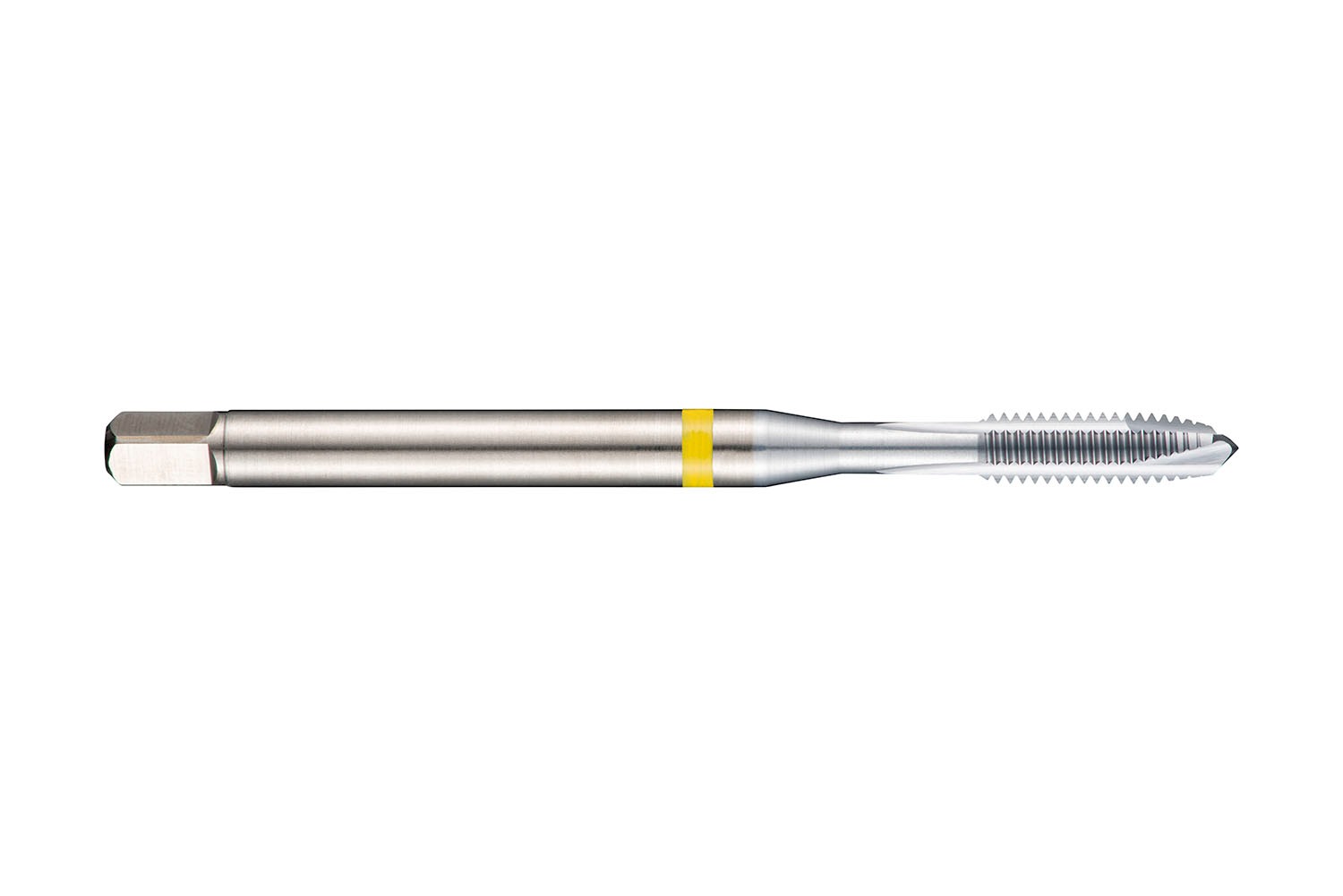

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.2904 kg
Dimensions
barcode

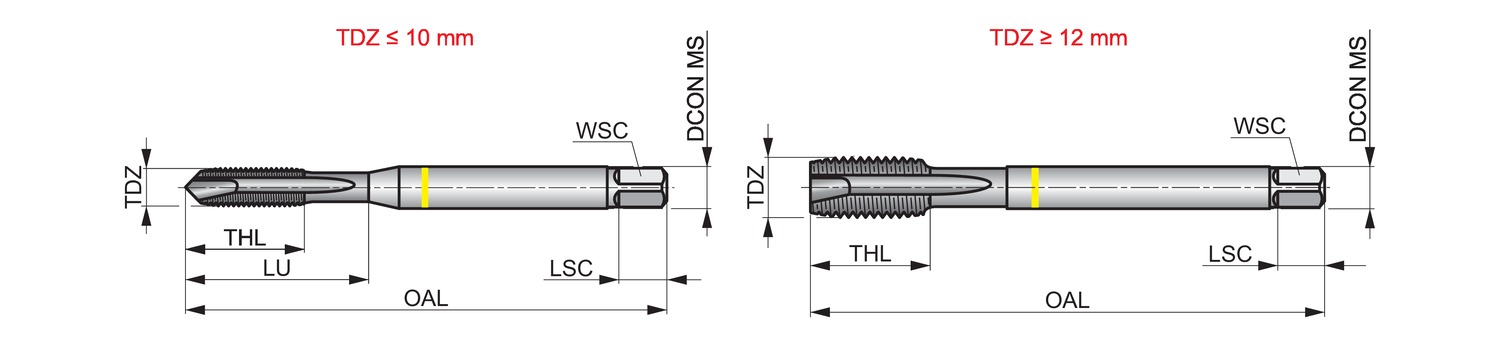

Additional Information	Description: Value Product name: E297M22 Product number (SAP): 86016064 EAN number: 7320760662830 Product Line: SHARK Thread diameter size (TDZ): 22 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.5118 inch Threading length – millimeter (THL): 34 mm Threading length – inch (THL): 1.3386 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.7677 inch Premachined hole diameter – millimeter (PHD): 19.5 mm Gross weight – grams: 274.5 ISO: E297M22 Ordering code ANSI: E297M22
