DORMER E297M24 HSS / HSCo DIN Taps

Description

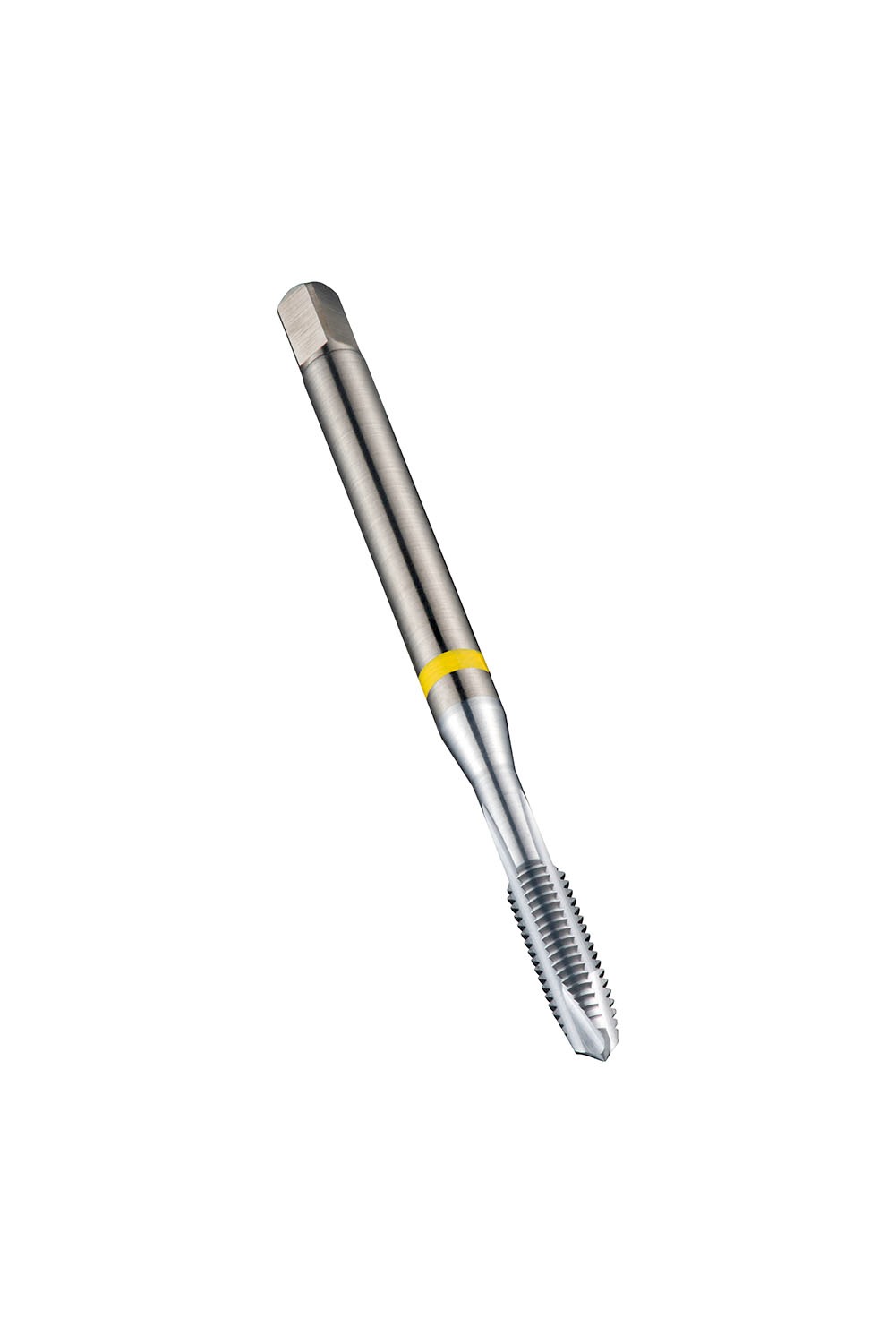

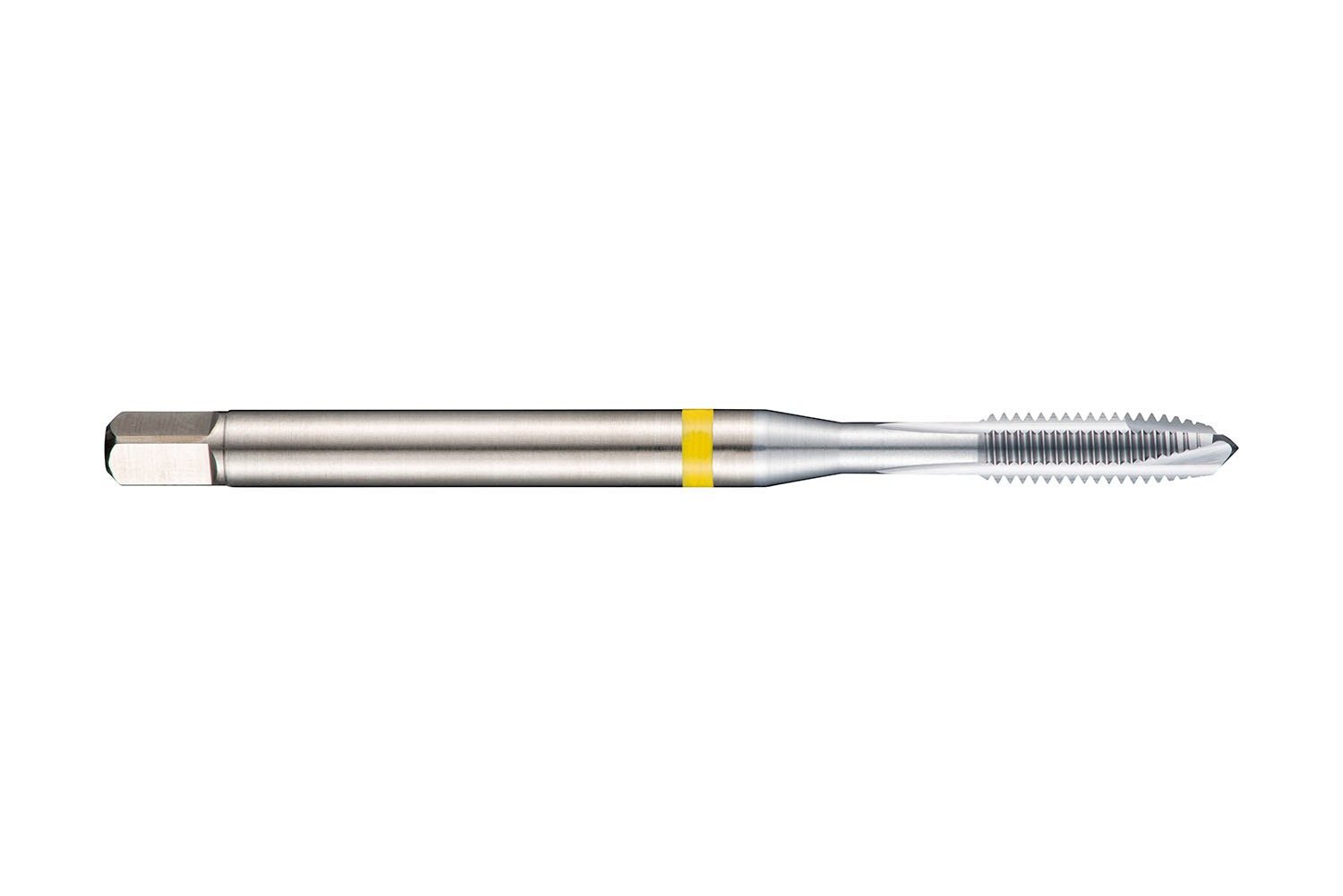

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with flash chorme surface finish for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.2706 kg
Dimensions
barcode

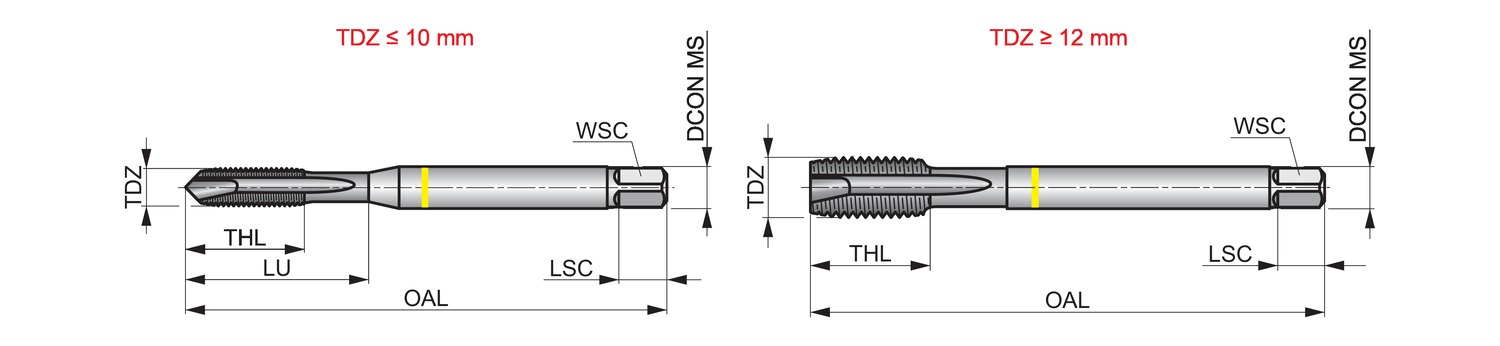

Additional Information	Description: Value Product name: E297M24 Product number (SAP): 86016065 EAN number: 7320760662847 Product Line: SHARK Thread diameter size (TDZ): 24 Thread pitch – millimeter (TP): 3 mm Overall length – millimeter (OAL): 160 mm Overall length – inch (OAL): 6.2992 inch Threading length – millimeter (THL): 38 mm Threading length – inch (THL): 1.4961 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.8268 inch Premachined hole diameter – millimeter (PHD): 21 mm Gross weight – grams: 330.6 ISO: E297M24 Ordering code ANSI: E297M24

Need Technical Advice?

Description

Additional information

Brand

DORMER
