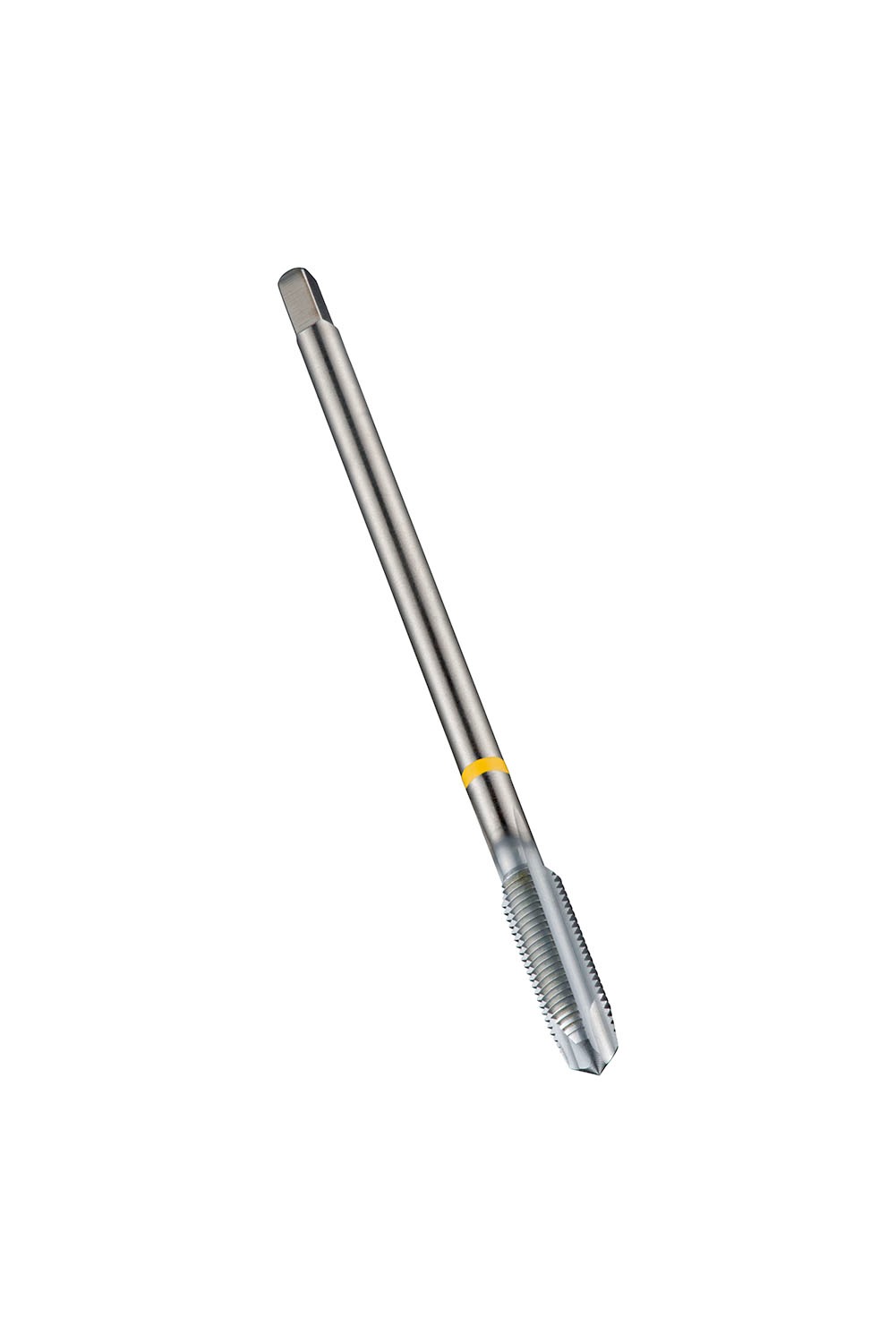

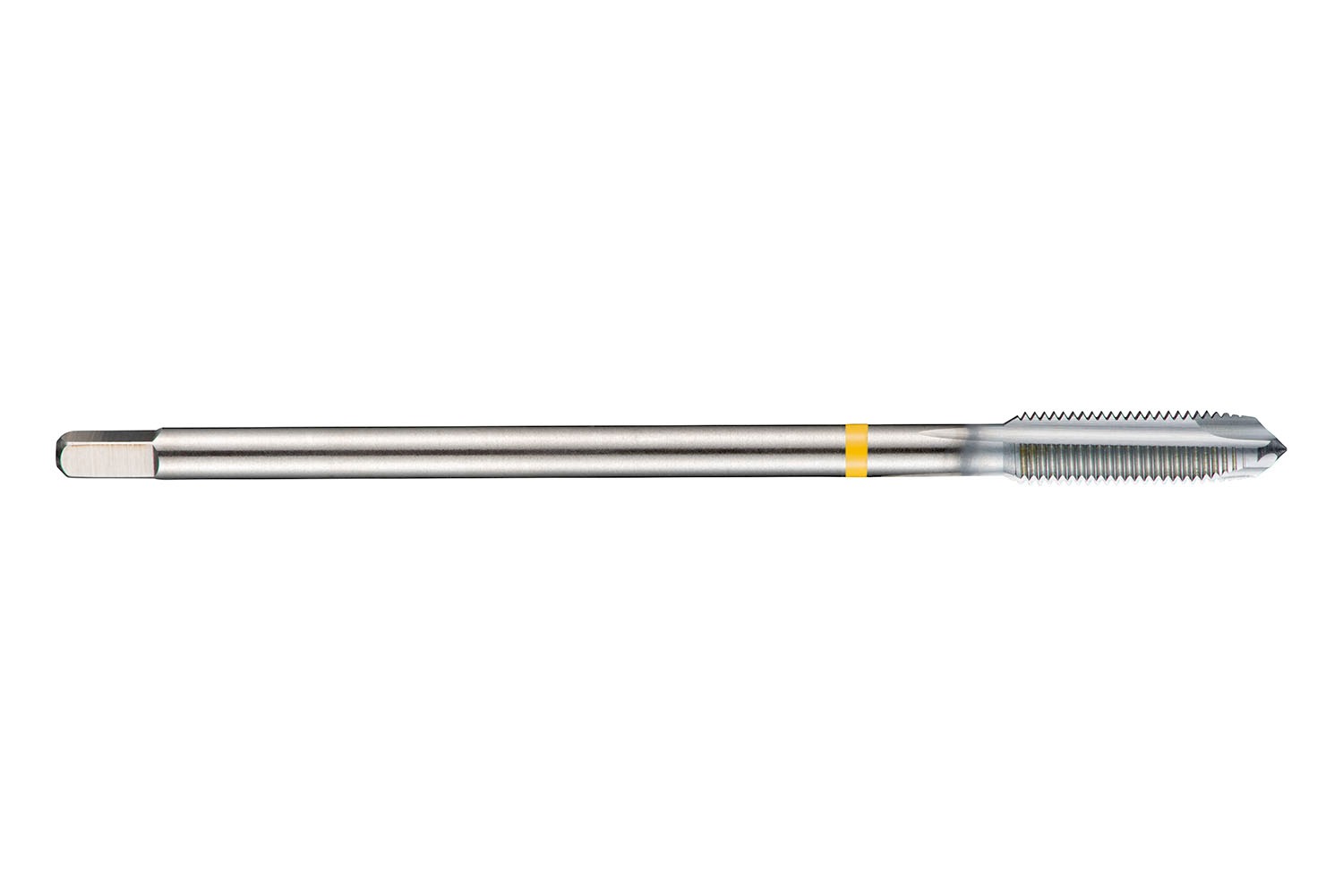

DORMER E299M16X1.0 HSS / HSCo DIN Taps

Description: Value
Product name: E299M16X1.0
Product number (SAP): 86016097
EAN number: 7320760663165
Product Line: SHARK

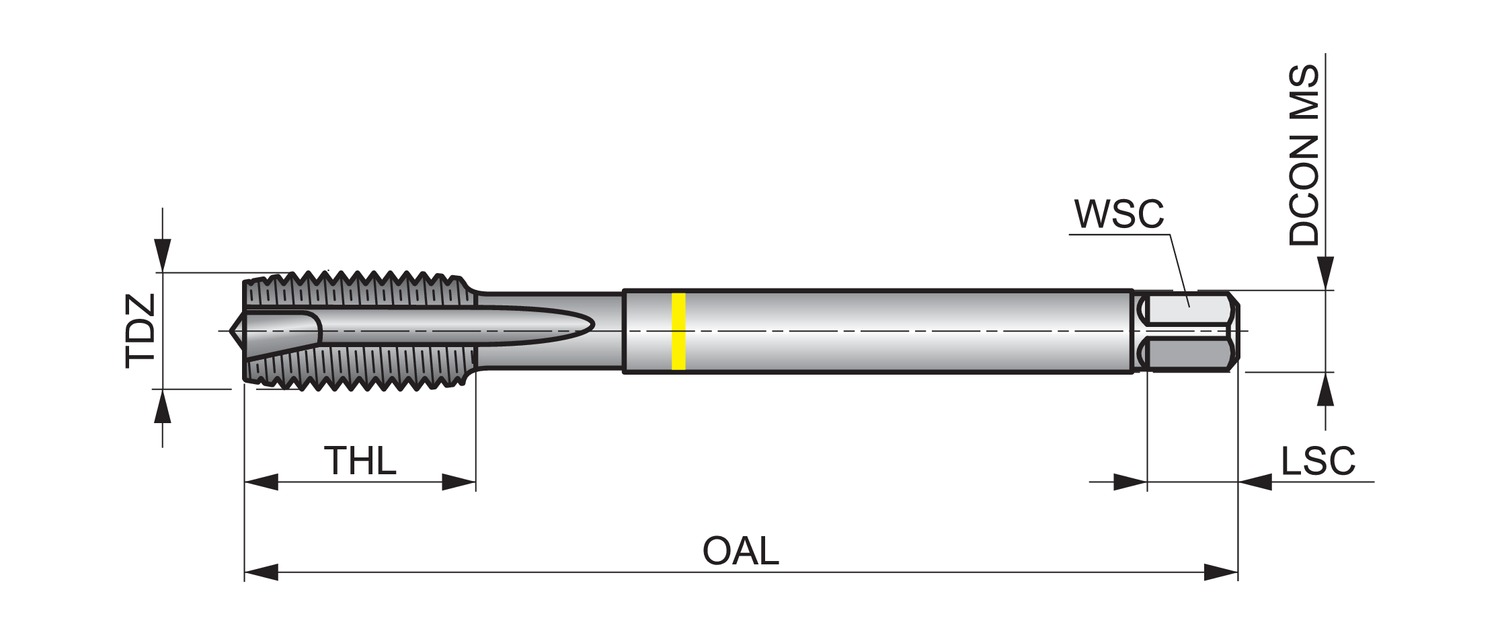

Thread diameter size (TDZ): 16
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 21 mm
Threading length – inch (THL): 0.8268 inch
Connection diameter – inch (DCON MS): 0.4724 inch
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.5906 inch
Premachined hole diameter – millimeter (PHD): 15 mm
Gross weight – grams: 94.1
ISO: E299M16X1.0
Ordering code ANSI: E299M16X1.0
