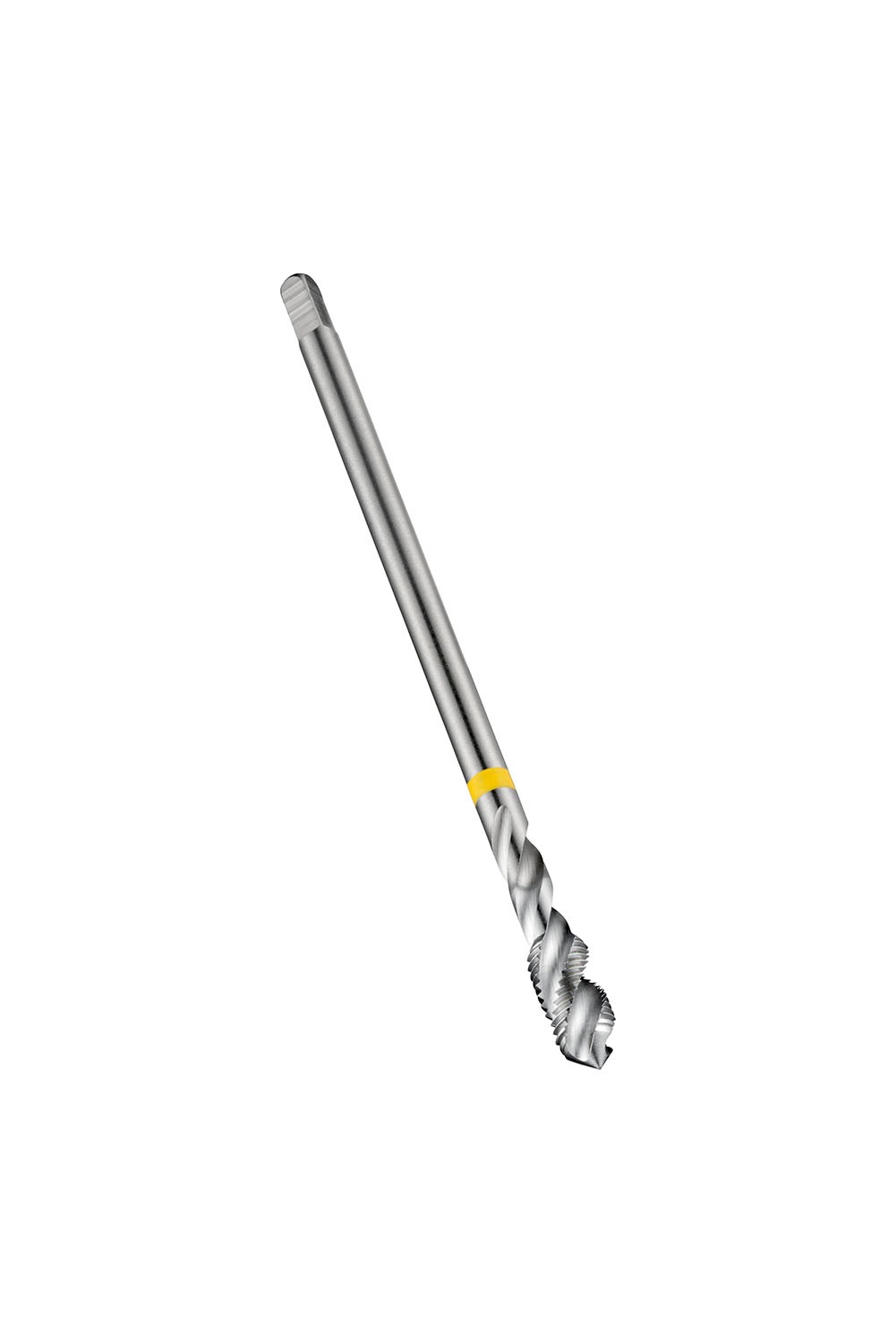

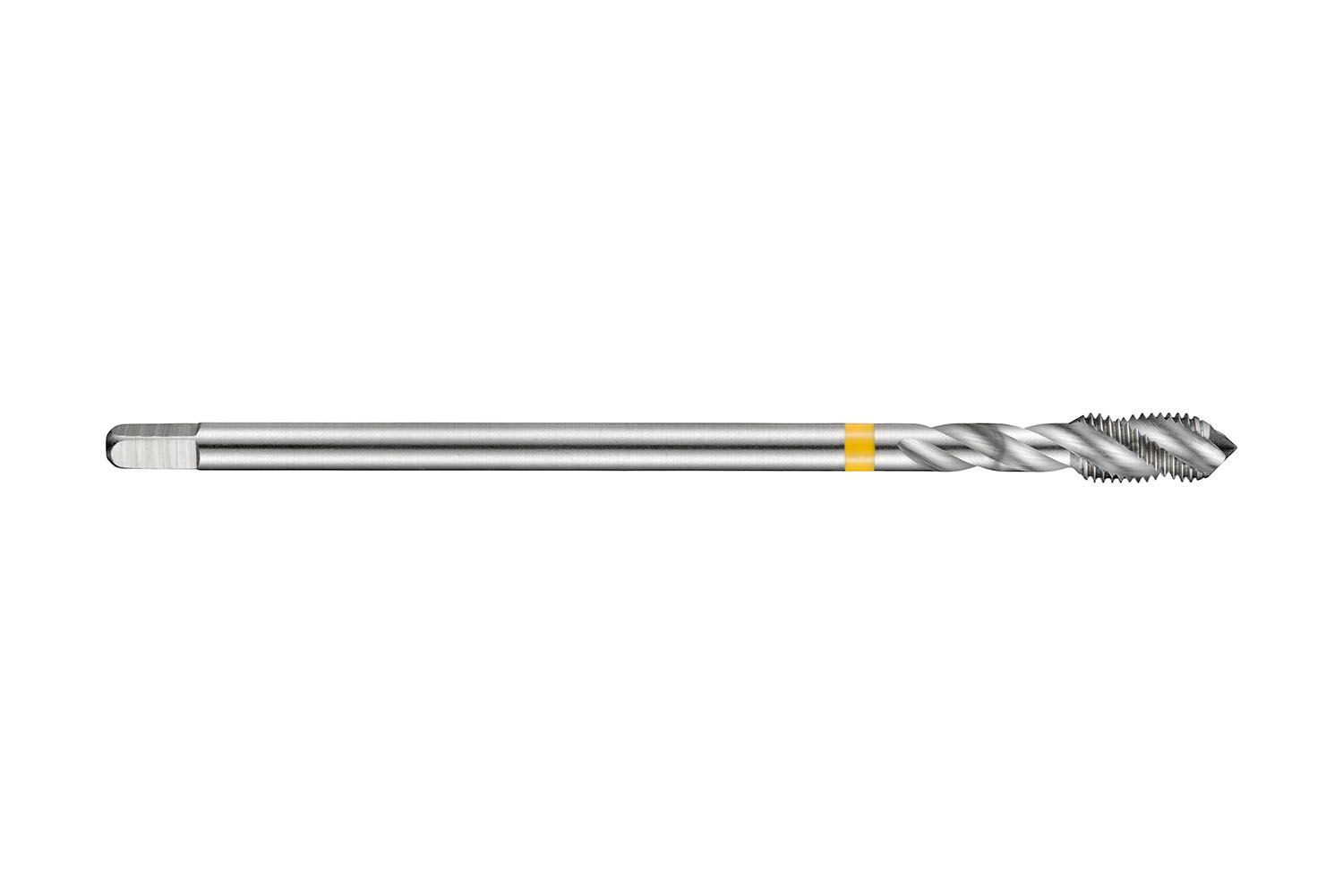

DORMER E300M12X1.25 HSS / HSCo DIN Taps

Description: Value
Product name: E300M12X1.25
Product number (SAP): 86016116
EAN number: 7320760663356
Product Line: SHARK

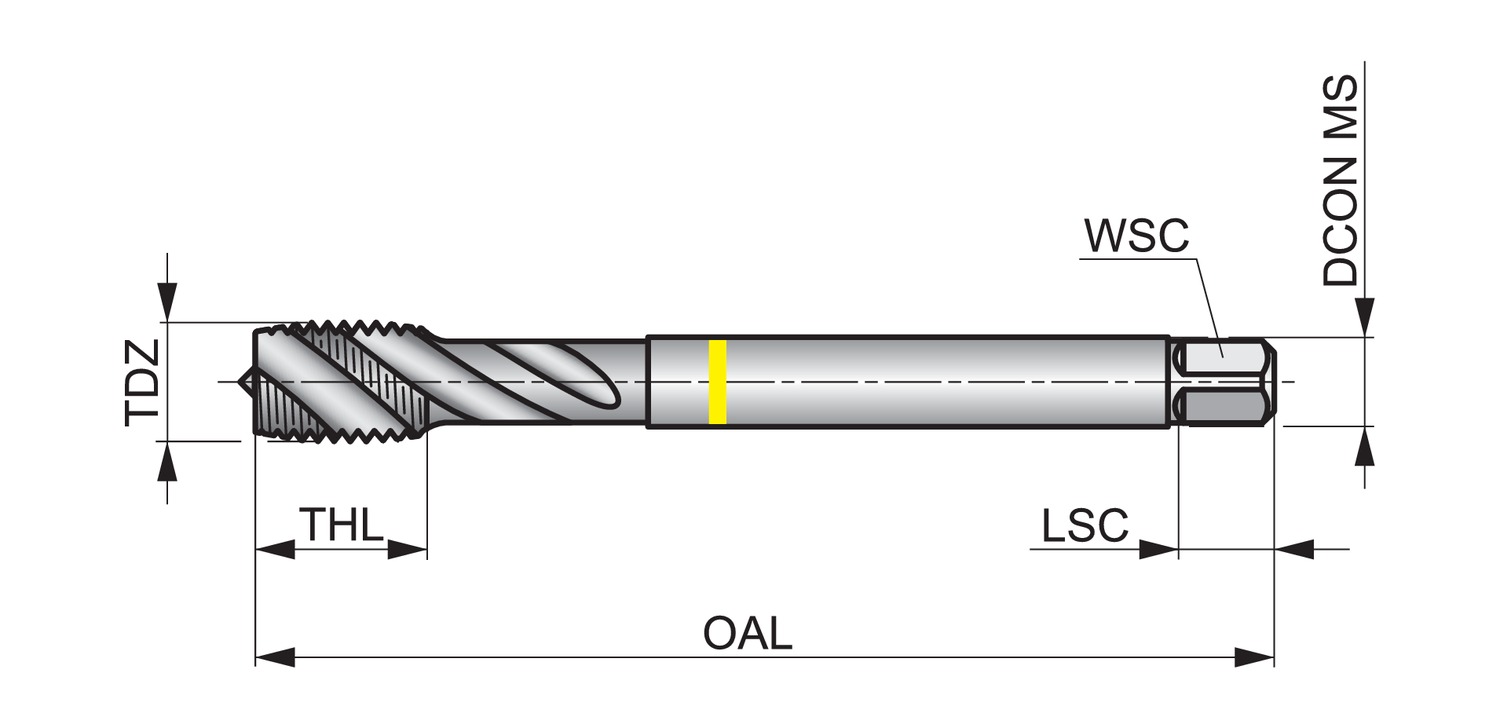

Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 13 mm
Threading length – inch (THL): 0.5118 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4252 inch
Premachined hole diameter – millimeter (PHD): 10.8 mm
Gross weight – grams: 52.8
ISO: E300M12X1.25
Ordering code ANSI: E300M12X1.25
