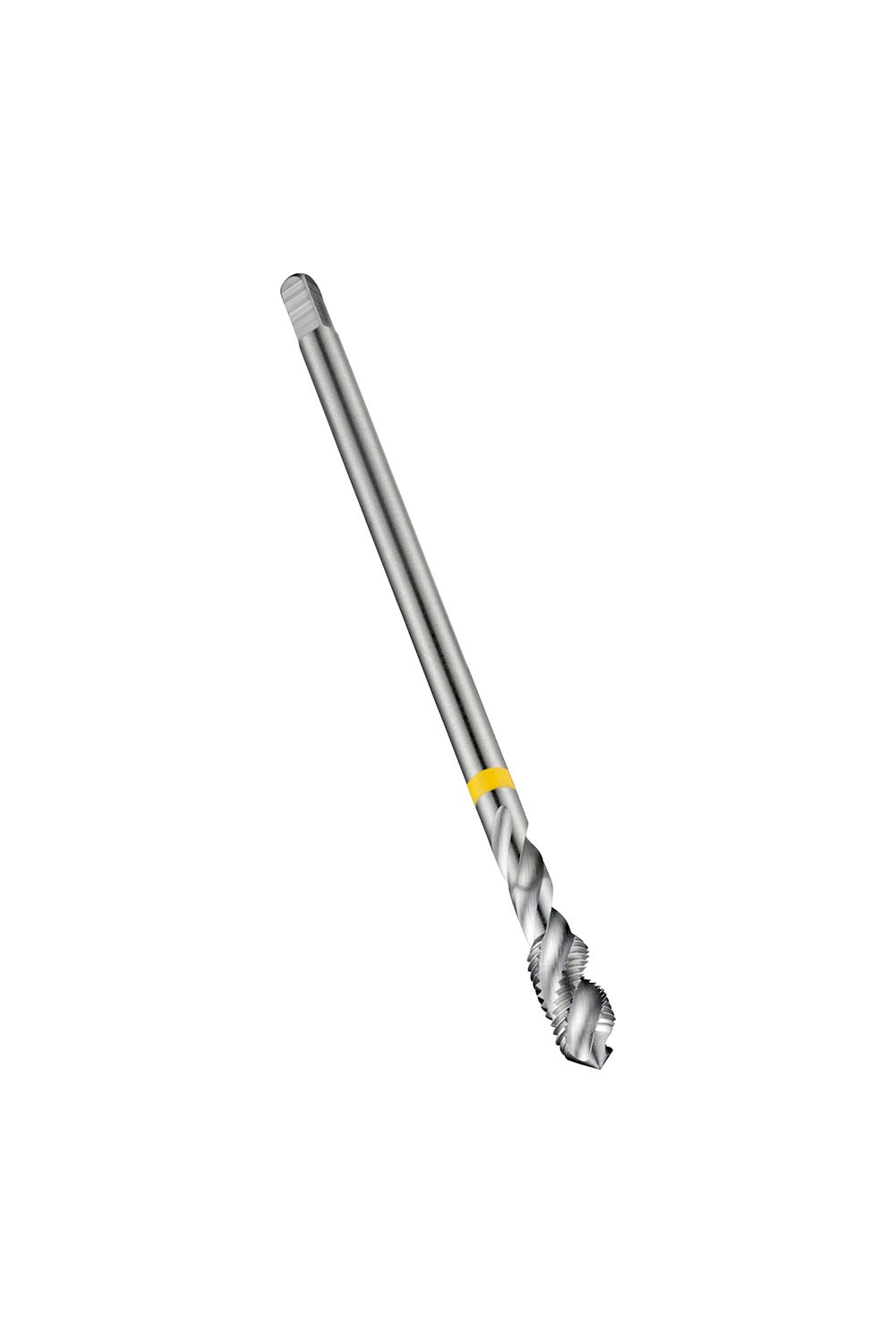

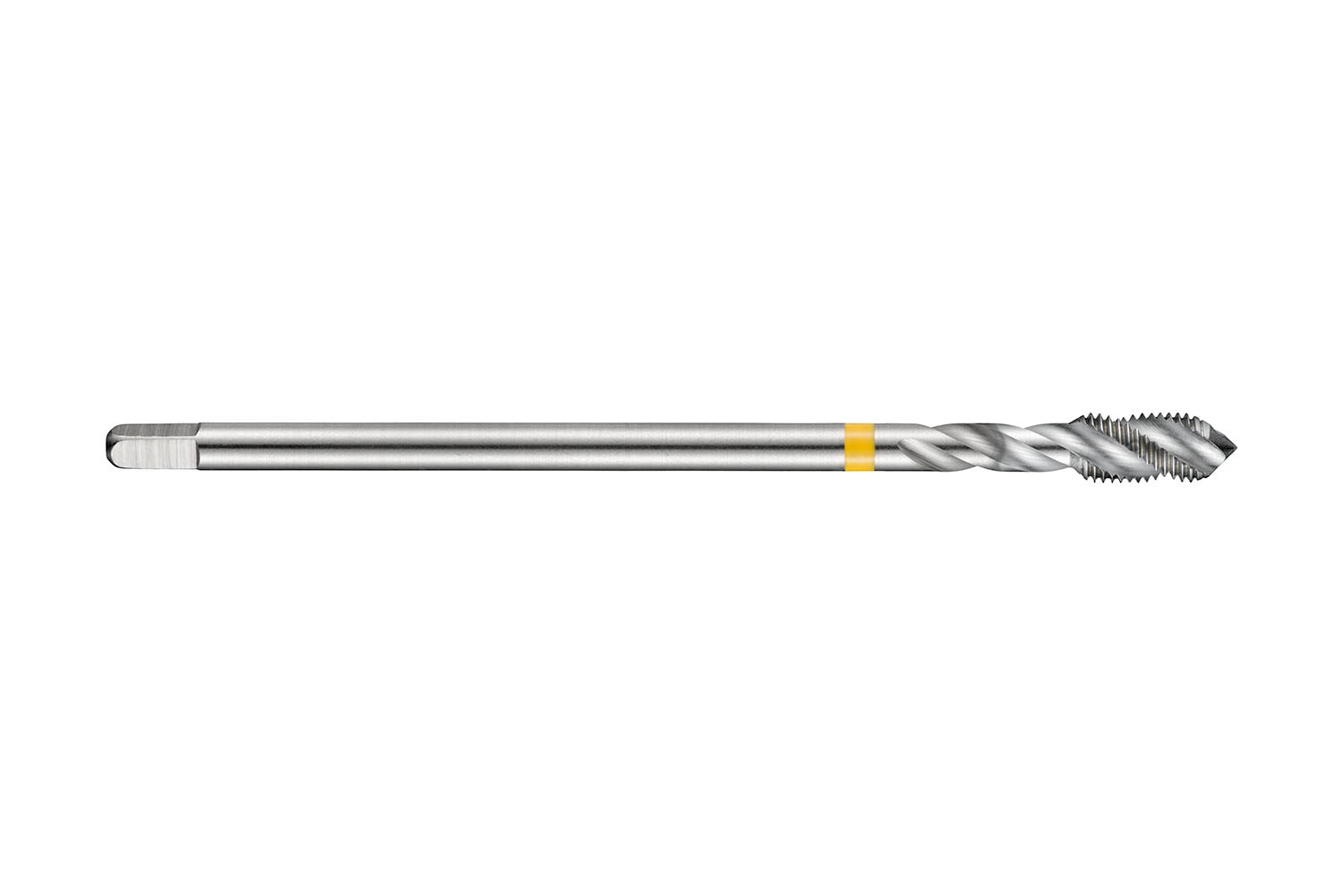

DORMER E300M30X2.0 HSS / HSCo DIN Taps

Description

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M30 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with flash chorme surface finish and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.5852 kg
Dimensions
barcode

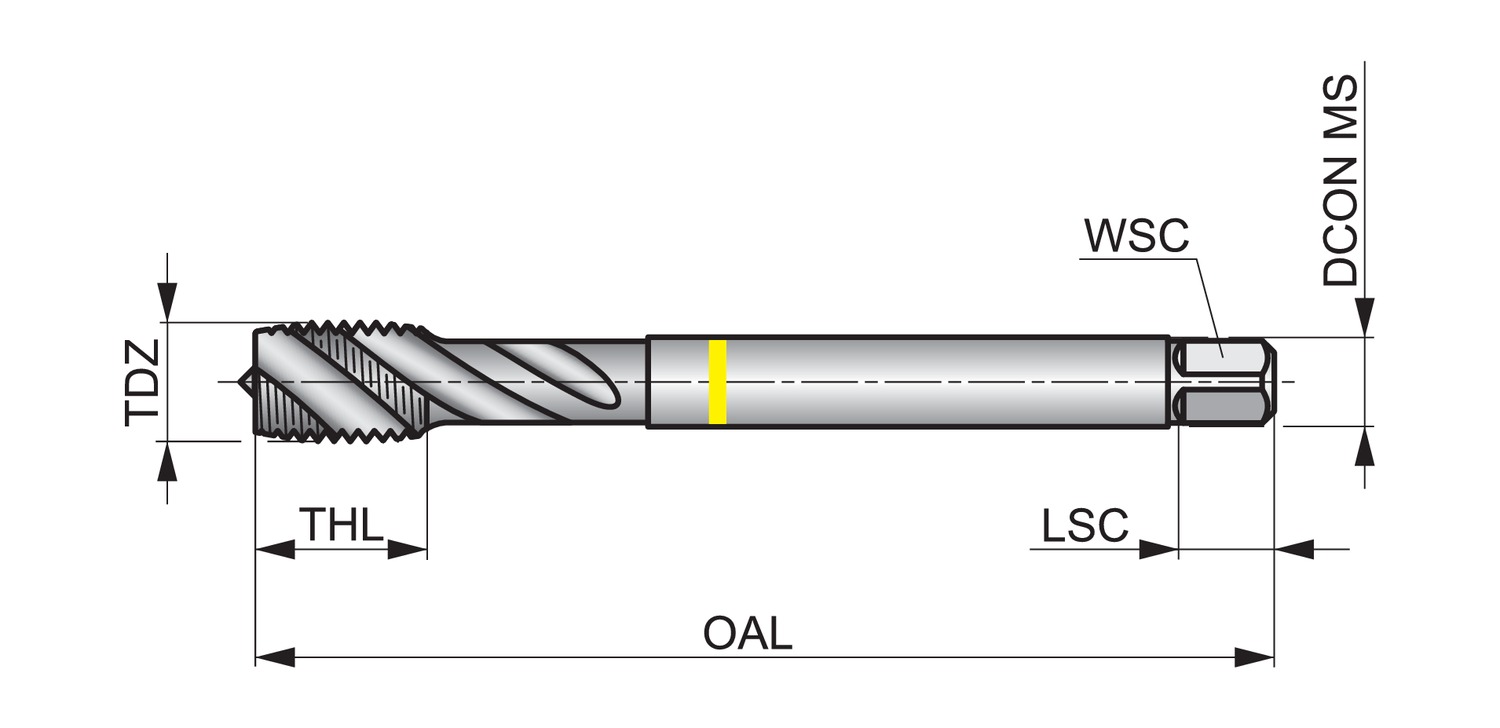

Additional Information	Description: Value Product name: E300M30X2.0 Product number (SAP): 86016130 EAN number: 7320760663493 Product Line: SHARK Thread diameter size (TDZ): 30 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 150 mm Overall length – inch (OAL): 5.9055 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.7874 inch Connection diameter – inch (DCON MS): 0.8661 inch Connection diameter – millimeter (DCON MS): 22 mm Flute count (NOF): 5 Clamping width – inch (WSC): 0.7087 inch Clamping width – millimeter (WSC): 18 mm Clamping Length – inch (LCS): 0.8268 inch Clamping Length – millimeter (LSC): 21 mm Premachined hole diameter – inch (PHD): 1.1024 inch Premachined hole diameter – millimeter (PHD): 28 mm Gross weight – grams: 443 ISO: E300M30X2.0 Ordering code ANSI: E300M30X2.0
