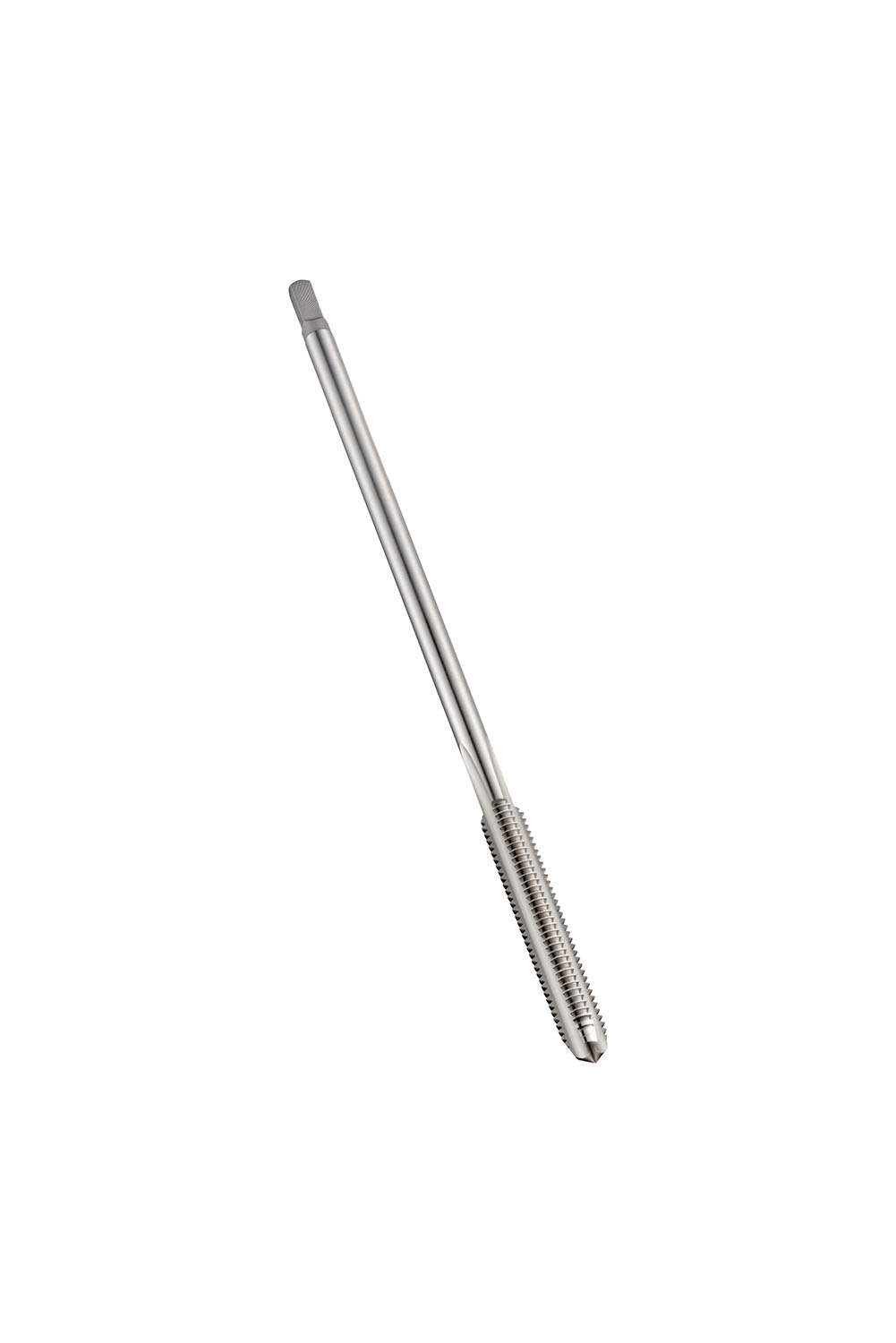

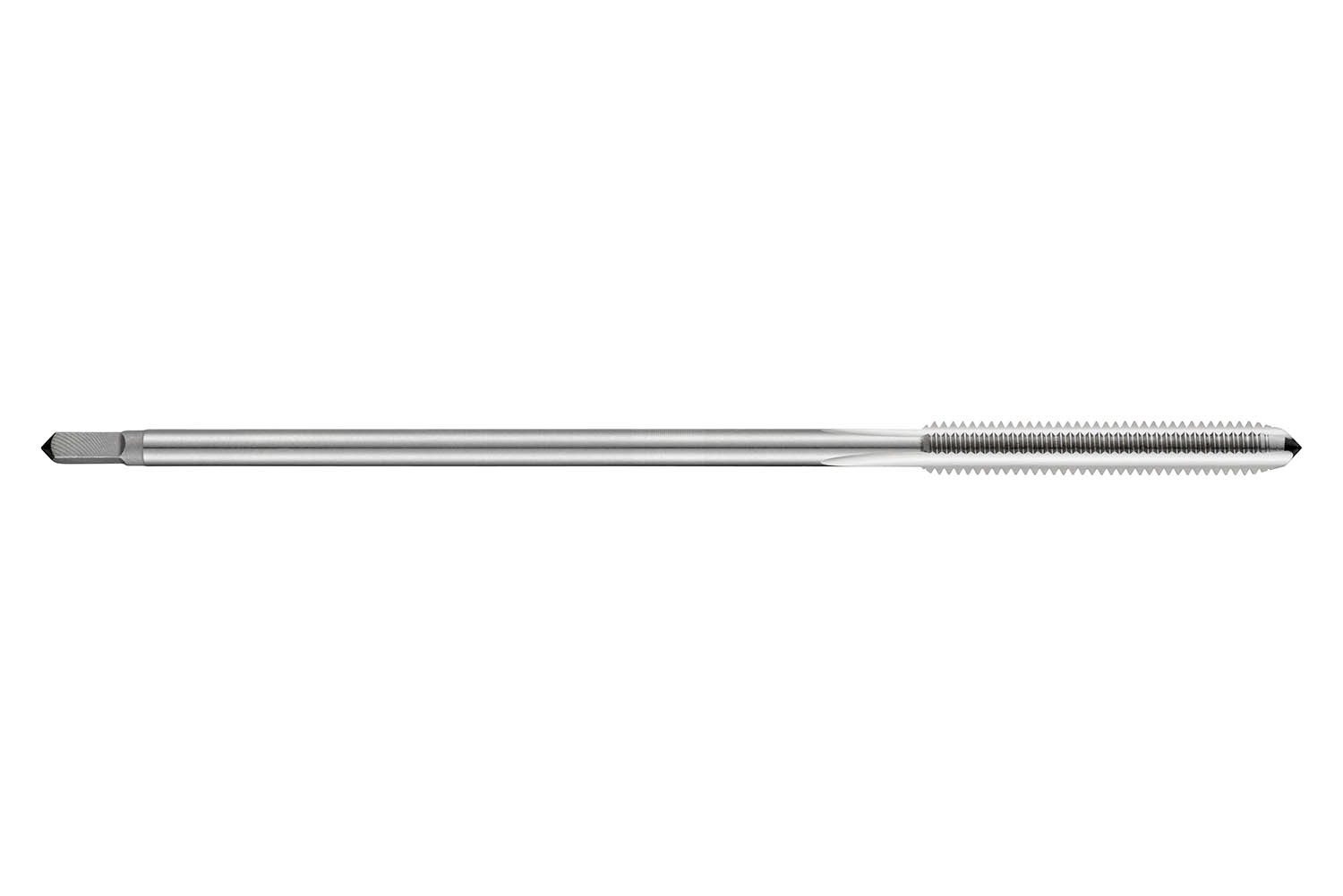

DORMER E303M10NO3 HSS / HSCo DIN Taps

Description: Value
Product name: E303M10NO3
Product number (SAP): 86016137
EAN number: 7320760090251

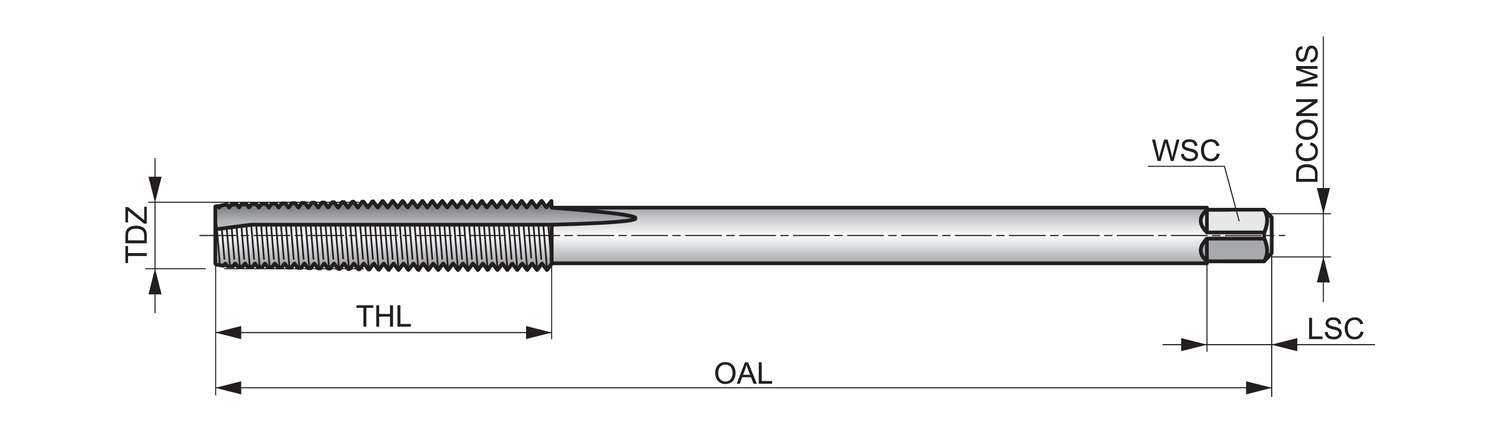

Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 45 mm
Threading length – inch (THL): 1.7717 inch
Connection diameter – inch (DCON MS): 0.2756 inch
Connection diameter – millimeter (DCON MS): 7 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2165 inch
Clamping width – millimeter (WSC): 5.5 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.3346 inch
Premachined hole diameter – millimeter (PHD): 8.5 mm
Gross weight – grams: 53.2
ISO: E303M10NO3
Ordering code ANSI: E303M10NO3
