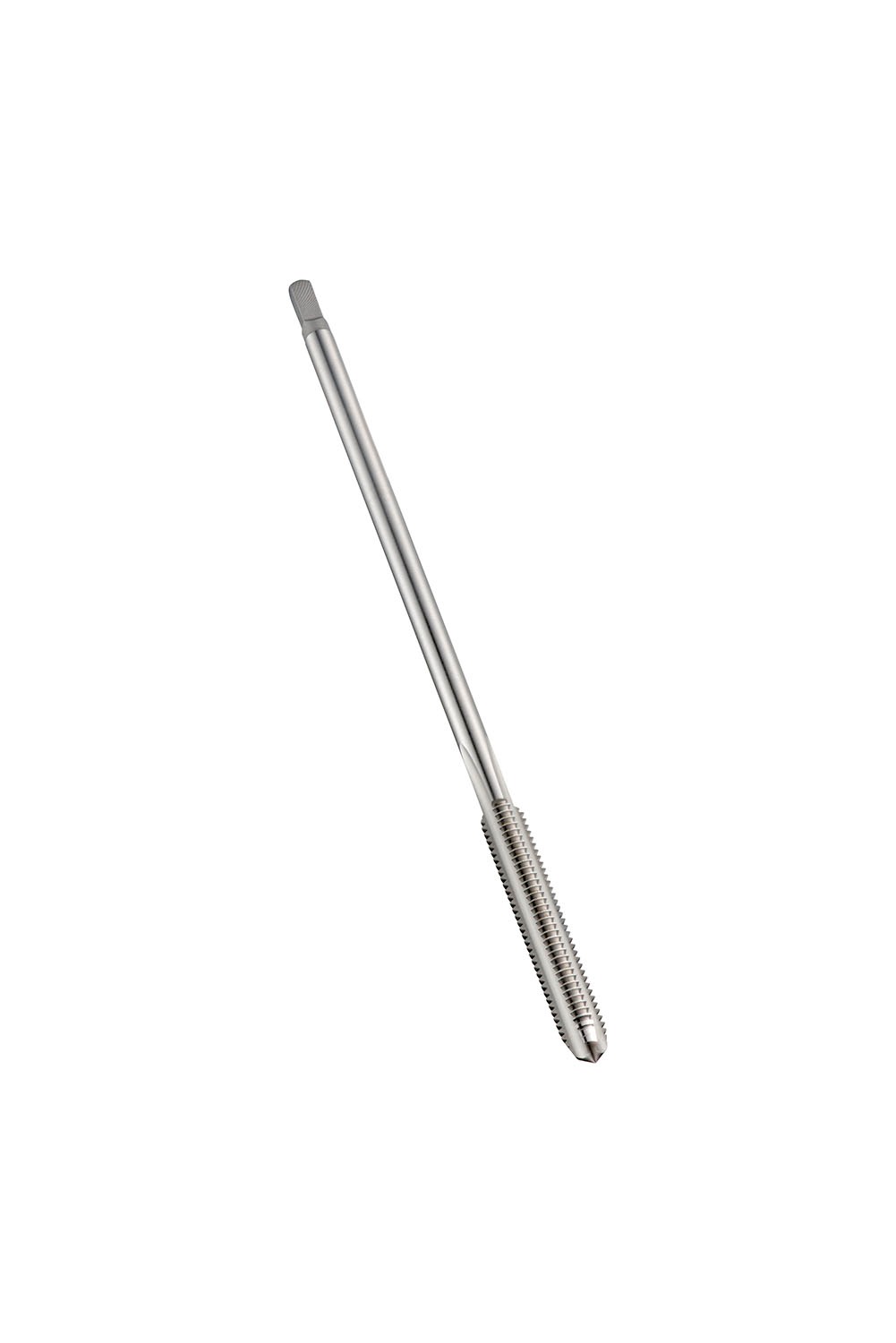

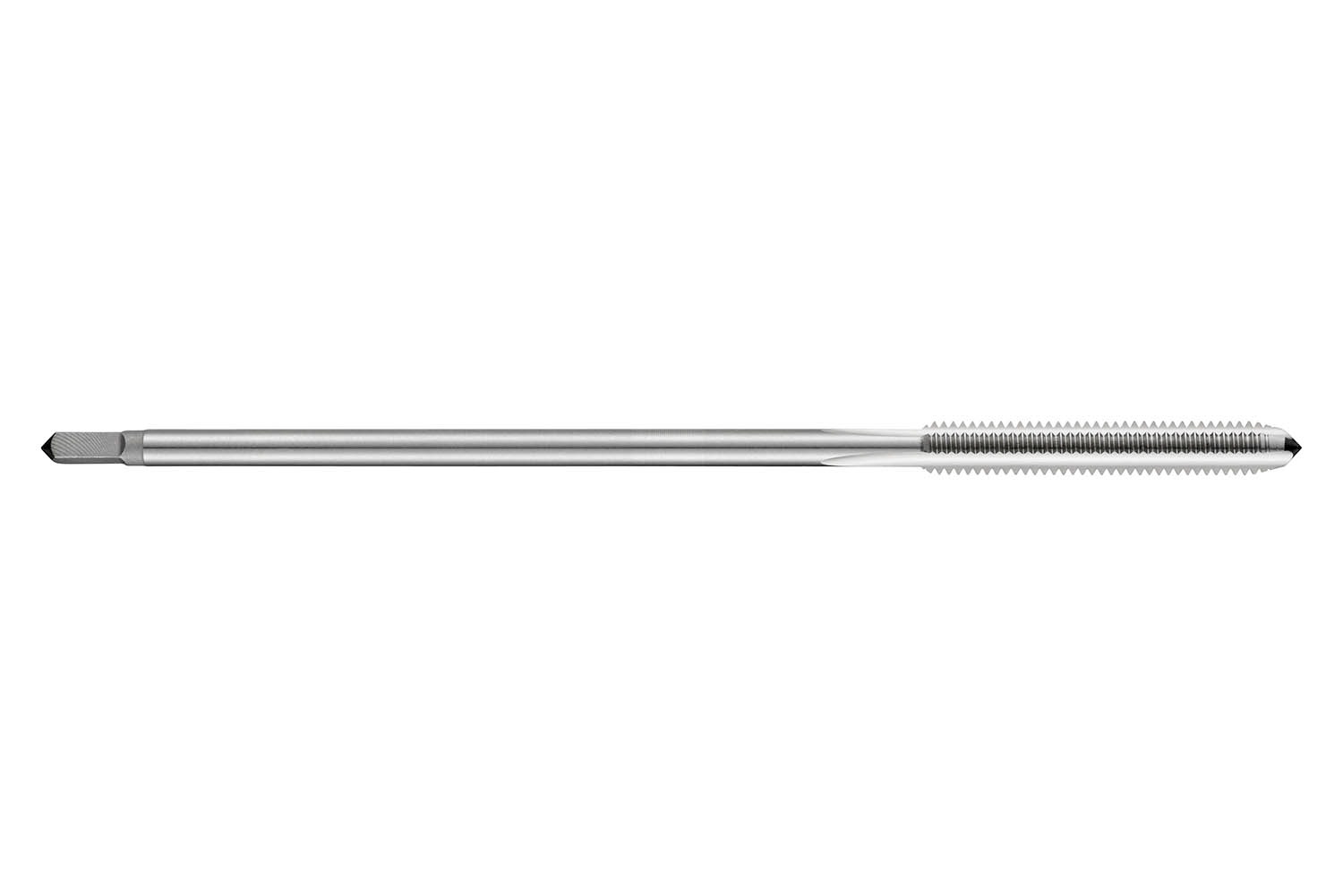

DORMER E303M14NO3 HSS / HSCo DIN Taps

Description: Value
Product name: E303M14NO3
Product number (SAP): 86016141
EAN number: 7320760090299

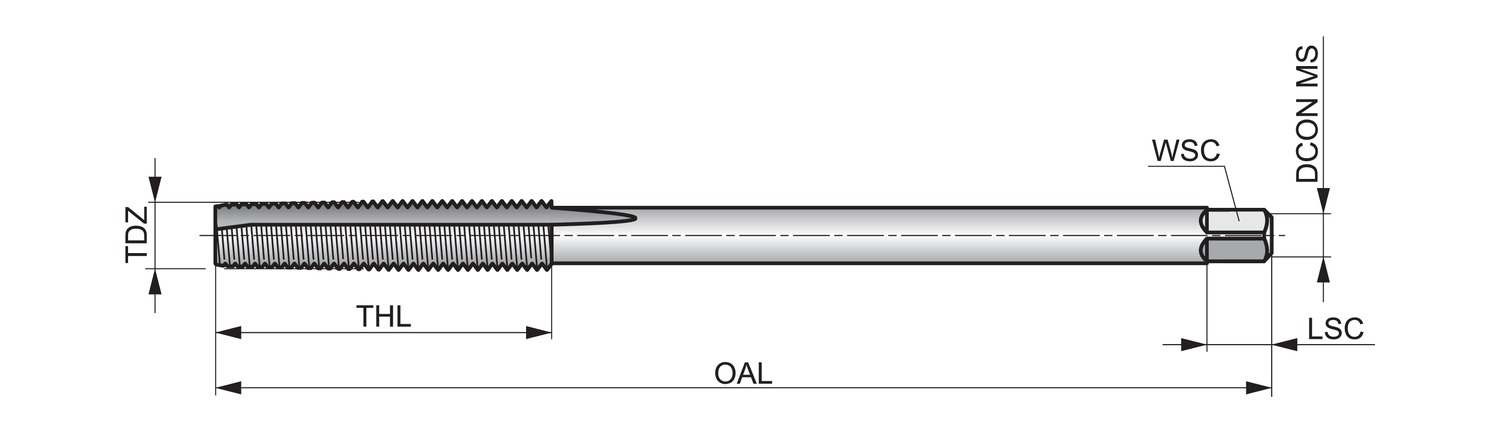

Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 200 mm
Overall length – inch (OAL): 7.874 inch
Threading length – millimeter (THL): 56 mm
Threading length – inch (THL): 2.2047 inch
Connection diameter – inch (DCON MS): 0.4331 inch
Connection diameter – millimeter (DCON MS): 11 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.4724 inch
Premachined hole diameter – millimeter (PHD): 12 mm
Gross weight – grams: 148
ISO: E303M14NO3
Ordering code ANSI: E303M14NO3
