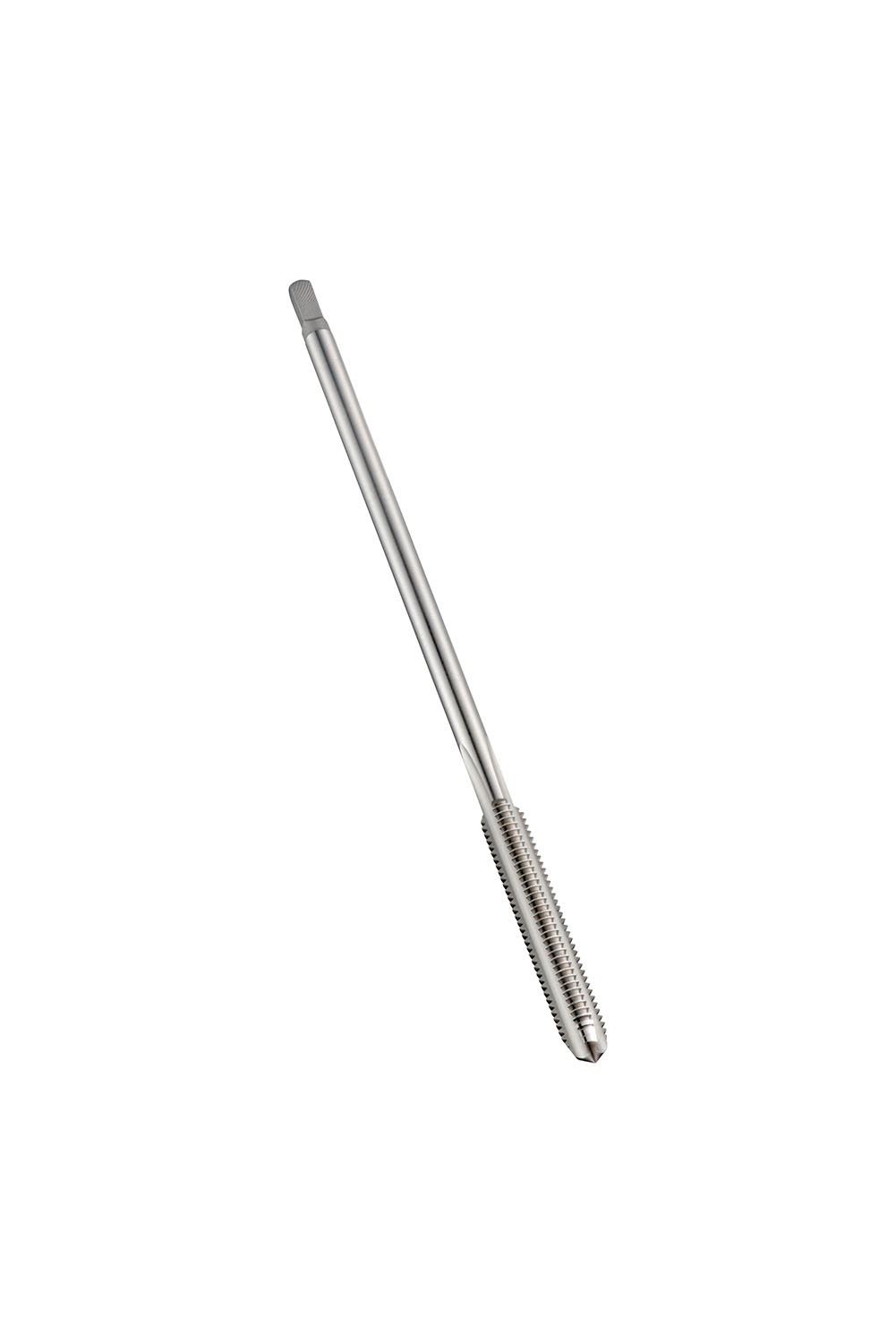

DORMER E303M8NO1 HSS / HSCo DIN Taps

Description: Value
Product name: E303M8NO1
Product number (SAP): 86016158
EAN number: 7320760090435

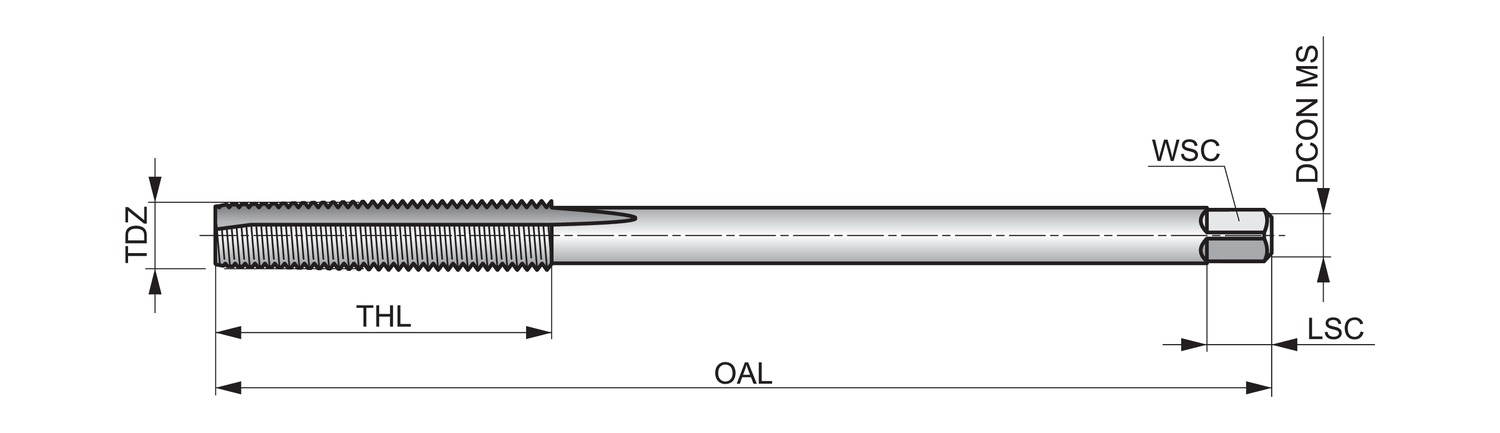

Thread diameter size (TDZ): 8
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 40 mm
Threading length – inch (THL): 1.5748 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2677 inch
Premachined hole diameter – millimeter (PHD): 6.8 mm
Gross weight – grams: 29.9
ISO: E303M8NO1
Ordering code ANSI: E303M8NO1
