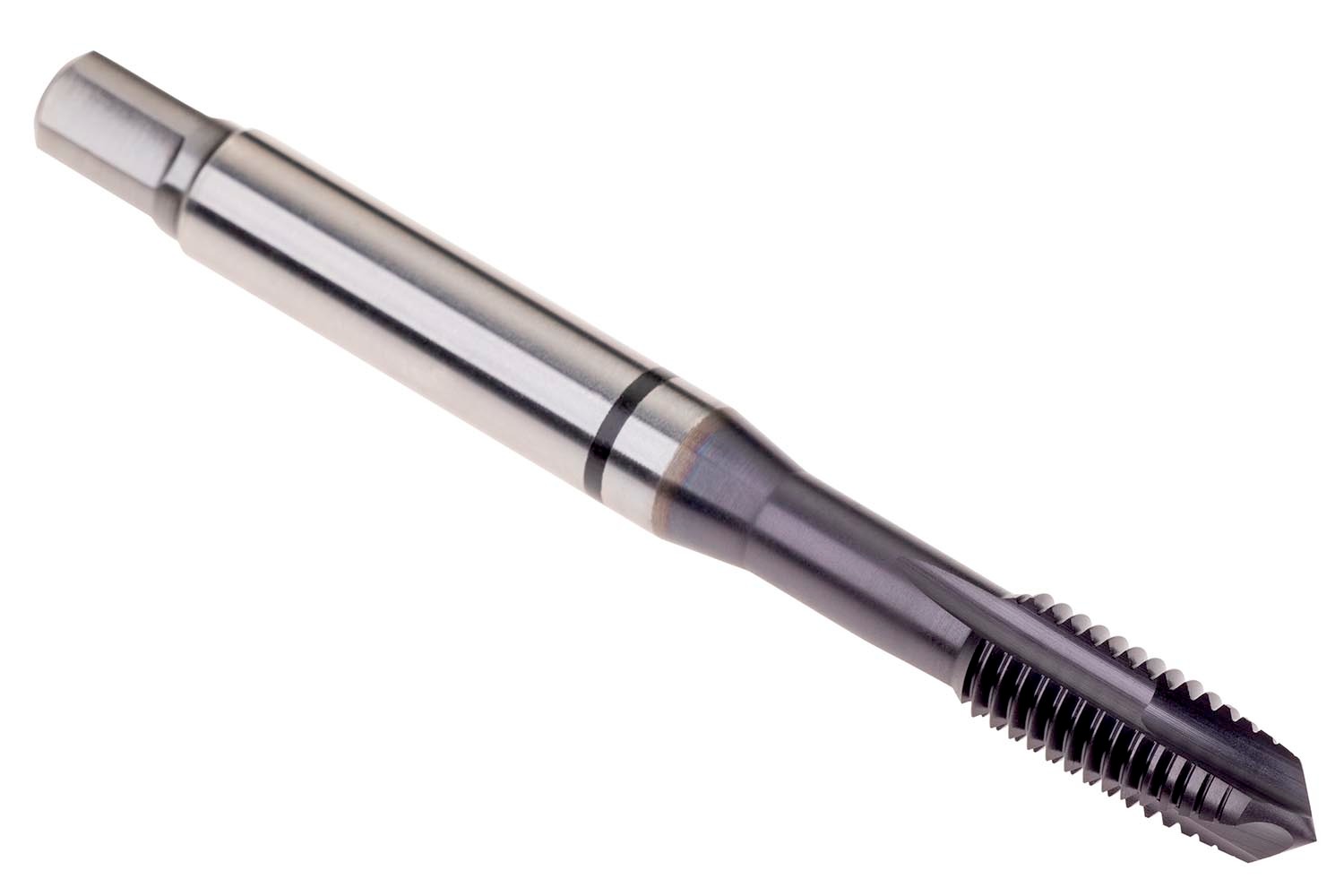

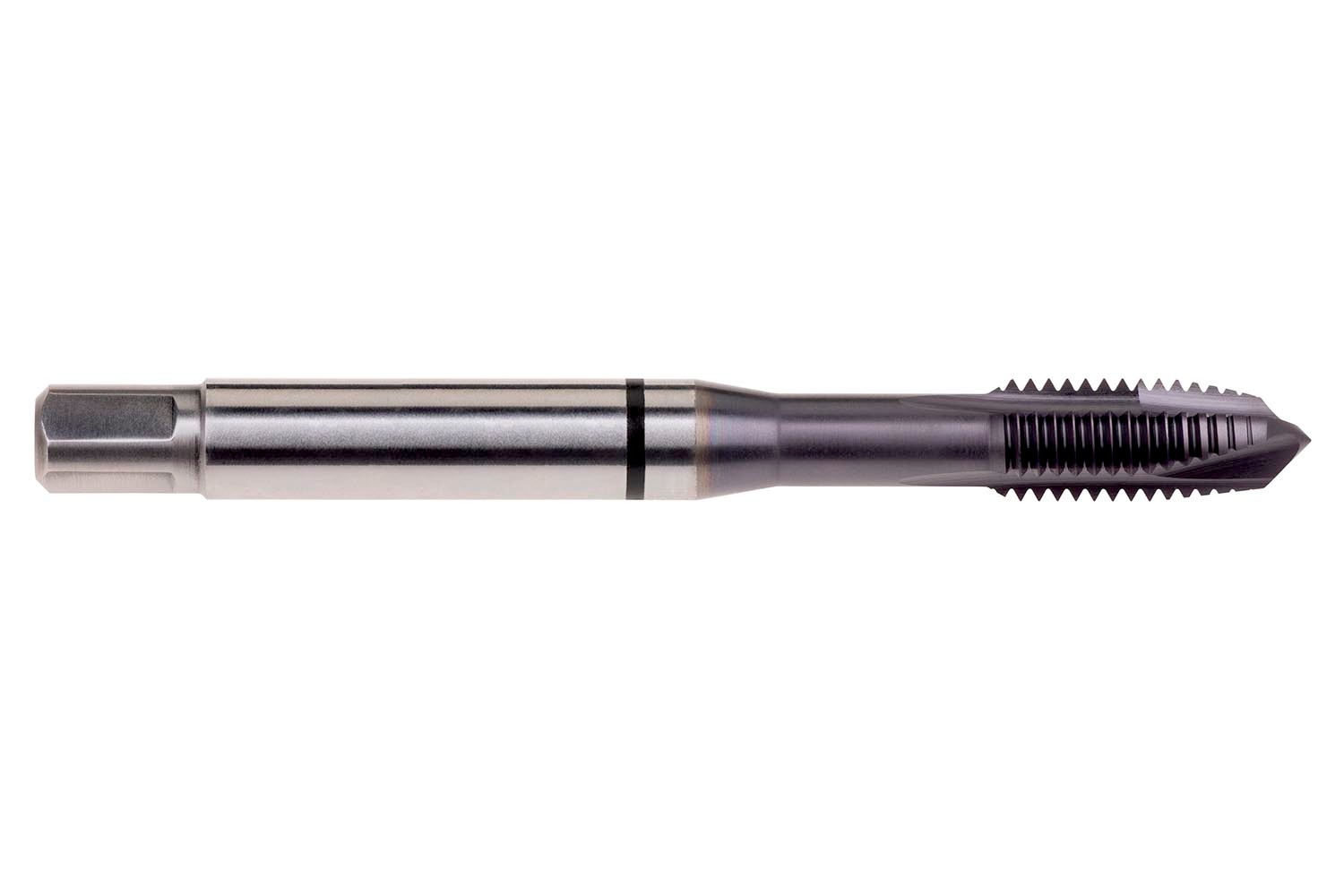

DORMER E334M4 HSS / HSCo DIN Taps

Description: Value
Product name: E334M4
Product number (SAP): 86036734
EAN number: 7320760884423
Product Line: SHARK

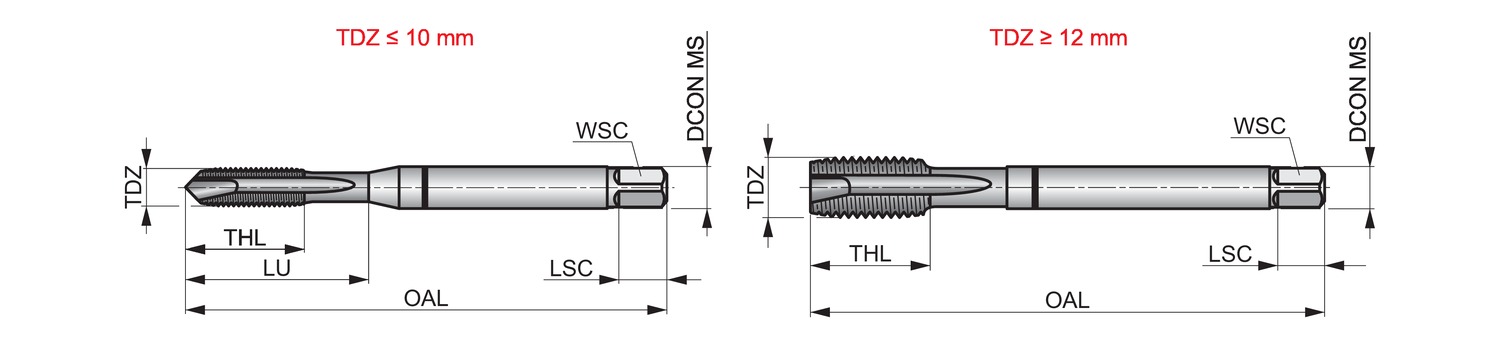

Thread diameter size (TDZ): 4
Thread pitch – millimeter (TP): 0.7 mm
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 17 mm
Threading length – inch (THL): 0.6693 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Usable Length – inch (LU): 0.6693 inch
Usable Length – millimeter (LU): 17 mm
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1299 inch
Premachined hole diameter – millimeter (PHD): 3.3 mm
Gross weight – grams: 13.2
ISO: E334M4
Ordering code ANSI: E334M4
