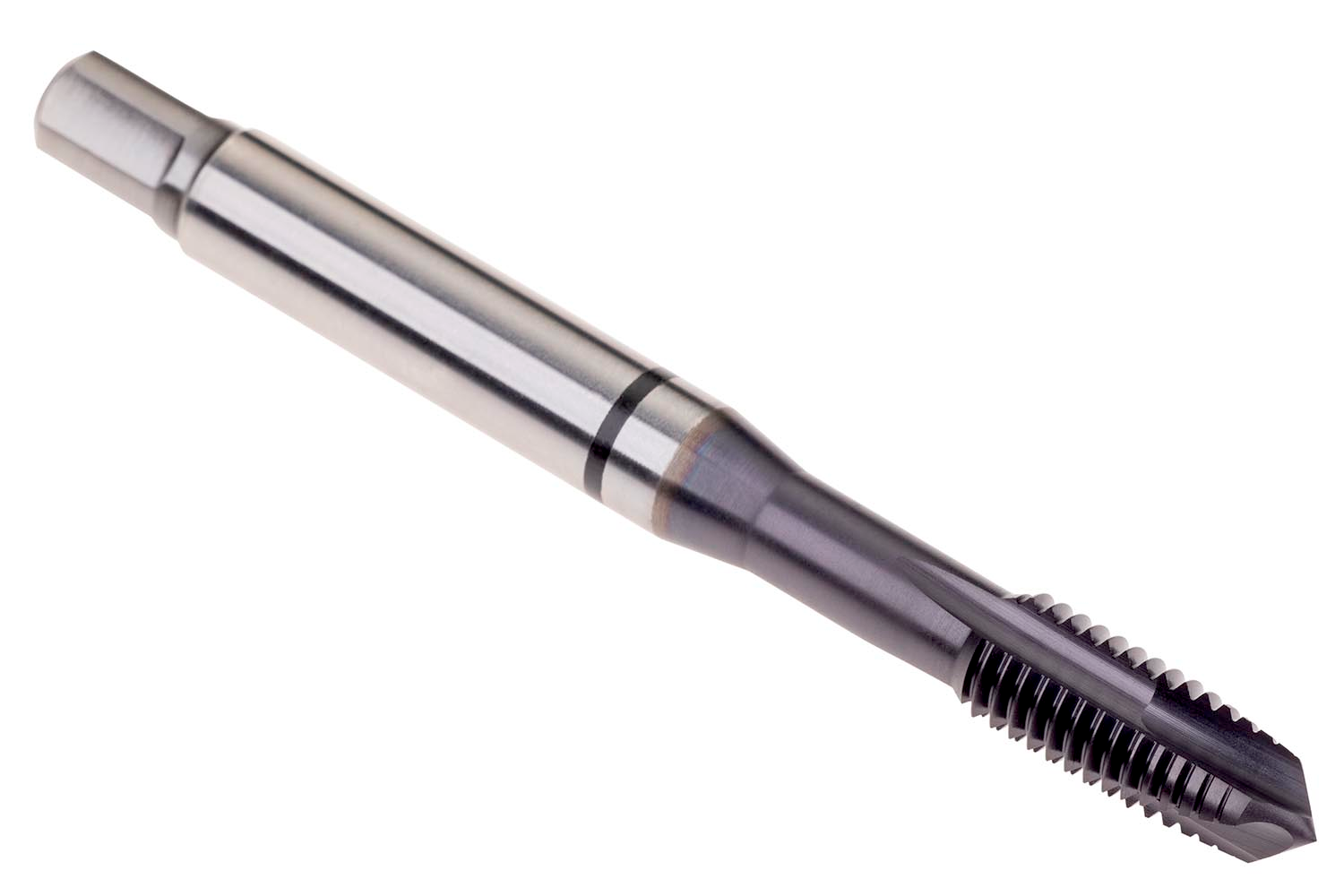

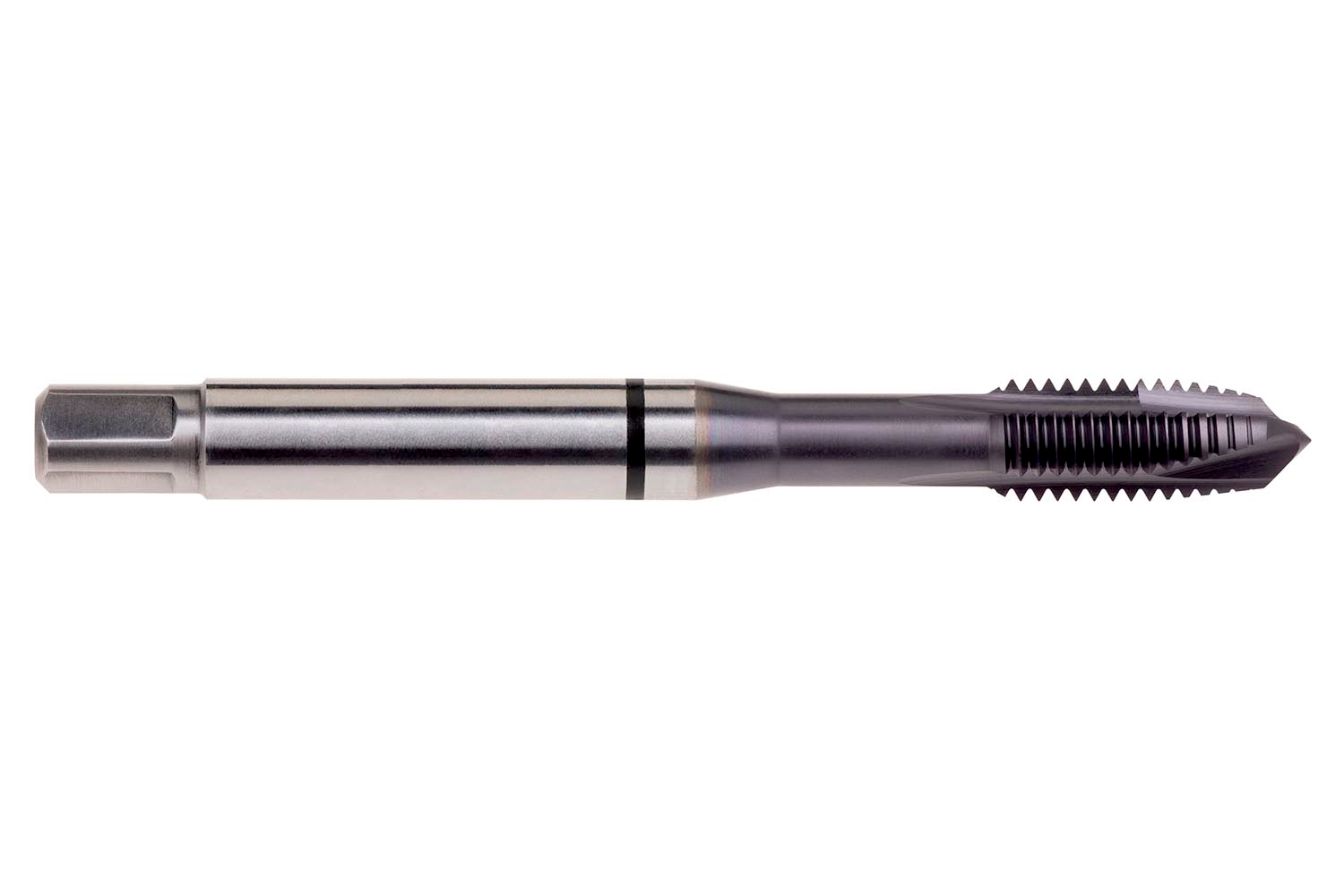

DORMER E334M8 HSS / HSCo DIN Taps

Description: Value
Product name: E334M8
Product number (SAP): 86036737
EAN number: 7320760884454
Product Line: SHARK

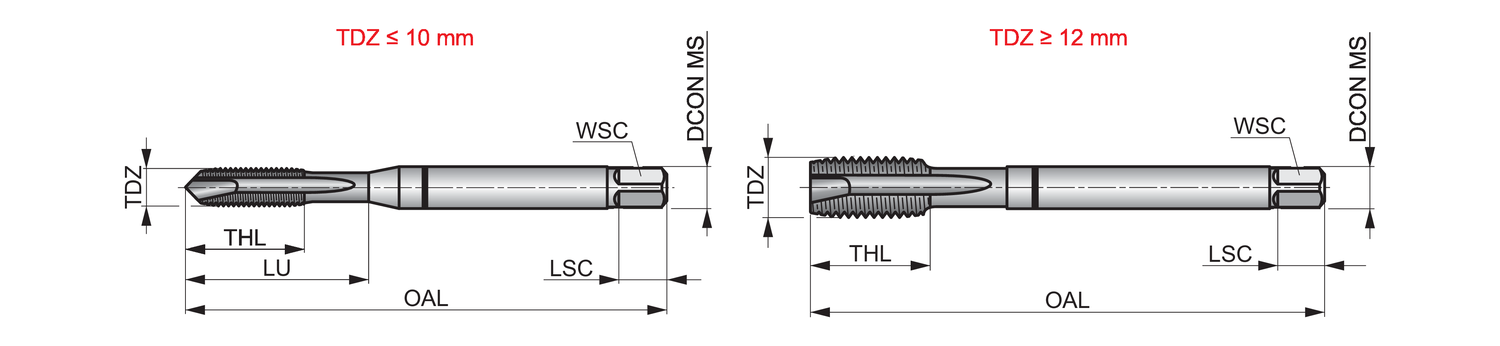

Thread diameter size (TDZ): 8
Thread pitch – millimeter (TP): 1.25 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 32 mm
Threading length – inch (THL): 1.2598 inch
Connection diameter – inch (DCON MS): 0.3937 inch
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
Usable Length – inch (LU): 1.2598 inch
Usable Length – millimeter (LU): 32 mm
Clamping width – inch (WSC): 0.315 inch
Clamping width – millimeter (WSC): 8 mm
Clamping Length – inch (LCS): 0.4331 inch
Clamping Length – millimeter (LSC): 11 mm
Premachined hole diameter – inch (PHD): 0.2677 inch
Premachined hole diameter – millimeter (PHD): 6.8 mm
Gross weight – grams: 49.5
ISO: E334M8
Ordering code ANSI: E334M8
