Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » 16 - HSS DIN Taps » DORMER E335M3 HSS / HSCo DIN Taps
$55.94$50.85 Ex. GST

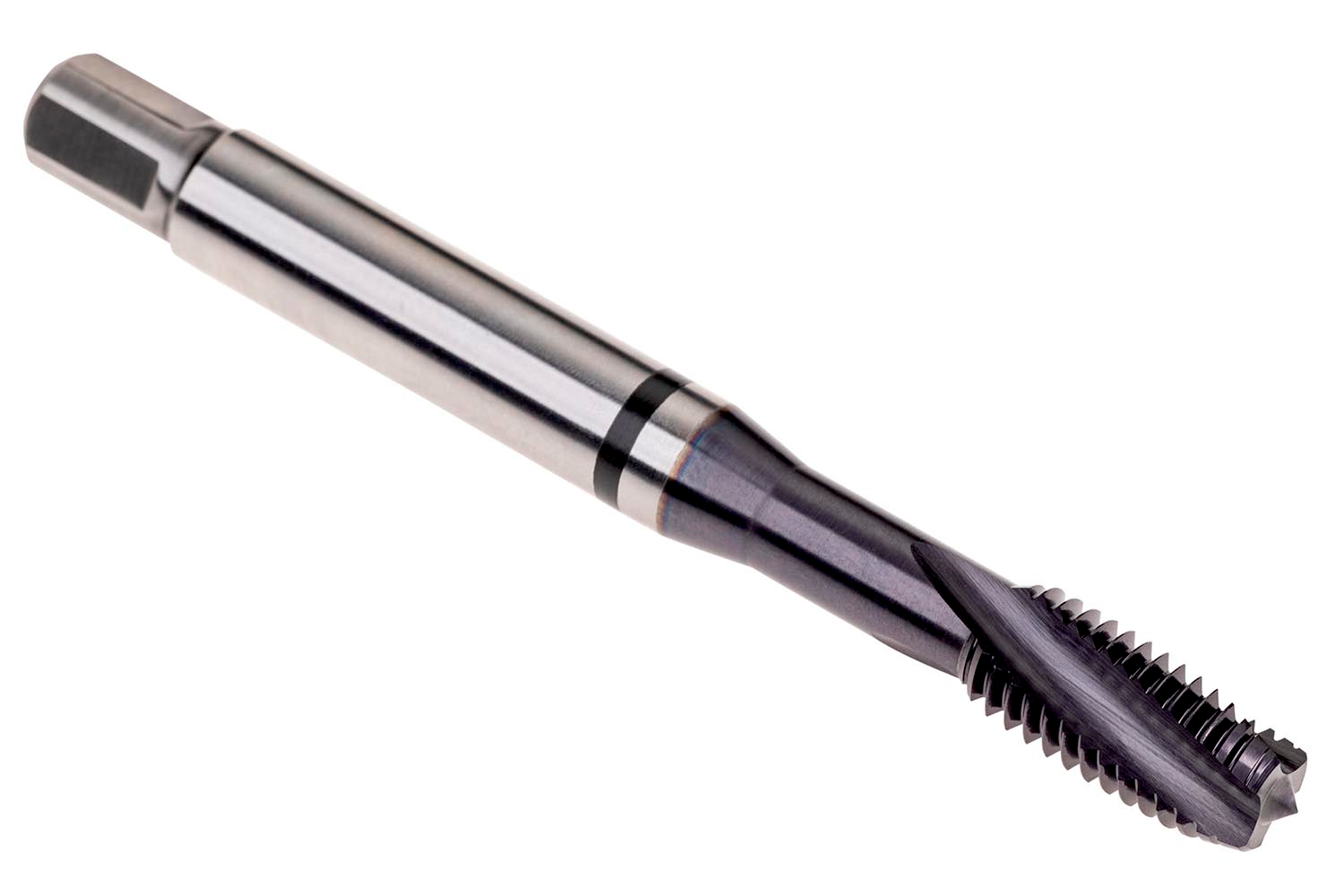

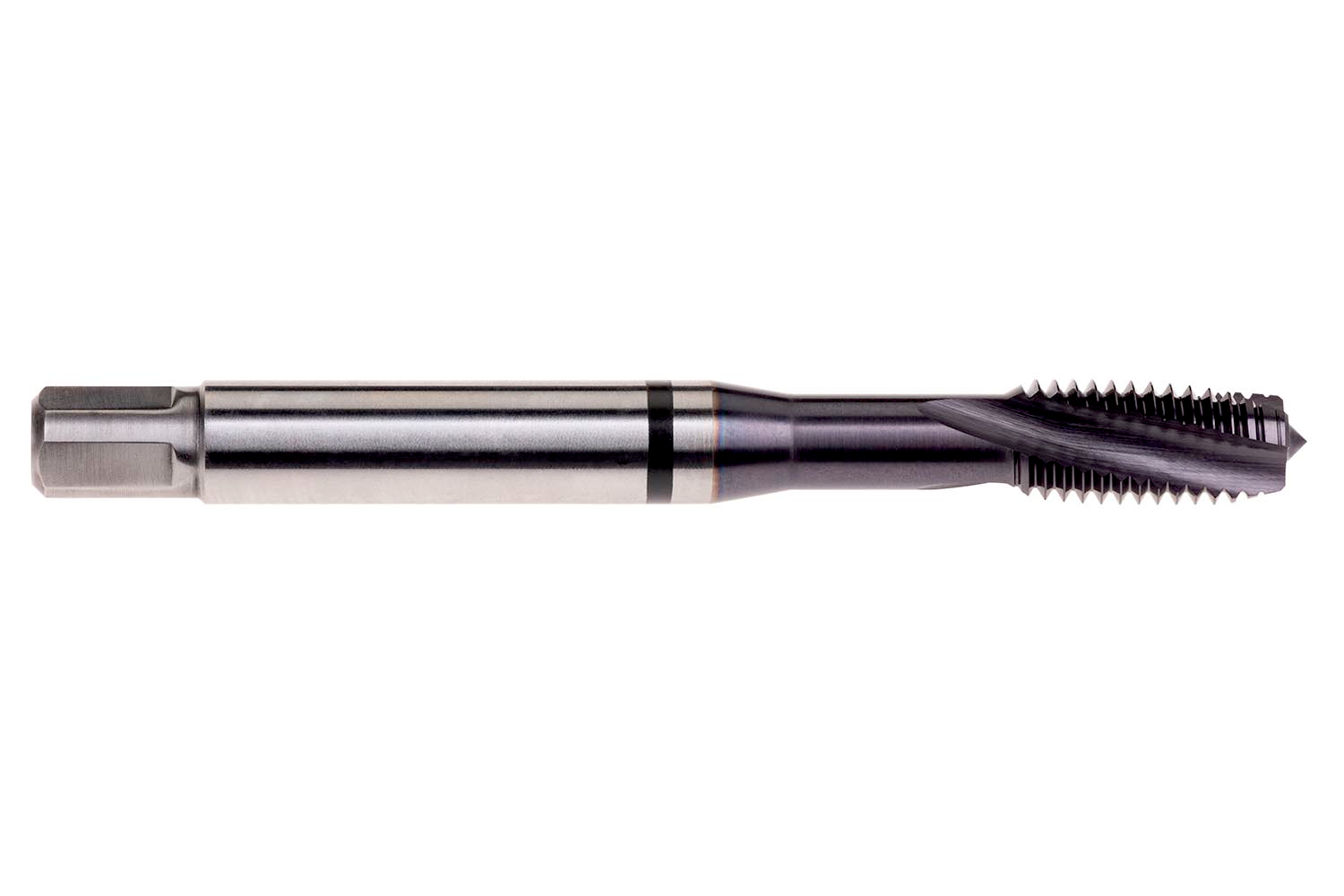

M Machine Tap Spiral Flute 15°, Black Shark

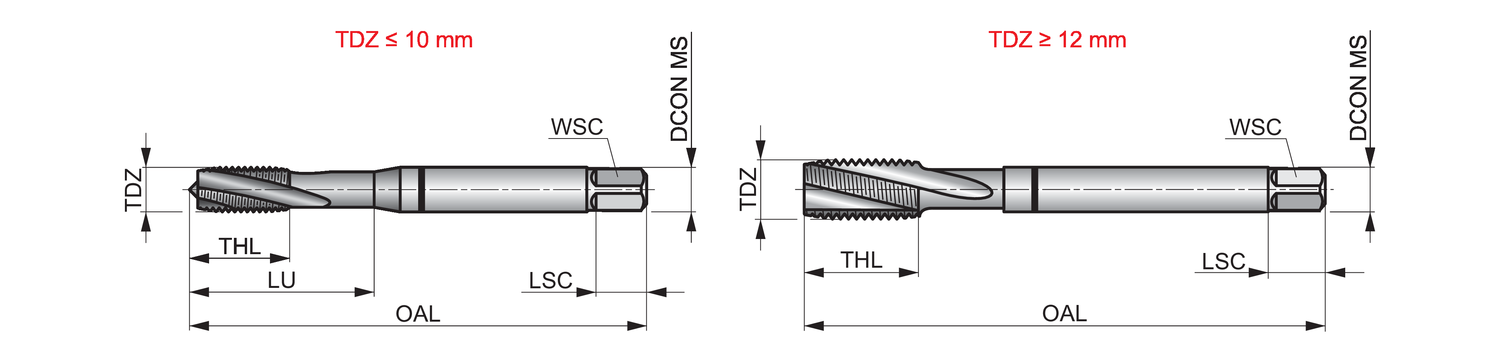

Description: Value Product name: E335M3 Product number (SAP): 86036740 EAN number: 7320760884485 Product Line: SHARK Thread diameter size (TDZ): 3 Thread pitch – millimeter (TP): 0.5 mm Overall length – millimeter (OAL): 63 mm Overall length – inch (OAL): 2.4803 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.4724 inch Connection diameter – inch (DCON MS): 0.1772 inch Connection diameter – millimeter (DCON MS): 4.5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.4724 inch Usable Length – millimeter (LU): 12 mm Clamping width – inch (WSC): 0.1339 inch Clamping width – millimeter (WSC): 3.4 mm Clamping Length – inch (LCS): 0.2362 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.0984 inch Premachined hole diameter – millimeter (PHD): 2.5 mm Gross weight – grams: 8.5 ISO: E335M3 Ordering code ANSI: E335M3
