Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » 16 - HSS DIN Taps » DORMER E335M5 HSS / HSCo DIN Taps
$59.82$54.38 Ex. GST

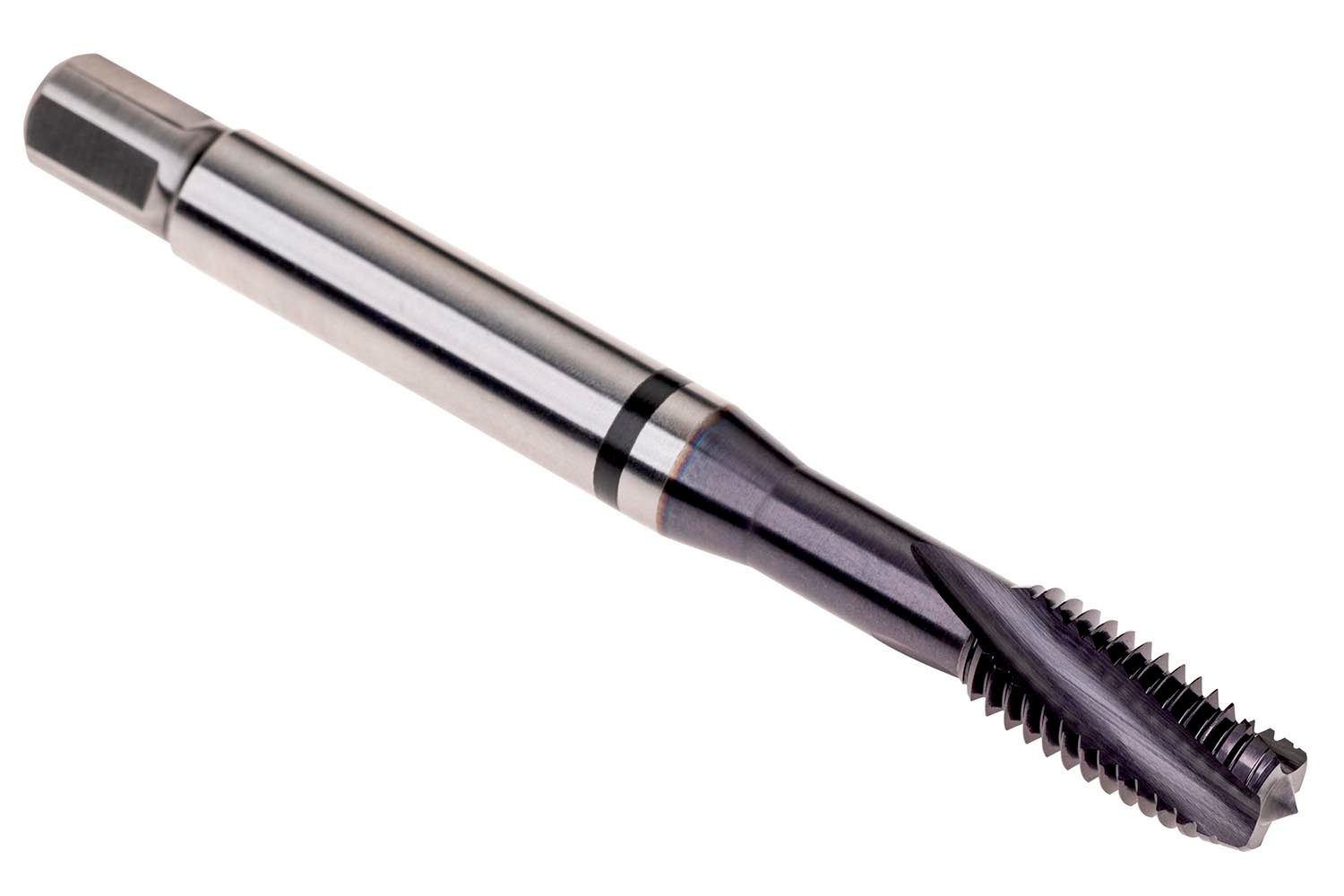

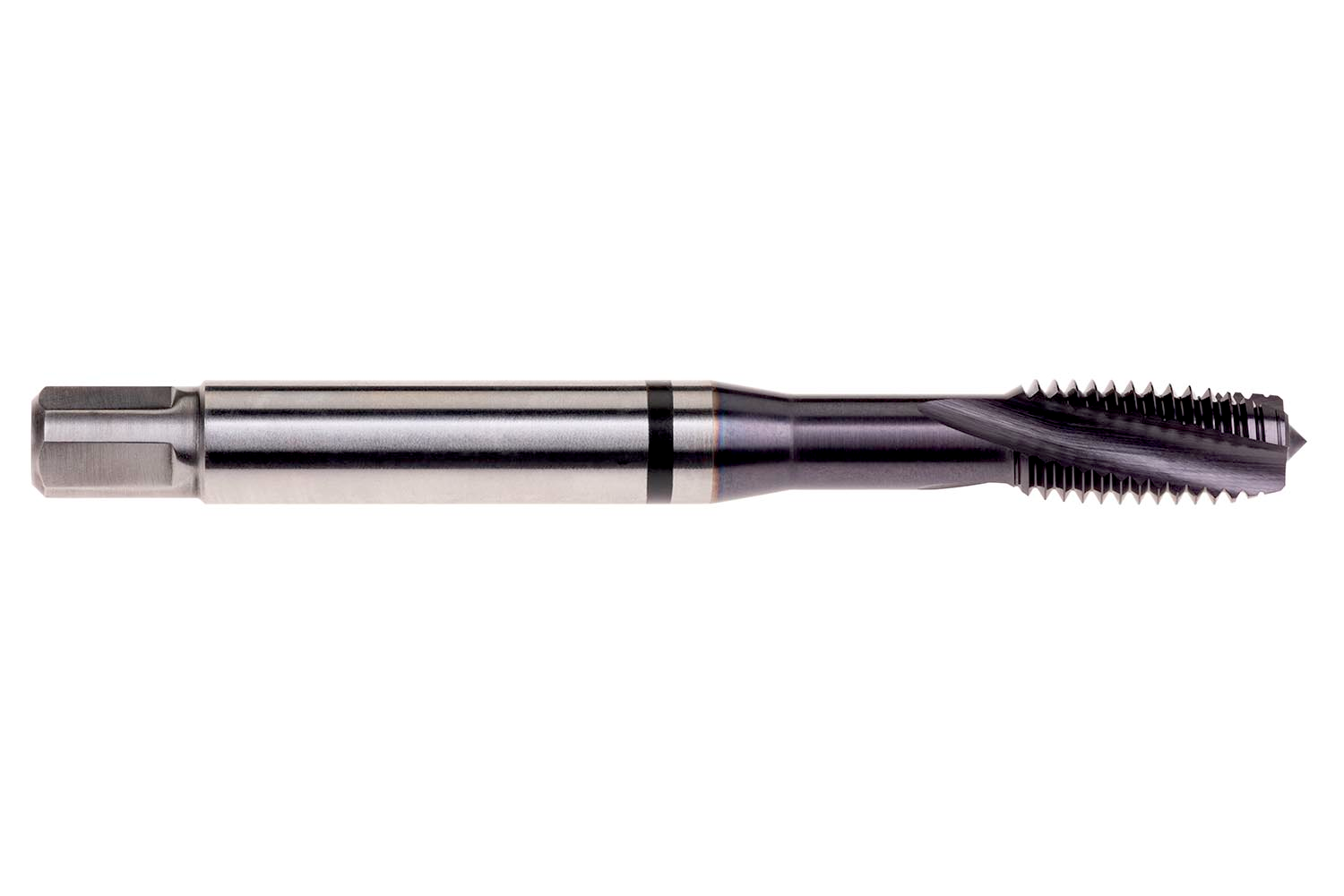

M Machine Tap Spiral Flute 15°, Black Shark

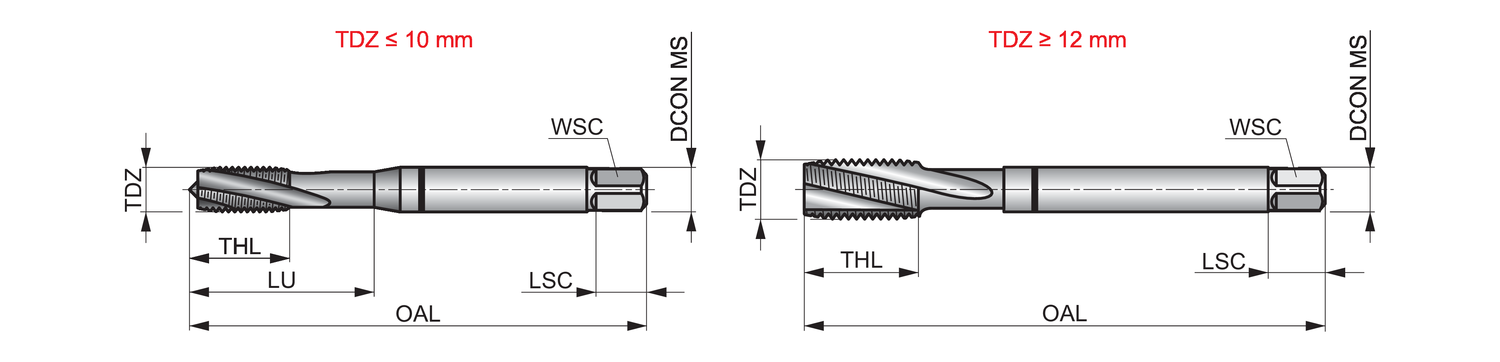

Description: Value Product name: E335M5 Product number (SAP): 86036742 EAN number: 7320760884508 Product Line: SHARK Thread diameter size (TDZ): 5 Thread pitch – millimeter (TP): 0.8 mm Overall length – millimeter (OAL): 80 mm Overall length – inch (OAL): 3.1496 inch Threading length – millimeter (THL): 15 mm Threading length – inch (THL): 0.5906 inch Connection diameter – inch (DCON MS): 0.2362 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.5906 inch Usable Length – millimeter (LU): 15 mm Clamping width – inch (WSC): 0.1929 inch Clamping width – millimeter (WSC): 4.9 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.1654 inch Premachined hole diameter – millimeter (PHD): 4.2 mm Gross weight – grams: 16.6 ISO: E335M5 Ordering code ANSI: E335M5
