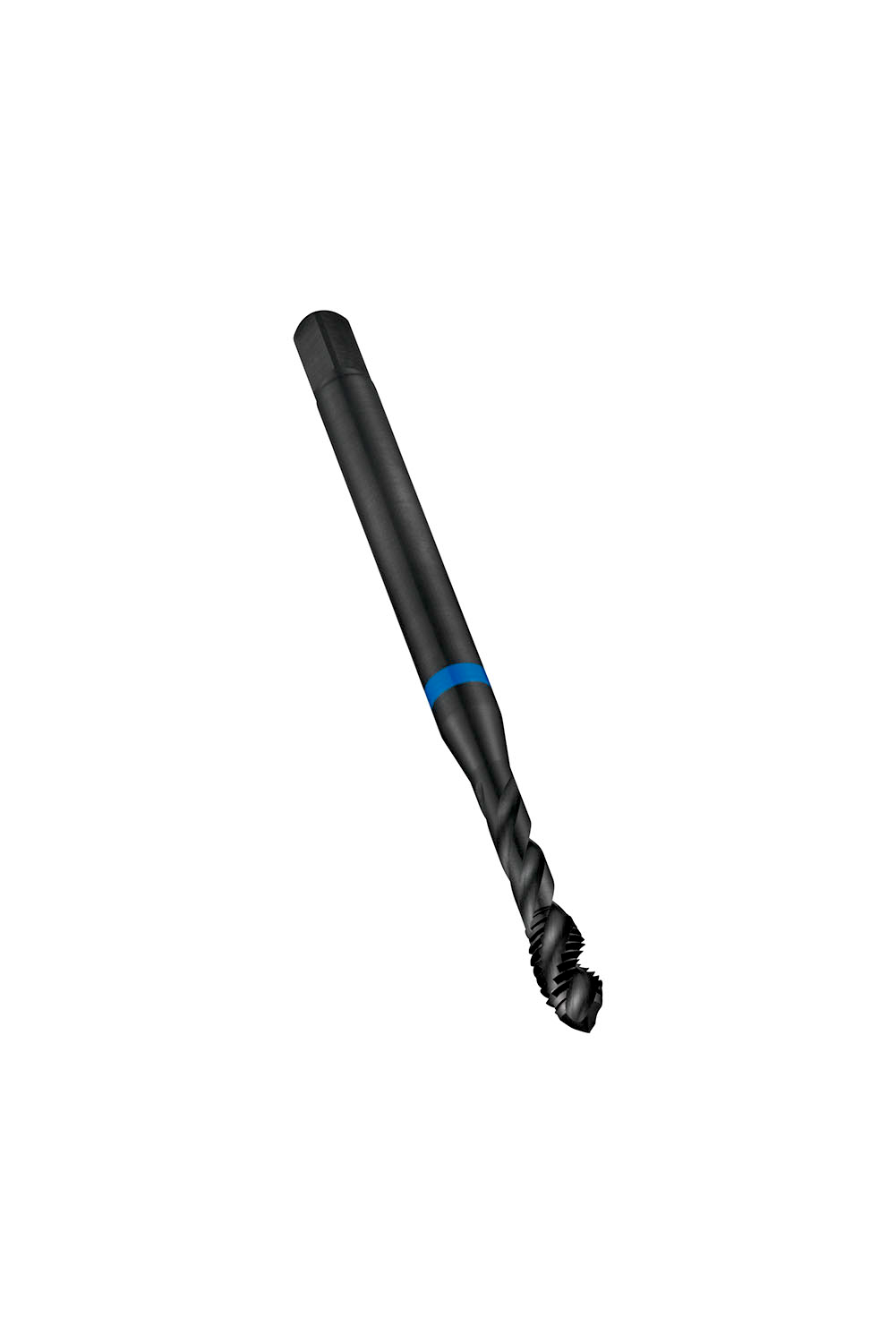

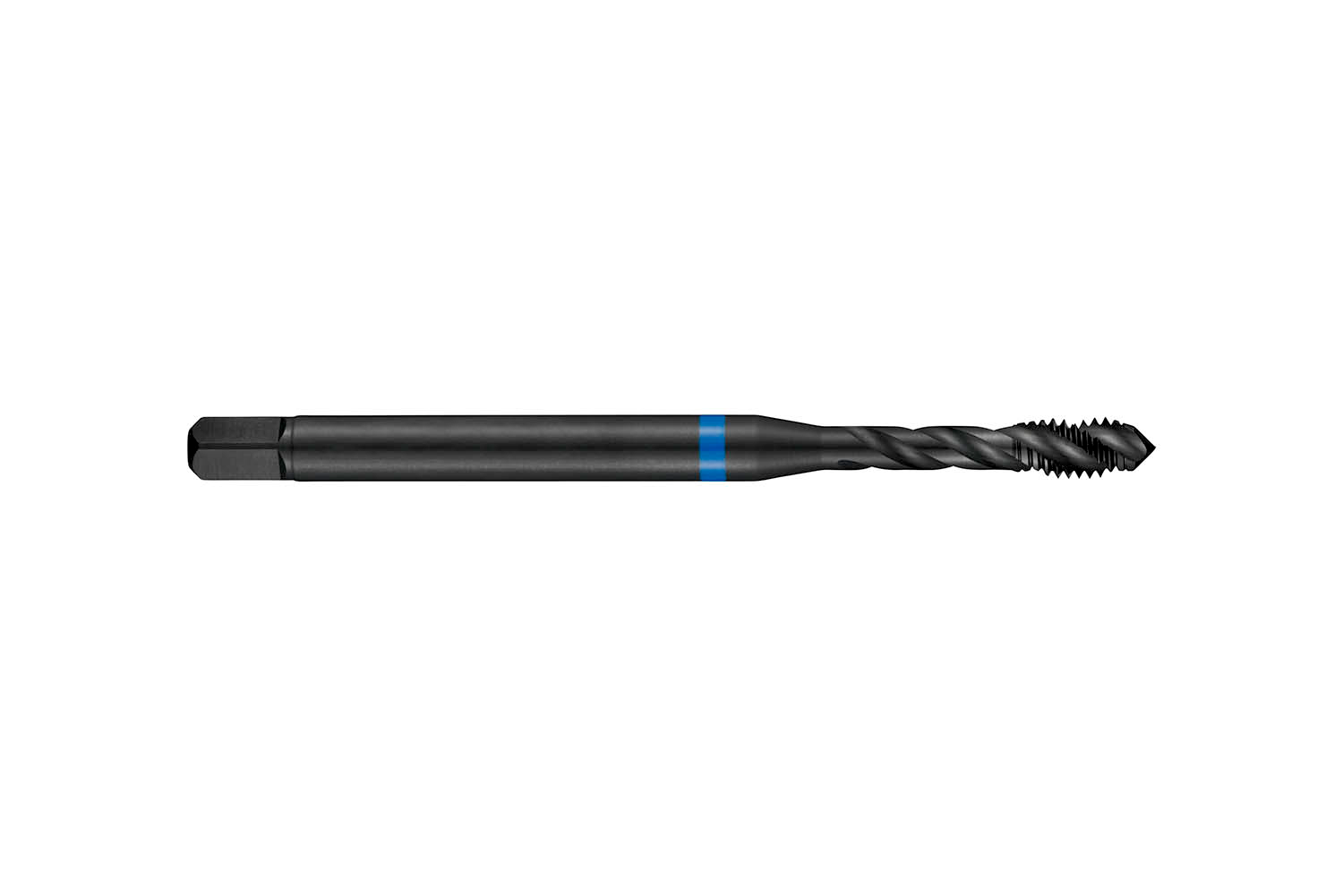

DORMER E3821/4 HSS / HSCo DIN Taps

Description: Value
Product name: E3821/4
Product number (SAP): 86016162
EAN number: 7320760664551
Product Line: SHARK

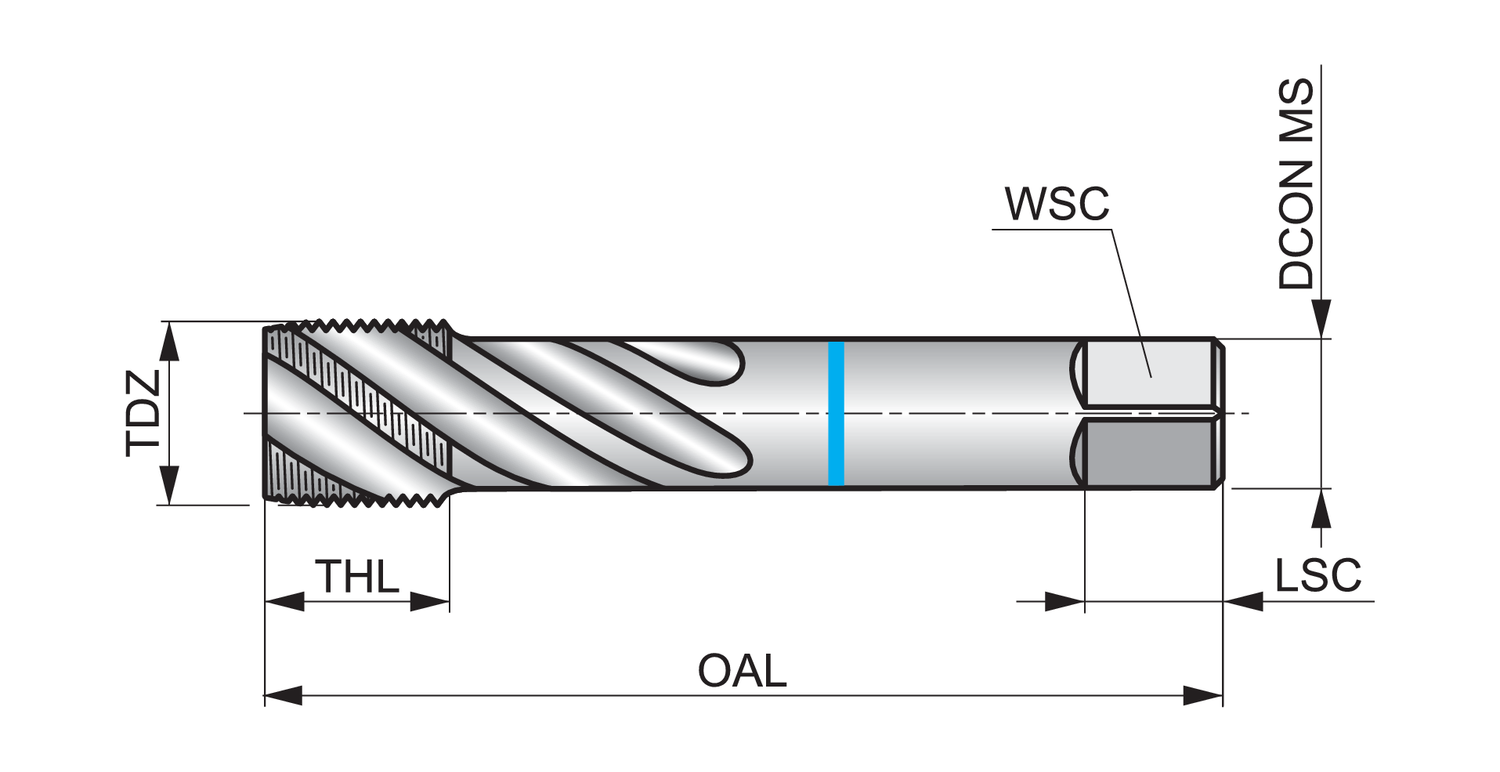

Thread diameter size (TDZ): 1/4
Thread diameter – millimeter (TD): 13.16 mm
Threads per inch (TPI): 19
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 15 mm
Threading length – inch (THL): 0.5906 inch
Connection diameter – inch (DCON MS): 0.4331 inch
Connection diameter – millimeter (DCON MS): 11 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.4646 inch
Premachined hole diameter – millimeter (PHD): 11.8 mm
Gross weight – grams: 69.5
ISO: E3821/4
Ordering code ANSI: E3821/4
