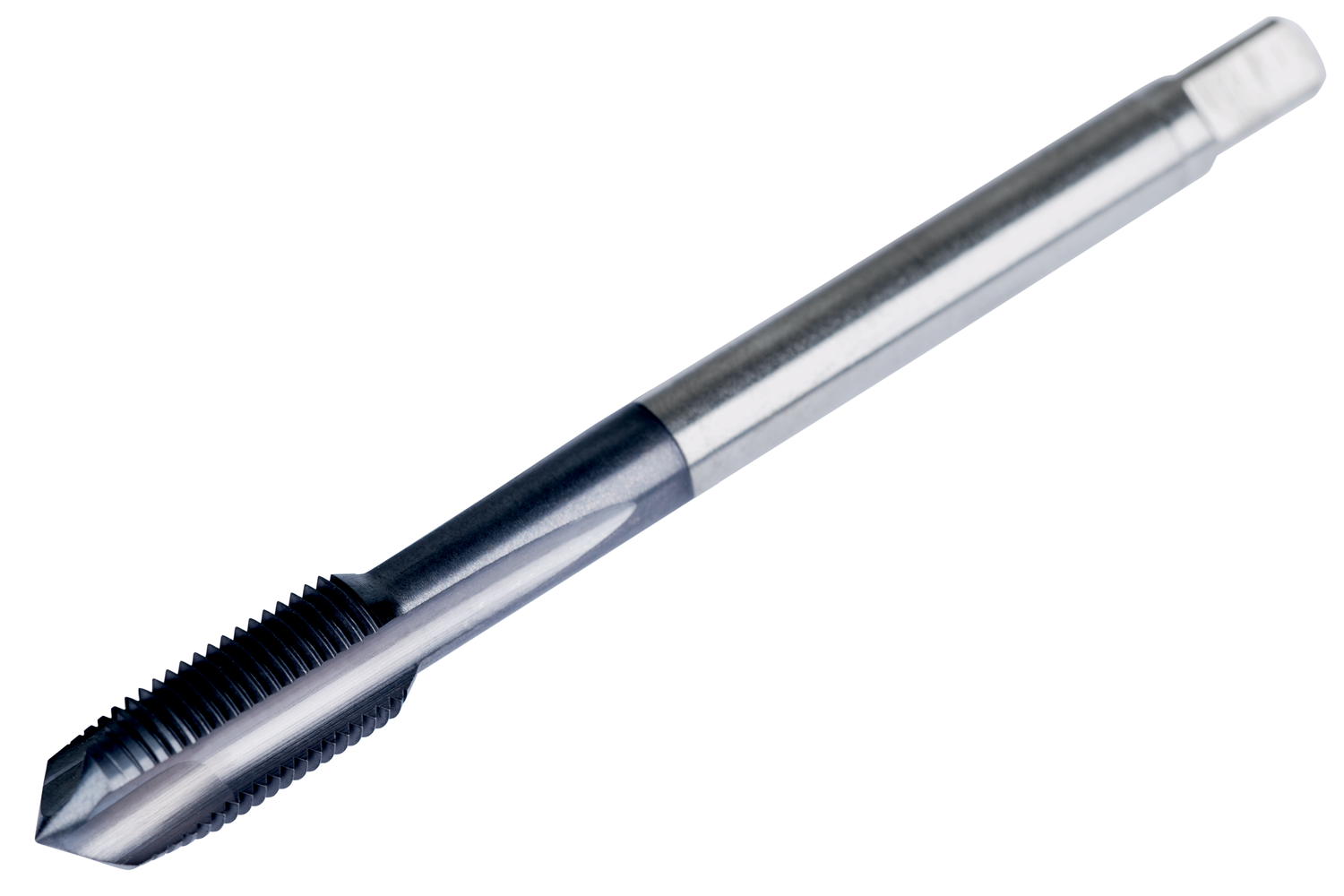

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397M12X1.0 HSS / HSCo DIN Taps
$123.50$112.27 Ex. GST
Thread size MF12 mm x 1 mm, with thread tolerance class 93707, and maximum threading depth 30 mm.
3603607095409
Description: Value Product name: E397M12X1.0 Product number (SAP): 86046787 EAN number: 3603607095409 Thread diameter size (TDZ): 12 Thread pitch – millimeter (TP): 1 mm Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 21 mm Threading length – inch (THL): 0.827 inch Connection diameter – inch (DCON MS): 0.354 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.276 inch Clamping width – millimeter (WSC): 7 mm Clamping Length – inch (LCS): 0.394 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.433 inch Premachined hole diameter – millimeter (PHD): 11 mm Gross weight – grams: 58 ISO: E397M12X1.0
