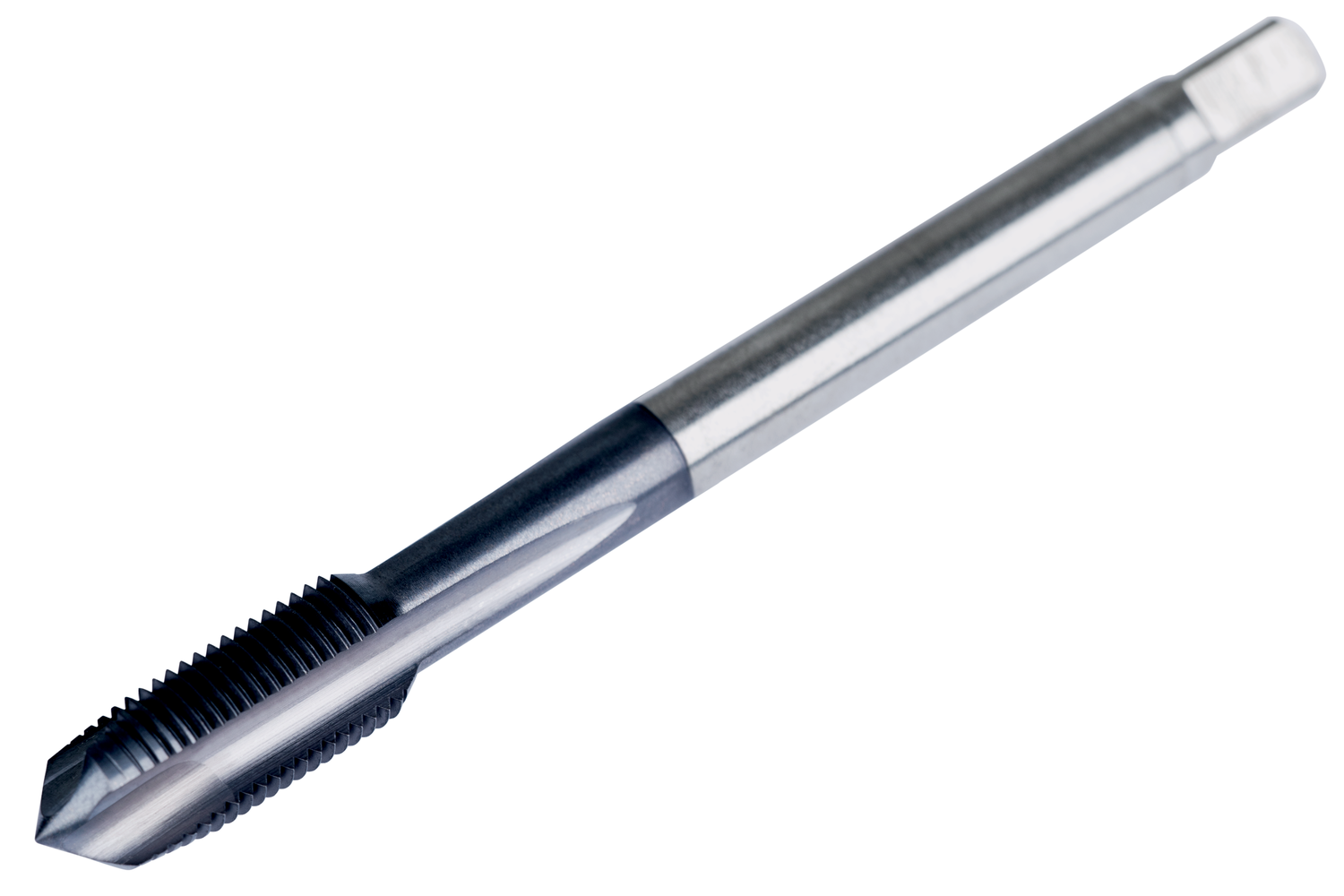

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397M16X1.5 HSS / HSCo DIN Taps
$155.22$141.11 Ex. GST
Thread size MF16 mm x 1.5 mm, with thread tolerance class 93707, and maximum threading depth 40 mm.
3603607095447
Description: Value Product name: E397M16X1.5 Product number (SAP): 86046791 EAN number: 3603607095447 Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 21 mm Threading length – inch (THL): 0.827 inch Connection diameter – inch (DCON MS): 0.472 inch Connection diameter – millimeter (DCON MS): 12 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.354 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.472 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.571 inch Premachined hole diameter – millimeter (PHD): 14.5 mm Gross weight – grams: 93.7 ISO: E397M16X1.5
