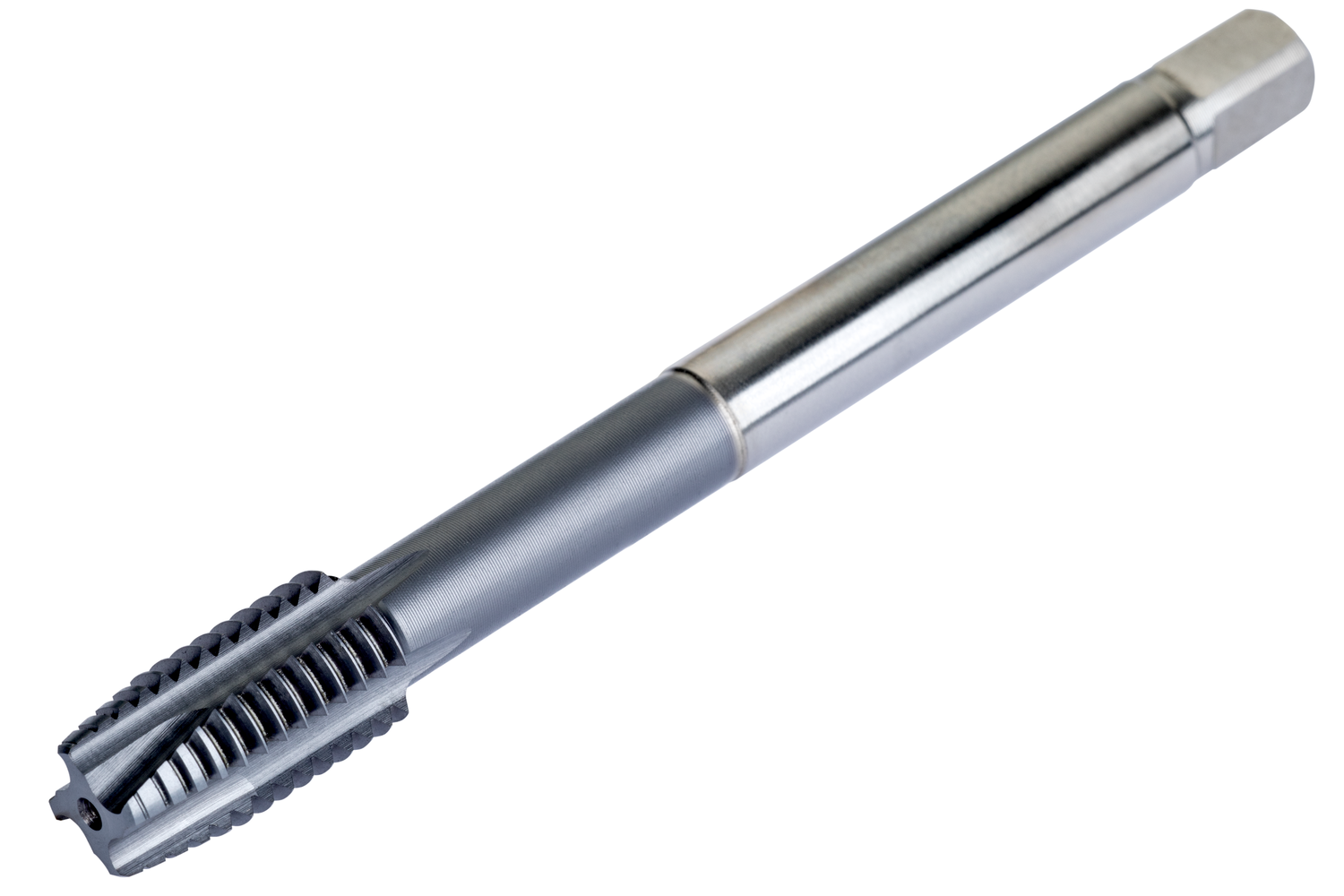

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397M18 HSS / HSCo DIN Taps
$223.20$202.91 Ex. GST
Thread size M18 mm x 2.5 mm, with thread tolerance class 93707, and maximum threading depth 45 mm.
3603607095164
Description: Value Product name: E397M18 Product number (SAP): 86046763 EAN number: 3603607095164 Thread diameter size (TDZ): 18 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.921 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.181 inch Connection diameter – inch (DCON MS): 0.551 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.433 inch Clamping width – millimeter (WSC): 11 mm Clamping Length – inch (LCS): 0.551 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.61 inch Premachined hole diameter – millimeter (PHD): 15.5 mm Gross weight – grams: 146.8 ISO: E397M18
