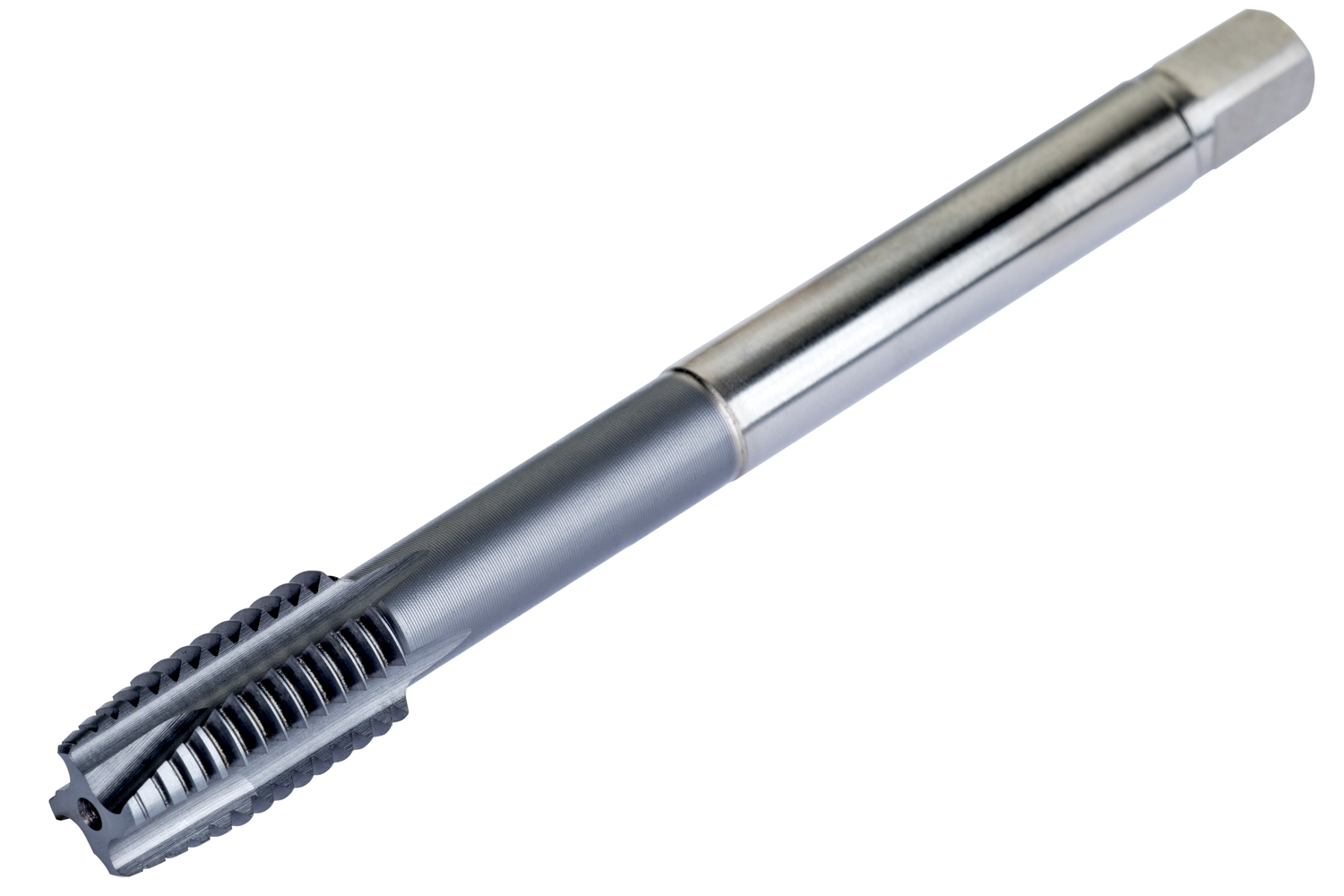

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397M20 HSS / HSCo DIN Taps
$236.80$215.27 Ex. GST
Thread size M20 mm x 2.5 mm, with thread tolerance class 93707, and maximum threading depth 50 mm.
3603607095171
Description: Value Product name: E397M20 Product number (SAP): 86046764 EAN number: 3603607095171 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.512 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.181 inch Connection diameter – inch (DCON MS): 0.63 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.472 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.591 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.689 inch Premachined hole diameter – millimeter (PHD): 17.5 mm Gross weight – grams: 219.5 ISO: E397M20
