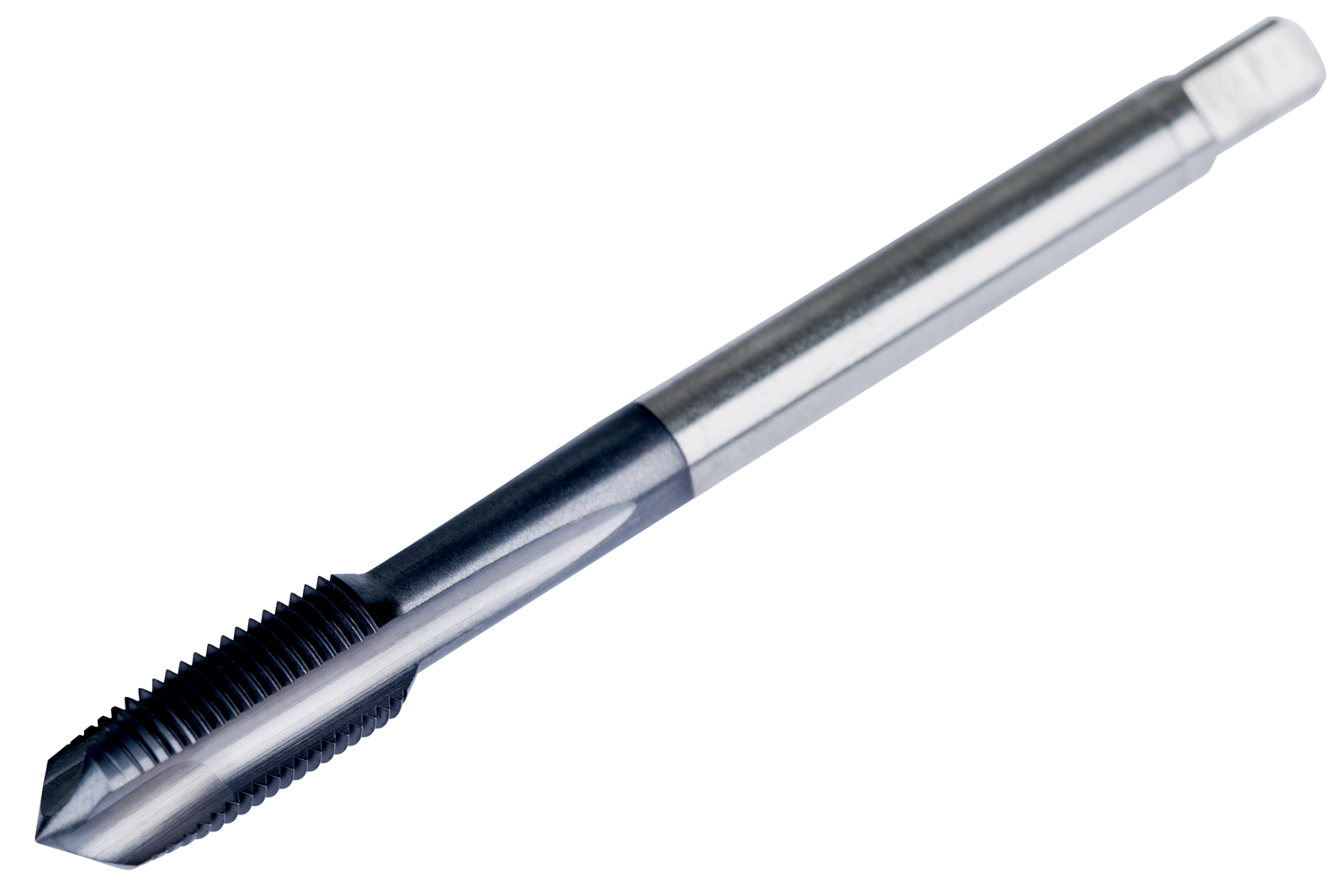

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397M20X1.5 HSS / HSCo DIN Taps
$236.80$215.27 Ex. GST
Thread size MF20 mm x 1.5 mm, with thread tolerance class 93707, and maximum threading depth 50 mm.
3603607095454
Description: Value Product name: E397M20X1.5 Product number (SAP): 86046792 EAN number: 3603607095454 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.921 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.945 inch Connection diameter – inch (DCON MS): 0.63 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.472 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.591 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.728 inch Premachined hole diameter – millimeter (PHD): 18.5 mm Gross weight – grams: 202.8 ISO: E397M20X1.5
