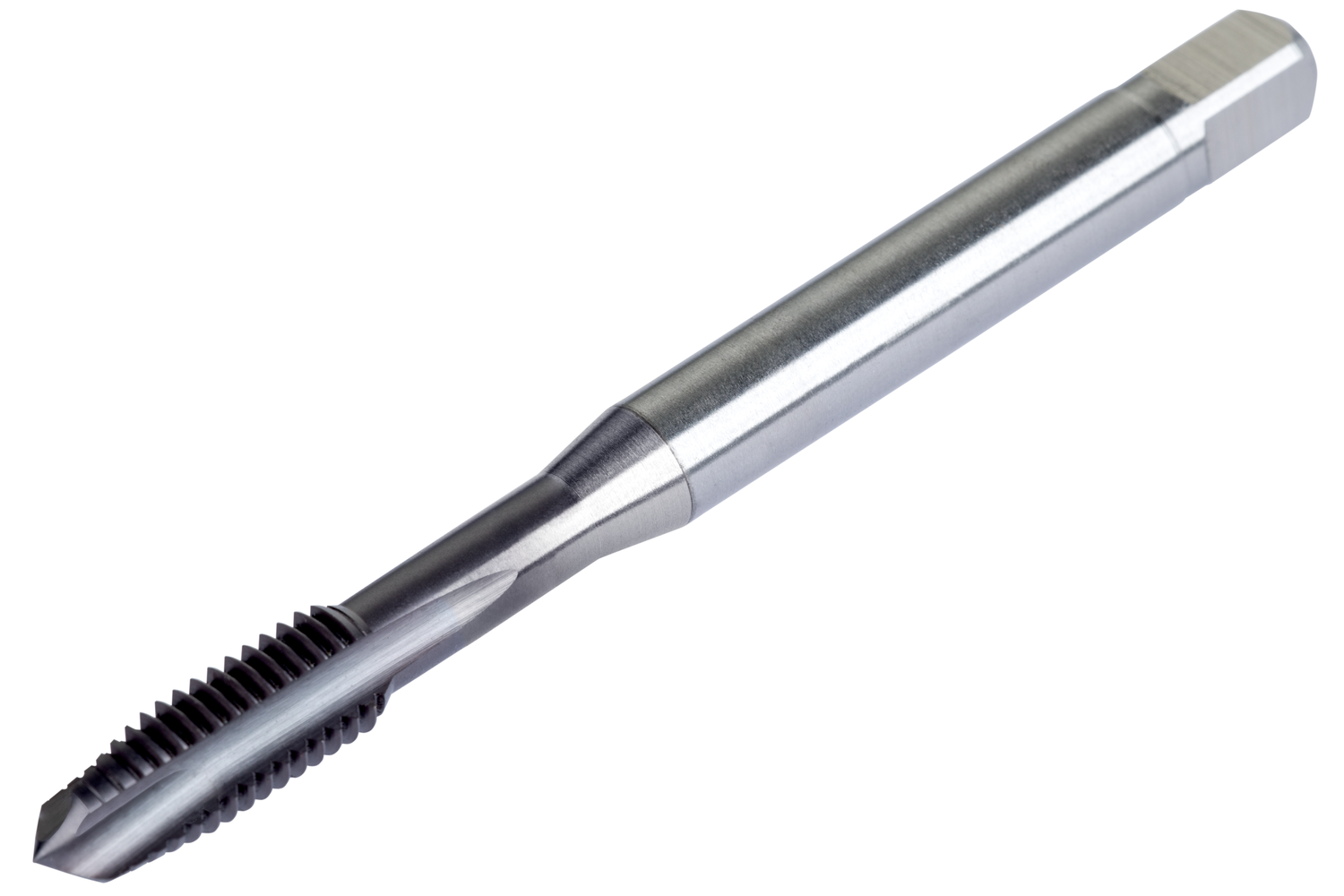

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397UNC5/16 HSS / HSCo DIN Taps
$69.11$62.83 Ex. GST
Thread size UNC 0.313 inch – 18 TPI, with thread tolerance class 93707, and maximum threading depth 0.7825 inches.
3603607095584
Description: Value Product name: E397UNC5/16 Product number (SAP): 86046805 EAN number: 3603607095584 Thread diameter size (TDZ): 5/16 Thread diameter – millimeter (TD): 7.938 mm Threads per inch (TPI): 18 Overall length – millimeter (OAL): 90 mm Overall length – inch (OAL): 3.543 inch Threading length – millimeter (THL): 18 mm Threading length – inch (THL): 0.709 inch Connection diameter – inch (DCON MS): 0.315 inch Connection diameter – millimeter (DCON MS): 8 mm Flute count (NOF): 3 Usable Length – inch (LU): 1.378 inch Usable Length – millimeter (LU): 35 mm Clamping width – inch (WSC): 0.244 inch Clamping width – millimeter (WSC): 6.2 mm Clamping Length – inch (LCS): 0.354 inch Clamping Length – millimeter (LSC): 9 mm Premachined hole diameter – inch (PHD): 0.26 inch Premachined hole diameter – millimeter (PHD): 6.6 mm Gross weight – grams: 34 ISO: E397UNC5/16
