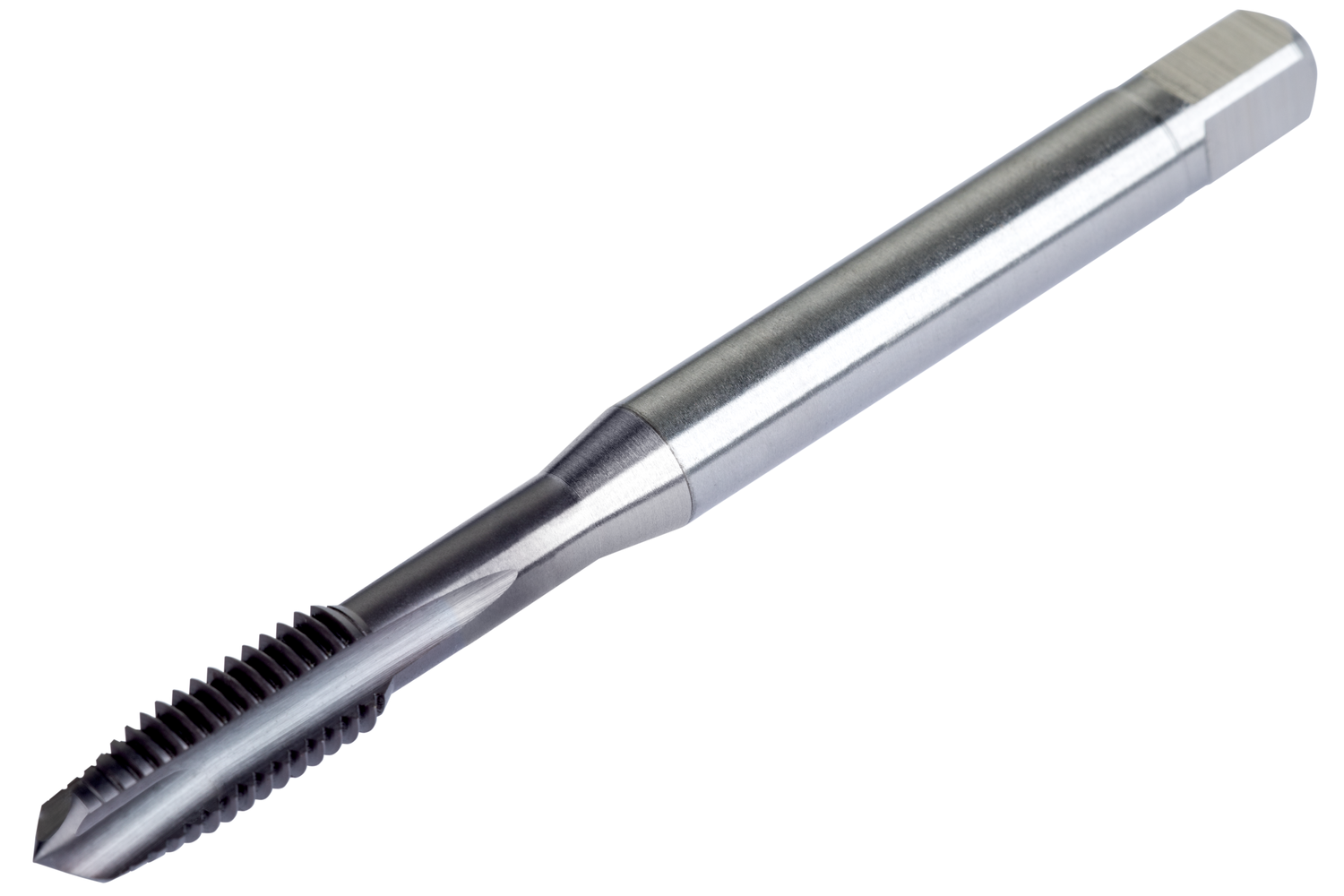

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397UNC8X32 HSS / HSCo DIN Taps
$56.31$51.19 Ex. GST
Thread size UNC 0.164 inch – 32 TPI, with thread tolerance class 93707, and maximum threading depth 0.41 inches.
3603607095553
Description: Value Product name: E397UNC8X32 Product number (SAP): 86046802 EAN number: 3603607095553 Thread diameter size (TDZ): 8 Thread diameter – millimeter (TD): 4.166 mm Threads per inch (TPI): 32 Overall length – millimeter (OAL): 63 mm Overall length – inch (OAL): 2.48 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.472 inch Connection diameter – inch (DCON MS): 0.177 inch Connection diameter – millimeter (DCON MS): 4.5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.827 inch Usable Length – millimeter (LU): 21 mm Clamping width – inch (WSC): 0.134 inch Clamping width – millimeter (WSC): 3.4 mm Clamping Length – inch (LCS): 0.236 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.138 inch Premachined hole diameter – millimeter (PHD): 3.5 mm Gross weight – grams: 10 ISO: E397UNC8X32
