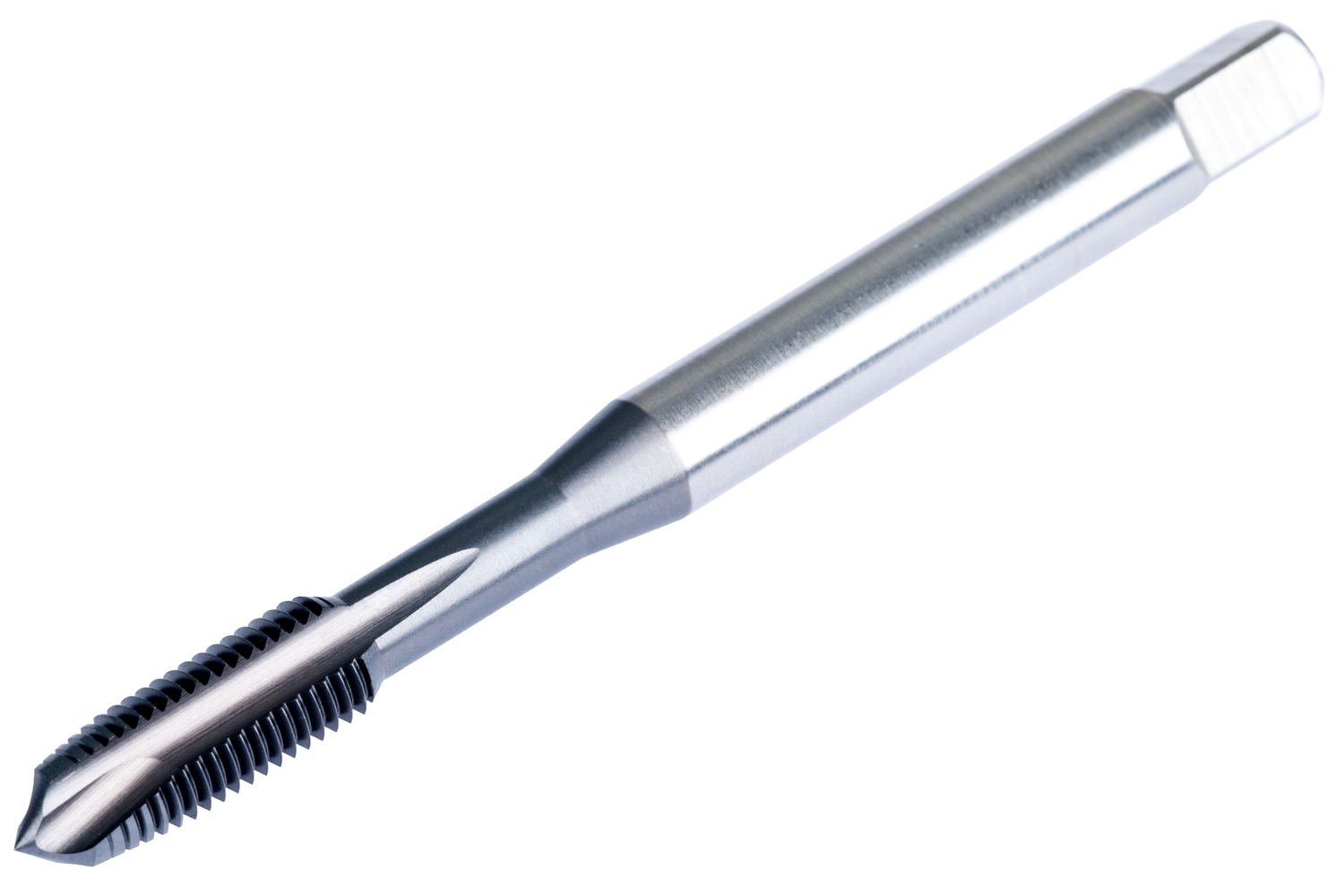

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E397UNF3/8 HSS / HSCo DIN Taps
$92.91$84.46 Ex. GST
Thread size UNF 0.375 inch – 24 TPI, with thread tolerance class 93707, and maximum threading depth 0.9375 inches.
3603607095690
Description: Value Product name: E397UNF3/8 Product number (SAP): 86046816 EAN number: 3603607095690 Thread diameter size (TDZ): 3/8 Thread diameter – millimeter (TD): 9.525 mm Threads per inch (TPI): 24 Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.787 inch Connection diameter – inch (DCON MS): 0.394 inch Connection diameter – millimeter (DCON MS): 10 mm Flute count (NOF): 3 Usable Length – inch (LU): 1.535 inch Usable Length – millimeter (LU): 39 mm Clamping width – inch (WSC): 0.315 inch Clamping width – millimeter (WSC): 8 mm Clamping Length – inch (LCS): 0.433 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.335 inch Premachined hole diameter – millimeter (PHD): 8.5 mm Gross weight – grams: 54 ISO: E397UNF3/8
