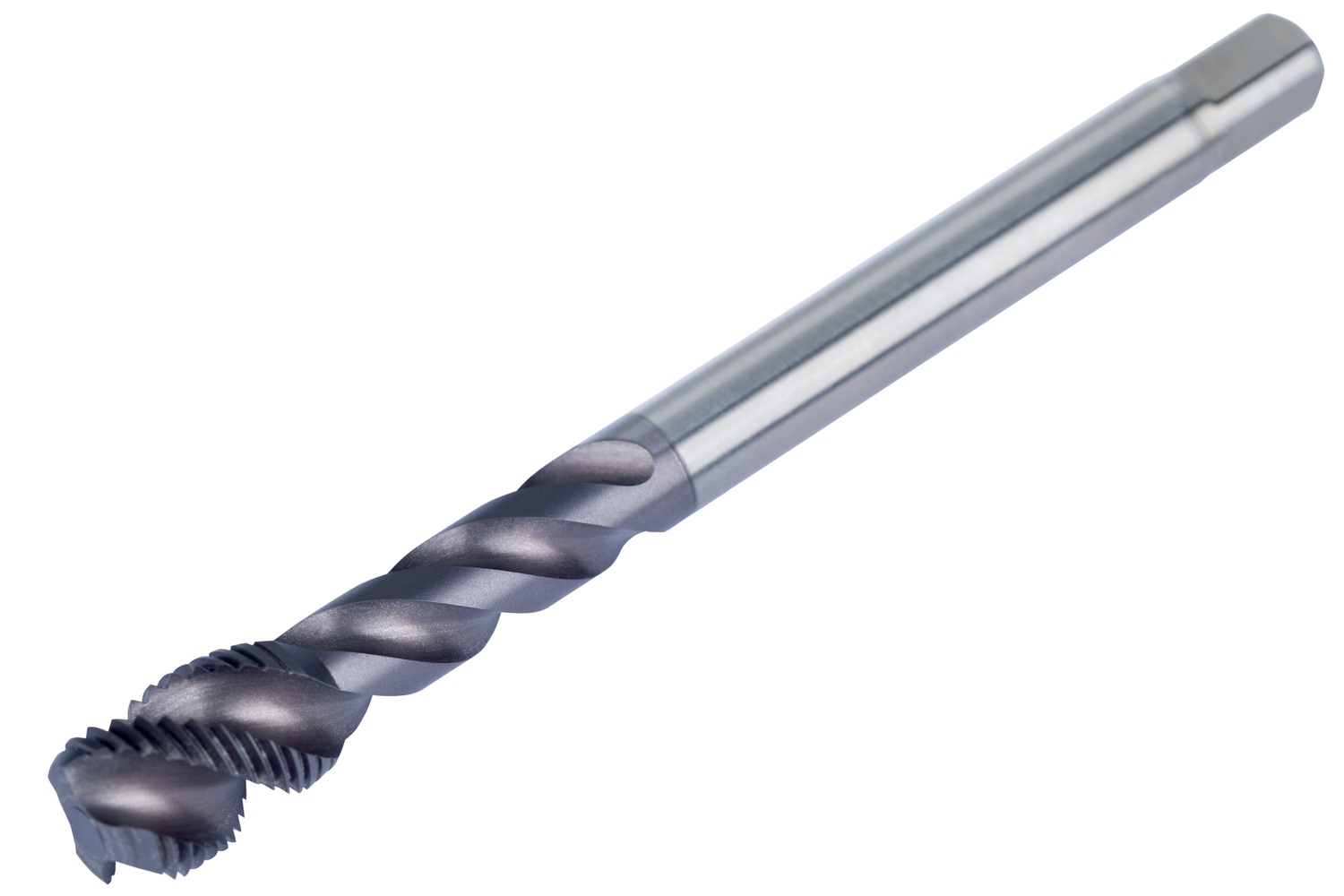

DORMER E398M10X1.0 HSS / HSCo DIN Taps

Description

Thread size MF10 mm x 1 mm, with thread tolerance class 93707, and maximum threading depth 25 mm.

Weight	0.0290 kg
Dimensions
barcode	3603607095478
Additional Information	Description: Value Product name: E398M10X1.0 Product number (SAP): 86046794 EAN number: 3603607095478 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1 mm Overall length – millimeter (OAL): 90 mm Overall length – inch (OAL): 3.543 inch Threading length – millimeter (THL): 13 mm Threading length – inch (THL): 0.512 inch Connection diameter – inch (DCON MS): 0.276 inch Connection diameter – millimeter (DCON MS): 7 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.217 inch Clamping width – millimeter (WSC): 5.5 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.354 inch Premachined hole diameter – millimeter (PHD): 9 mm Gross weight – grams: 33 ISO: E398M10X1.0
