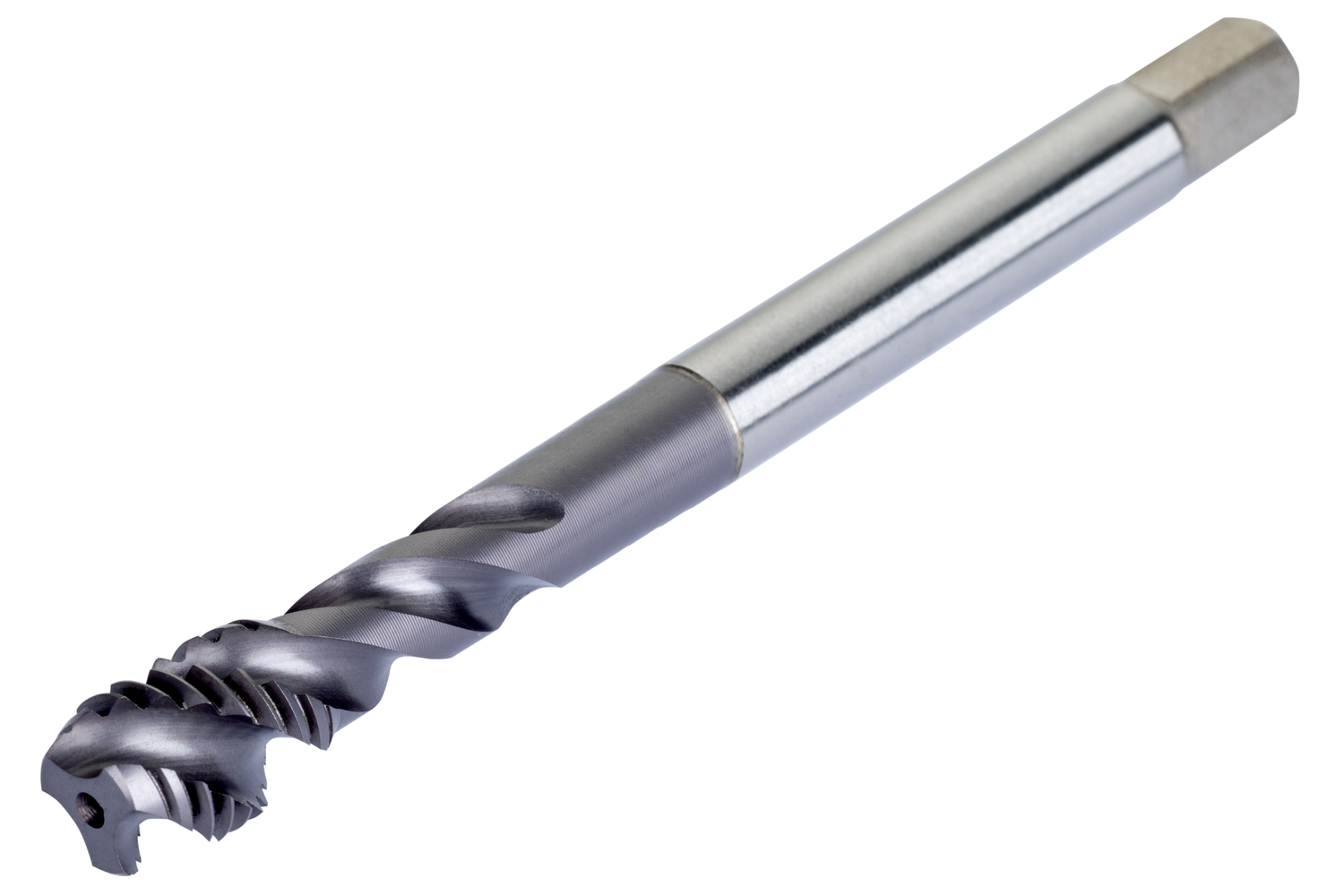

DORMER E398M12 HSS / HSCo DIN Taps

Description

Thread size M12 mm x 1.75 mm, with thread tolerance class 93707, and maximum threading depth 30 mm.

Weight	0.0530 kg
Dimensions
barcode	3603607095287
Additional Information	Description: Value Product name: E398M12 Product number (SAP): 86046775 EAN number: 3603607095287 Thread diameter size (TDZ): 12 Thread pitch – millimeter (TP): 1.75 mm Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.331 inch Threading length – millimeter (THL): 16 mm Threading length – inch (THL): 0.63 inch Connection diameter – inch (DCON MS): 0.354 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.276 inch Clamping width – millimeter (WSC): 7 mm Clamping Length – inch (LCS): 0.394 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.406 inch Premachined hole diameter – millimeter (PHD): 10.3 mm Gross weight – grams: 56 ISO: E398M12
