Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398M14 HSS / HSCo DIN Taps
$166.55$151.41 Ex. GST

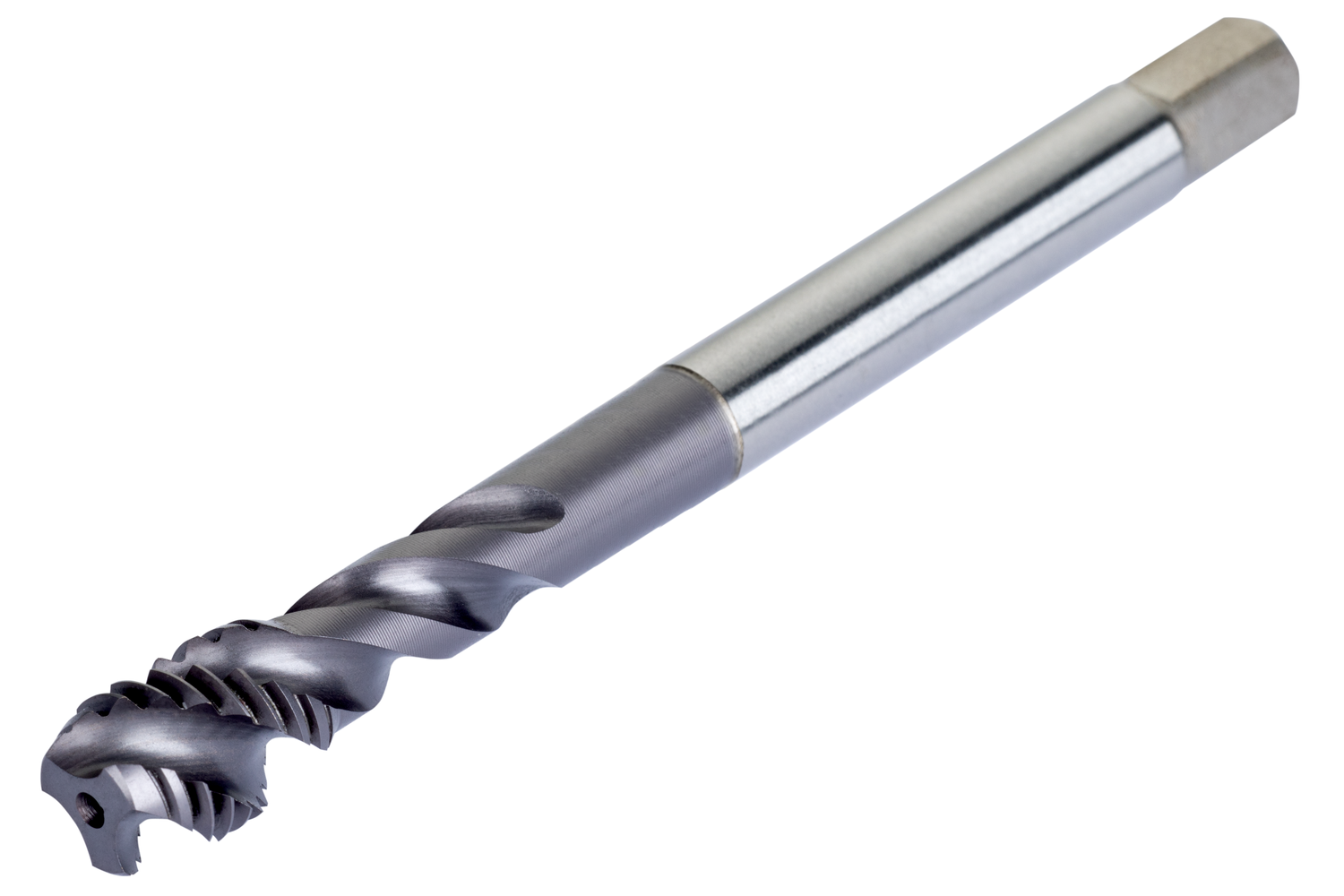

Thread size M14 mm x 2 mm, with thread tolerance class 93707, and maximum threading depth 35 mm.
3603607095294
Description: Value Product name: E398M14 Product number (SAP): 86046776 EAN number: 3603607095294 Thread diameter size (TDZ): 14 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.331 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.787 inch Connection diameter – inch (DCON MS): 0.433 inch Connection diameter – millimeter (DCON MS): 11 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.354 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.472 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.472 inch Premachined hole diameter – millimeter (PHD): 12 mm Gross weight – grams: 78.7 ISO: E398M14
