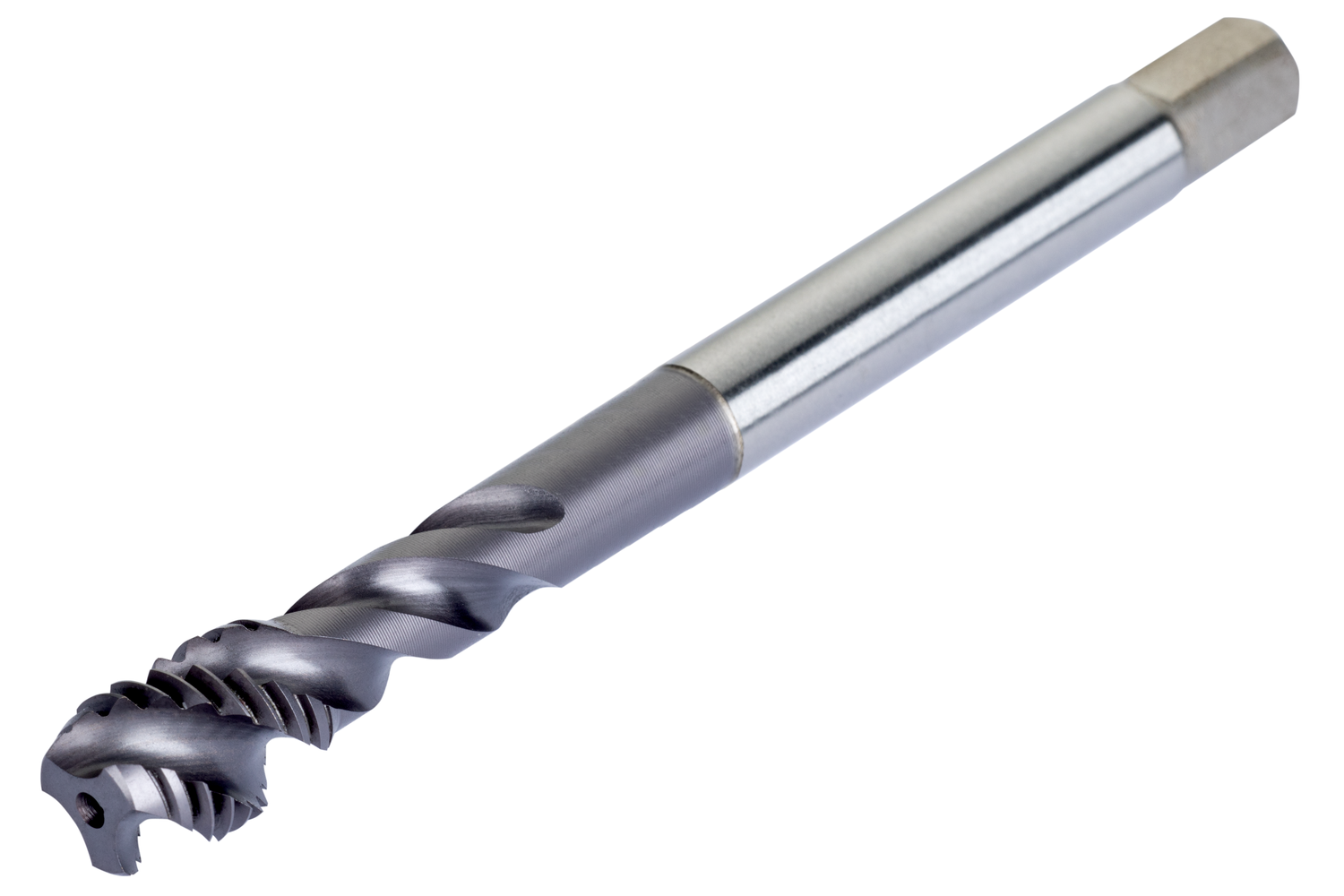

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398M16 HSS / HSCo DIN Taps
$171.08$155.53 Ex. GST
Thread size M16 mm x 2 mm, with thread tolerance class 93707, and maximum threading depth 40 mm.
3603607095300
Description: Value Product name: E398M16 Product number (SAP): 86046777 EAN number: 3603607095300 Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.331 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.787 inch Connection diameter – inch (DCON MS): 0.472 inch Connection diameter – millimeter (DCON MS): 12 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.354 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.472 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.551 inch Premachined hole diameter – millimeter (PHD): 14 mm Gross weight – grams: 92.6 ISO: E398M16
