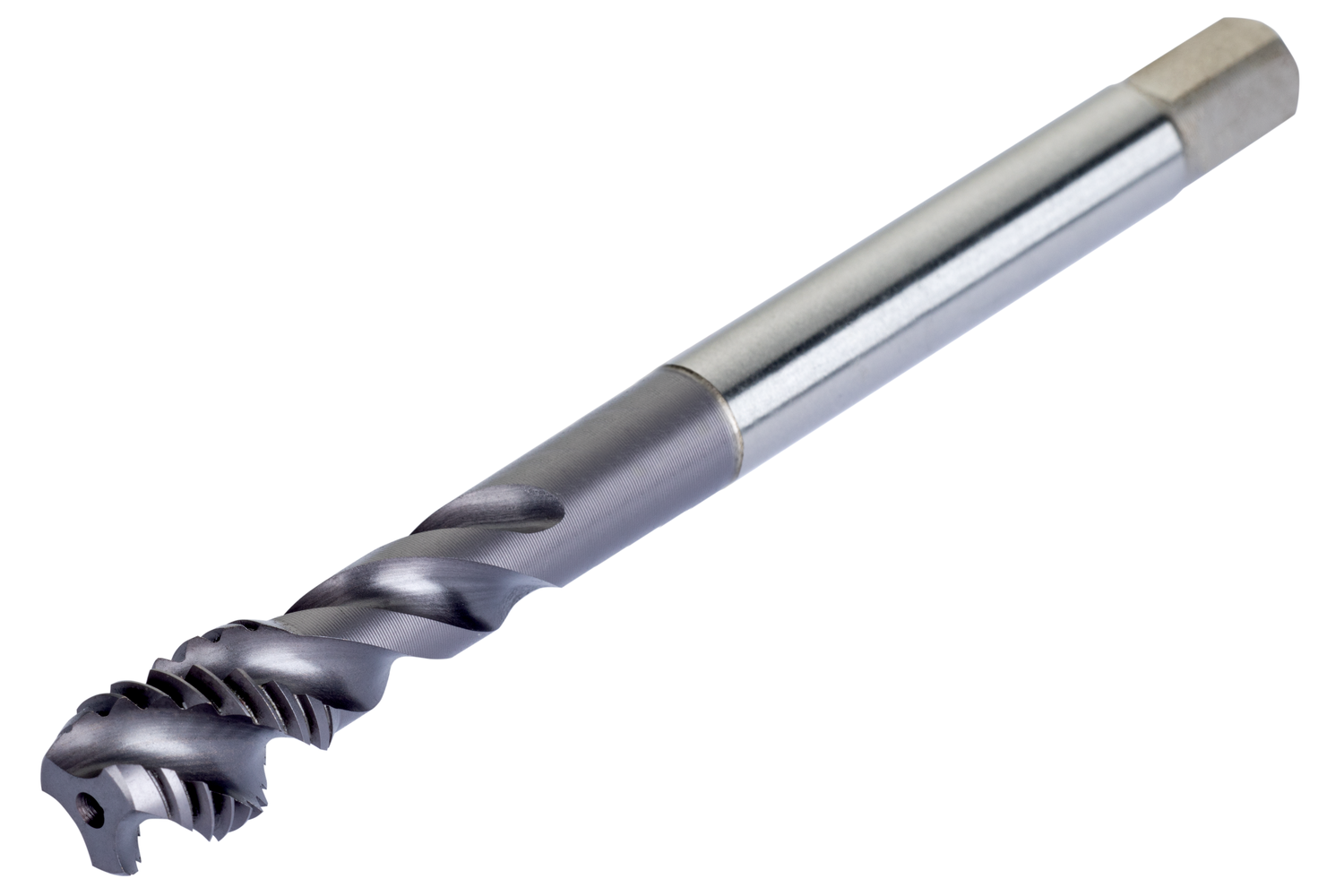

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398M24 HSS / HSCo DIN Taps
$343.30$312.09 Ex. GST
Thread size M24 mm x 3 mm, with thread tolerance class 93707, and maximum threading depth 60 mm.
3603607095348
Description: Value Product name: E398M24 Product number (SAP): 86046781 EAN number: 3603607095348 Thread diameter size (TDZ): 24 Thread pitch – millimeter (TP): 3 mm Overall length – millimeter (OAL): 160 mm Overall length – inch (OAL): 6.299 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.181 inch Connection diameter – inch (DCON MS): 0.709 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.571 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.669 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.827 inch Premachined hole diameter – millimeter (PHD): 21 mm Gross weight – grams: 299.3 ISO: E398M24
