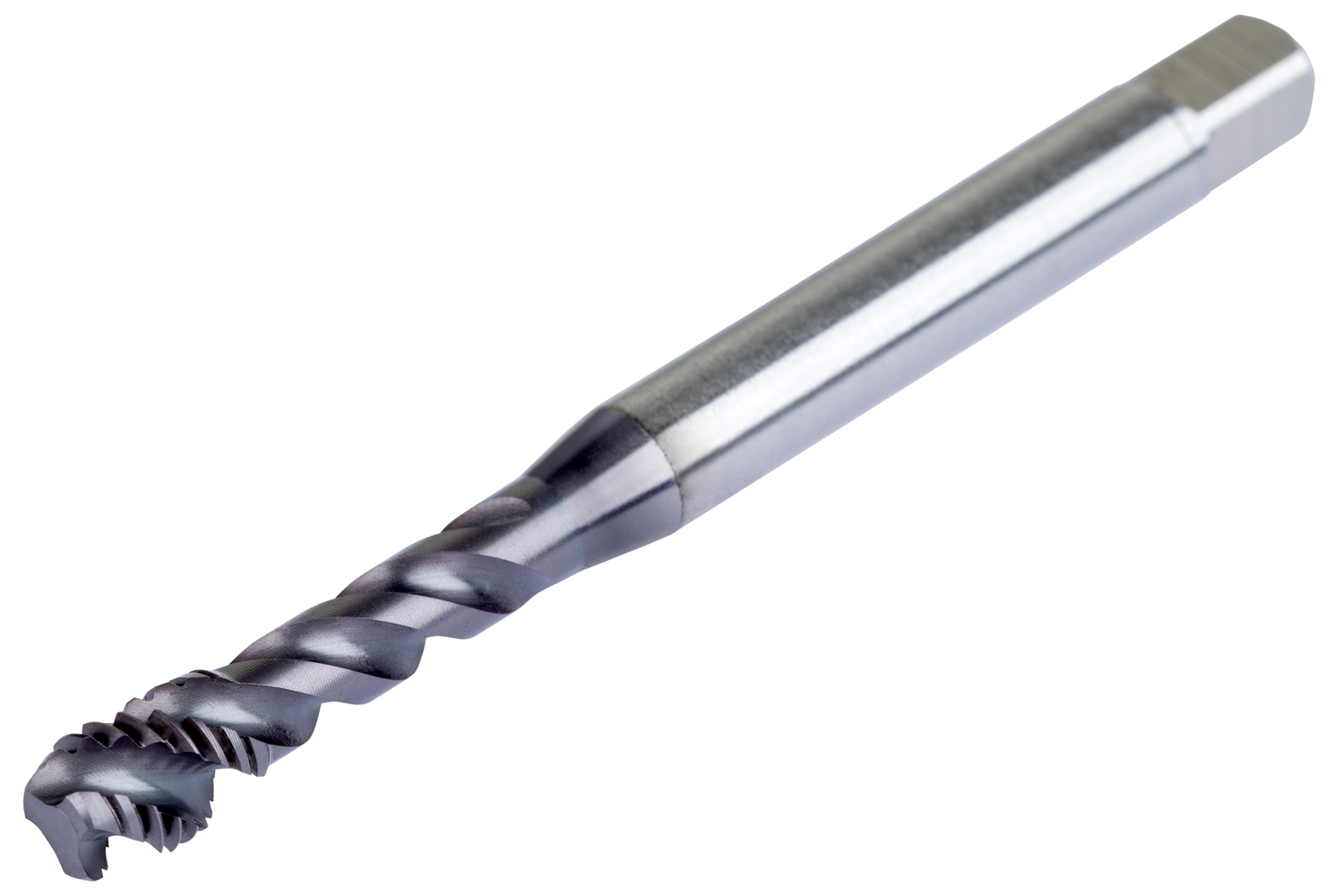

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398M3 HSS / HSCo DIN Taps
$62.32$56.65 Ex. GST
Thread size M3 mm x 0.5 mm, with thread tolerance class 93707, and maximum threading depth 7.5 mm.
3603607095225
Description: Value Product name: E398M3 Product number (SAP): 86046769 EAN number: 3603607095225 Thread diameter size (TDZ): 3 Thread pitch – millimeter (TP): 0.5 mm Overall length – millimeter (OAL): 56 mm Overall length – inch (OAL): 2.205 inch Threading length – millimeter (THL): 6 mm Threading length – inch (THL): 0.236 inch Connection diameter – inch (DCON MS): 0.138 inch Connection diameter – millimeter (DCON MS): 3.5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.709 inch Usable Length – millimeter (LU): 18 mm Clamping width – inch (WSC): 0.106 inch Clamping width – millimeter (WSC): 2.7 mm Clamping Length – inch (LCS): 0.236 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.098 inch Premachined hole diameter – millimeter (PHD): 2.5 mm Gross weight – grams: 6 ISO: E398M3
