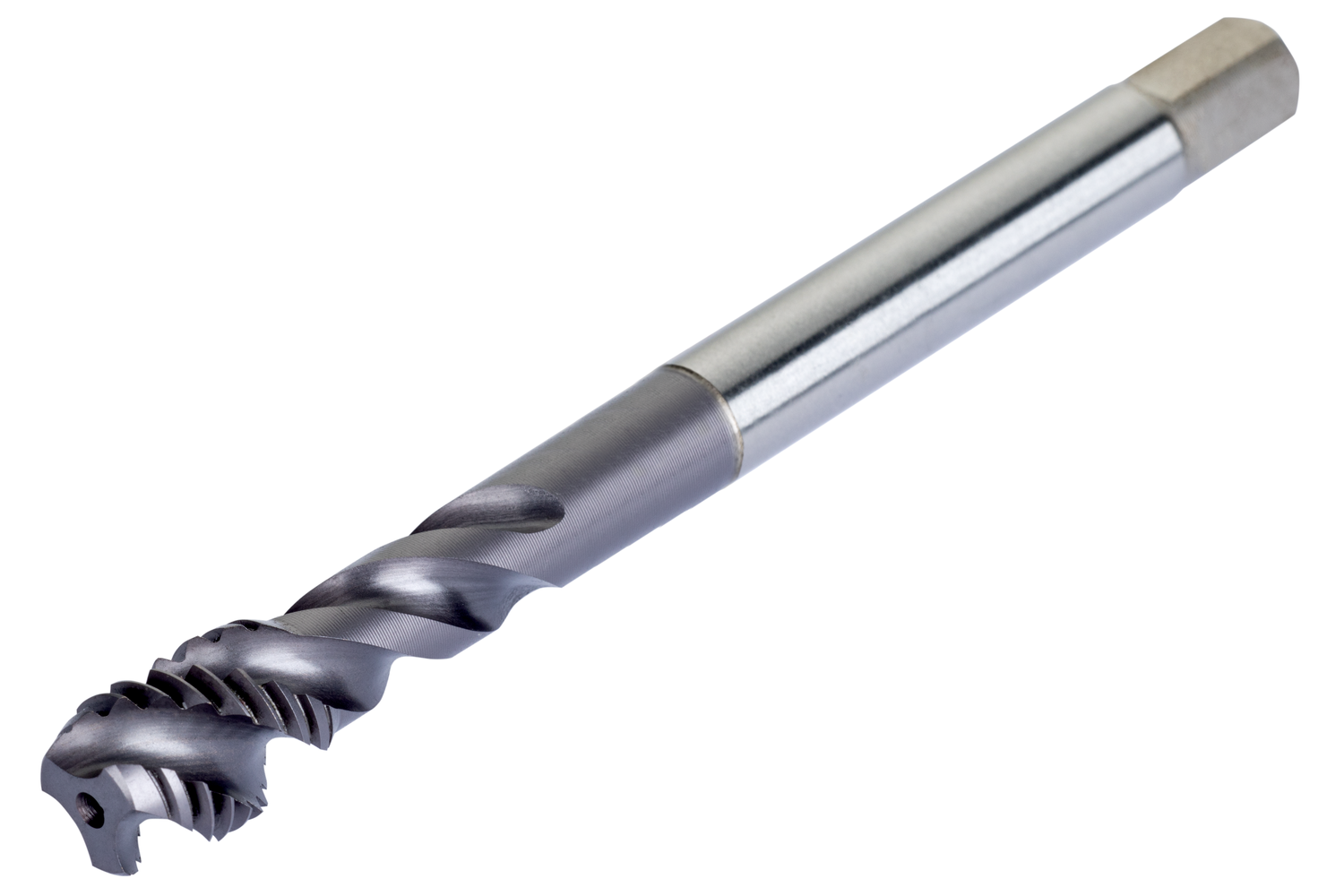

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398M30 HSS / HSCo DIN Taps
$582.36$529.42 Ex. GST
Thread size M30 mm x 3.5 mm, with thread tolerance class 93707, and maximum threading depth 75 mm.
3603607095362
Description: Value Product name: E398M30 Product number (SAP): 86046783 EAN number: 3603607095362 Thread diameter size (TDZ): 30 Thread pitch – millimeter (TP): 3.5 mm Overall length – millimeter (OAL): 180 mm Overall length – inch (OAL): 7.087 inch Threading length – millimeter (THL): 36 mm Threading length – inch (THL): 1.417 inch Connection diameter – inch (DCON MS): 0.866 inch Connection diameter – millimeter (DCON MS): 22 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.709 inch Clamping width – millimeter (WSC): 18 mm Clamping Length – inch (LCS): 0.827 inch Clamping Length – millimeter (LSC): 21 mm Premachined hole diameter – inch (PHD): 1.043 inch Premachined hole diameter – millimeter (PHD): 26.5 mm Gross weight – grams: 505 ISO: E398M30
