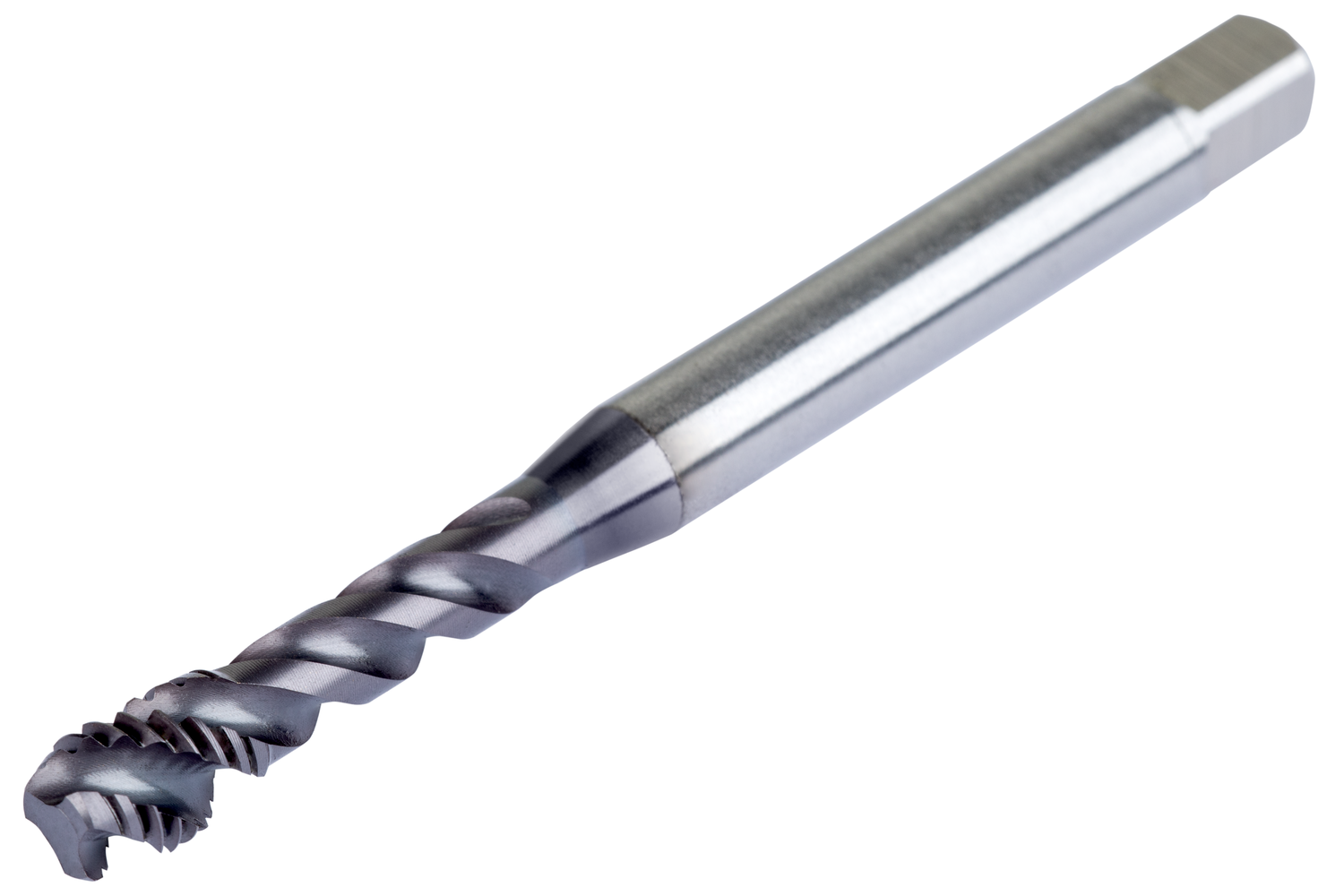

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398M5 HSS / HSCo DIN Taps
$66.29$60.26 Ex. GST
Thread size M5 mm x 0.8 mm, with thread tolerance class 93707, and maximum threading depth 12.5 mm.
3603607095249
Description: Value Product name: E398M5 Product number (SAP): 86046771 EAN number: 3603607095249 Thread diameter size (TDZ): 5 Thread pitch – millimeter (TP): 0.8 mm Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.756 inch Threading length – millimeter (THL): 8 mm Threading length – inch (THL): 0.315 inch Connection diameter – inch (DCON MS): 0.236 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.984 inch Usable Length – millimeter (LU): 25 mm Clamping width – inch (WSC): 0.193 inch Clamping width – millimeter (WSC): 4.9 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.165 inch Premachined hole diameter – millimeter (PHD): 4.2 mm Gross weight – grams: 14.5 ISO: E398M5
