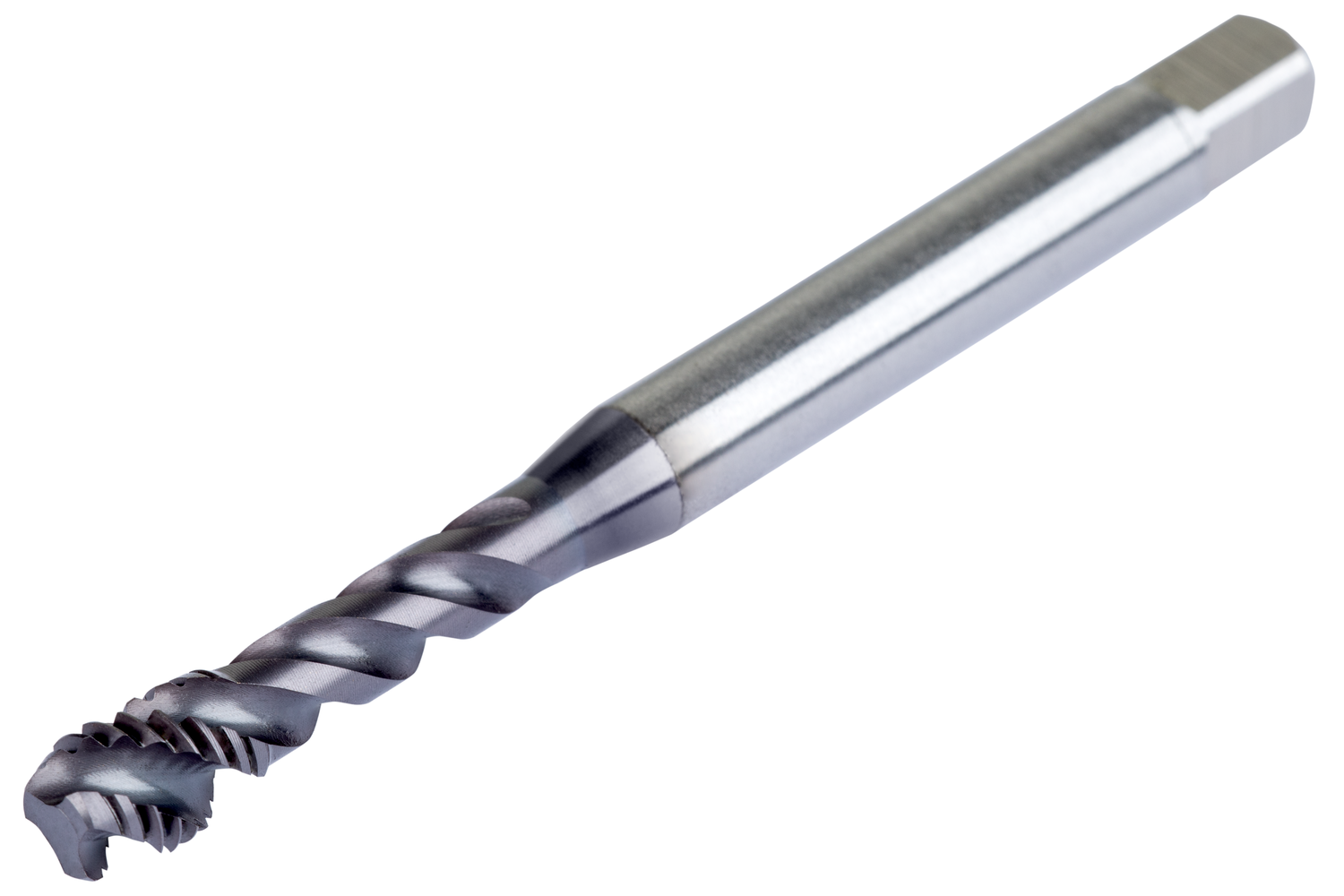

DORMER E398M8 HSS / HSCo DIN Taps

Description

Thread size M8 mm x 1.25 mm, with thread tolerance class 93707, and maximum threading depth 20 mm.

Weight	0.0310 kg
Dimensions
barcode	3603607095263
Additional Information	Description: Value Product name: E398M8 Product number (SAP): 86046773 EAN number: 3603607095263 Thread diameter size (TDZ): 8 Thread pitch – millimeter (TP): 1.25 mm Overall length – millimeter (OAL): 90 mm Overall length – inch (OAL): 3.543 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.472 inch Connection diameter – inch (DCON MS): 0.315 inch Connection diameter – millimeter (DCON MS): 8 mm Flute count (NOF): 3 Usable Length – inch (LU): 1.378 inch Usable Length – millimeter (LU): 35 mm Clamping width – inch (WSC): 0.244 inch Clamping width – millimeter (WSC): 6.2 mm Clamping Length – inch (LCS): 0.354 inch Clamping Length – millimeter (LSC): 9 mm Premachined hole diameter – inch (PHD): 0.268 inch Premachined hole diameter – millimeter (PHD): 6.8 mm Gross weight – grams: 32.7 ISO: E398M8
