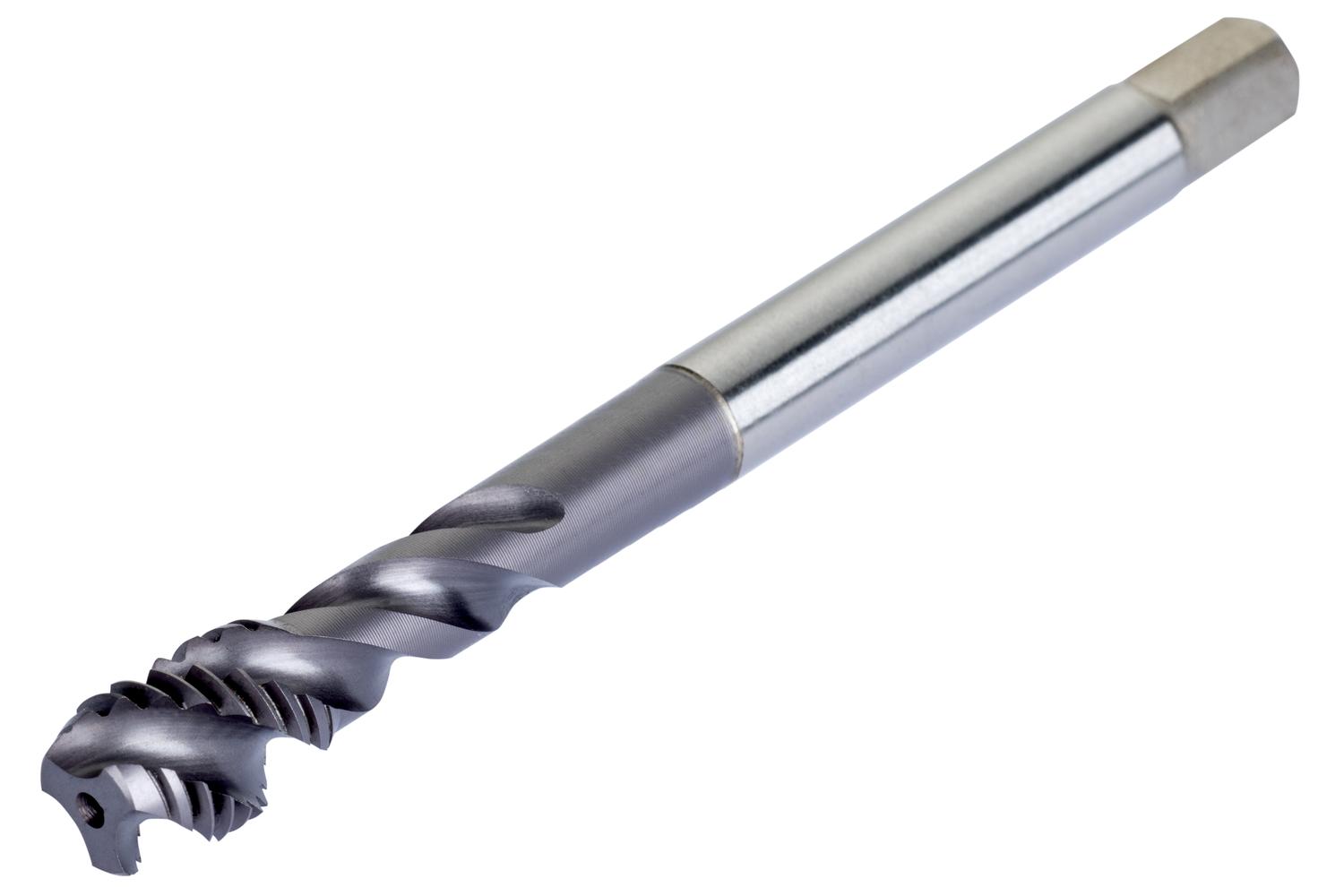

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398UNC1/2 HSS / HSCo DIN Taps
$118.97$108.15 Ex. GST
Thread size UNC 0.5 inch – 13 TPI, with thread tolerance class 93707, and maximum threading depth 1.25 inches.
3603607095669
Description: Value Product name: E398UNC1/2 Product number (SAP): 86046813 EAN number: 3603607095669 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 12.7 mm Threads per inch (TPI): 13 Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.331 inch Threading length – millimeter (THL): 18 mm Threading length – inch (THL): 0.709 inch Connection diameter – inch (DCON MS): 0.354 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.276 inch Clamping width – millimeter (WSC): 7 mm Clamping Length – inch (LCS): 0.394 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.425 inch Premachined hole diameter – millimeter (PHD): 10.8 mm Gross weight – grams: 54.4 ISO: E398UNC1/2
