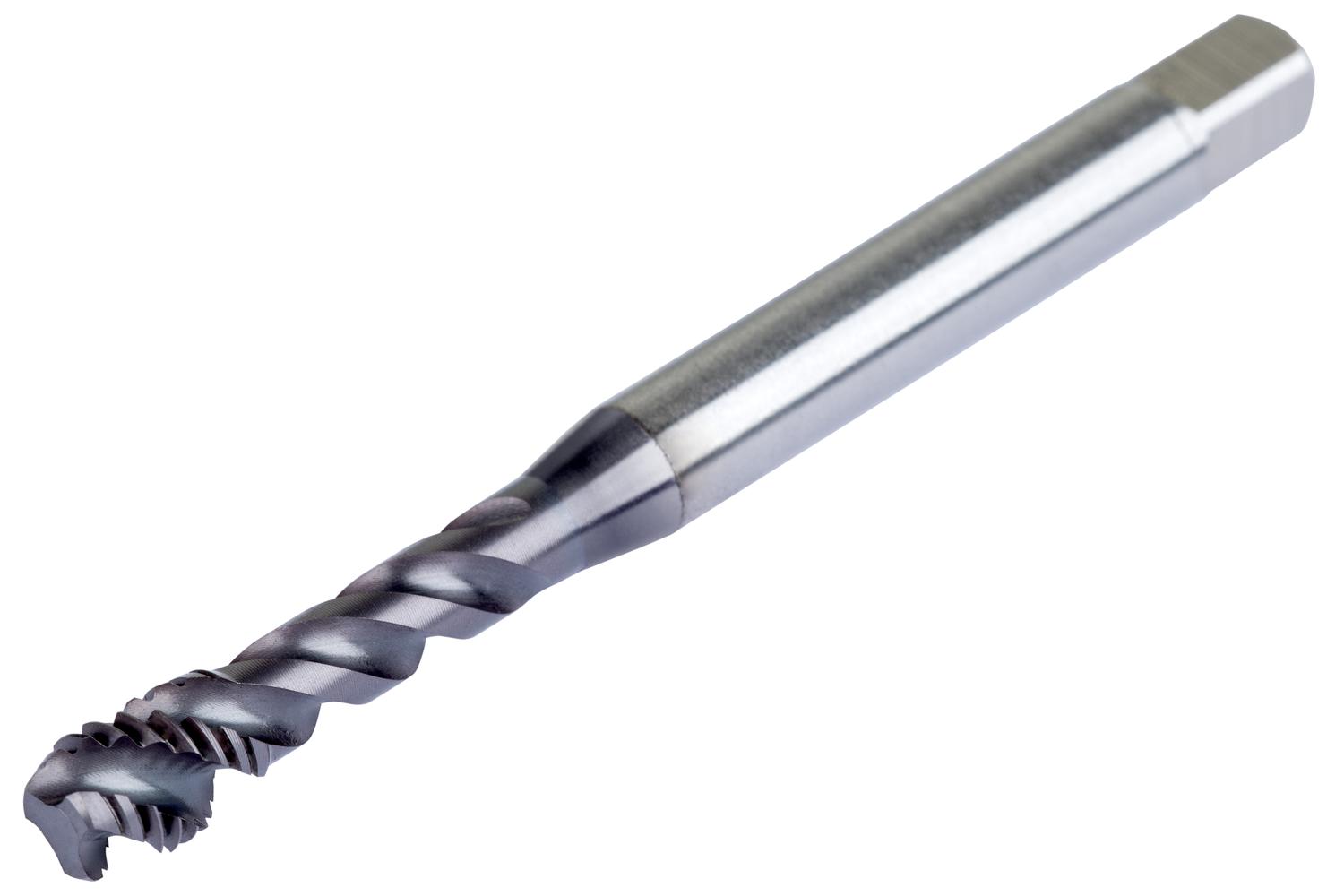

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398UNC10X24 HSS / HSCo DIN Taps
$65.71$59.74 Ex. GST
Thread size UNC 0.19 inch – 24 TPI, with thread tolerance class 93707, and maximum threading depth 0.475 inches.
3603607095621
Description: Value Product name: E398UNC10X24 Product number (SAP): 86046809 EAN number: 3603607095621 Thread diameter size (TDZ): 10 Thread diameter – millimeter (TD): 4.826 mm Threads per inch (TPI): 24 Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.756 inch Threading length – millimeter (THL): 8 mm Threading length – inch (THL): 0.315 inch Connection diameter – inch (DCON MS): 0.236 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.984 inch Usable Length – millimeter (LU): 25 mm Clamping width – inch (WSC): 0.193 inch Clamping width – millimeter (WSC): 4.9 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.154 inch Premachined hole diameter – millimeter (PHD): 3.9 mm Gross weight – grams: 19.5 ISO: E398UNC10X24
