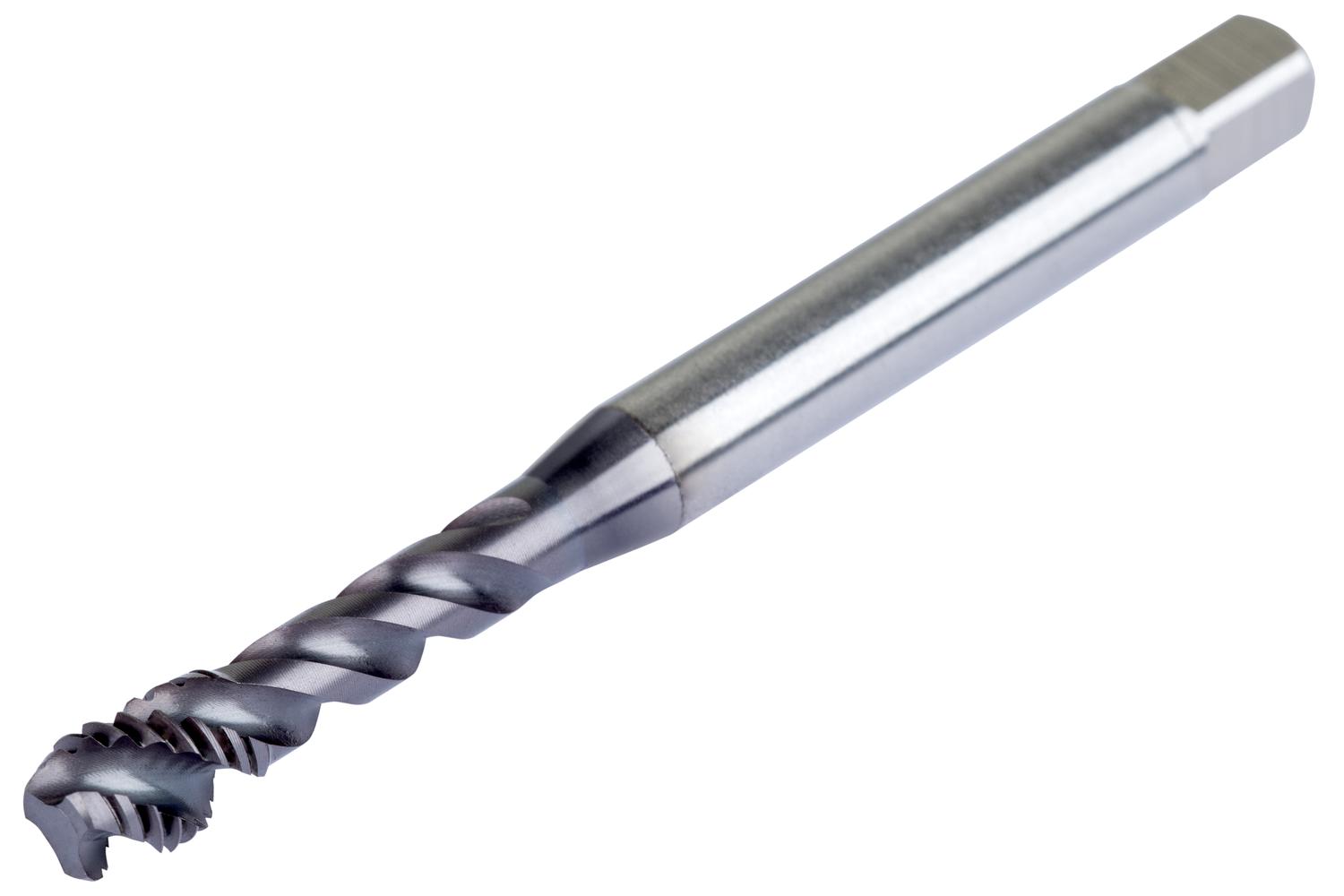

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E398UNC3/8 HSS / HSCo DIN Taps
$92.91$84.46 Ex. GST
Thread size UNC 0.375 inch – 16 TPI, with thread tolerance class 93707, and maximum threading depth 0.9375 inches.
3603607095652
Description: Value Product name: E398UNC3/8 Product number (SAP): 86046812 EAN number: 3603607095652 Thread diameter size (TDZ): 3/8 Thread diameter – millimeter (TD): 9.525 mm Threads per inch (TPI): 16 Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 15 mm Threading length – inch (THL): 0.591 inch Connection diameter – inch (DCON MS): 0.394 inch Connection diameter – millimeter (DCON MS): 10 mm Flute count (NOF): 3 Usable Length – inch (LU): 1.535 inch Usable Length – millimeter (LU): 39 mm Clamping width – inch (WSC): 0.315 inch Clamping width – millimeter (WSC): 8 mm Clamping Length – inch (LCS): 0.433 inch Clamping Length – millimeter (LSC): 11 mm Premachined hole diameter – inch (PHD): 0.315 inch Premachined hole diameter – millimeter (PHD): 8 mm Gross weight – grams: 52 ISO: E398UNC3/8
