DORMER E412M24 HSS / HSCo DIN Taps

Description

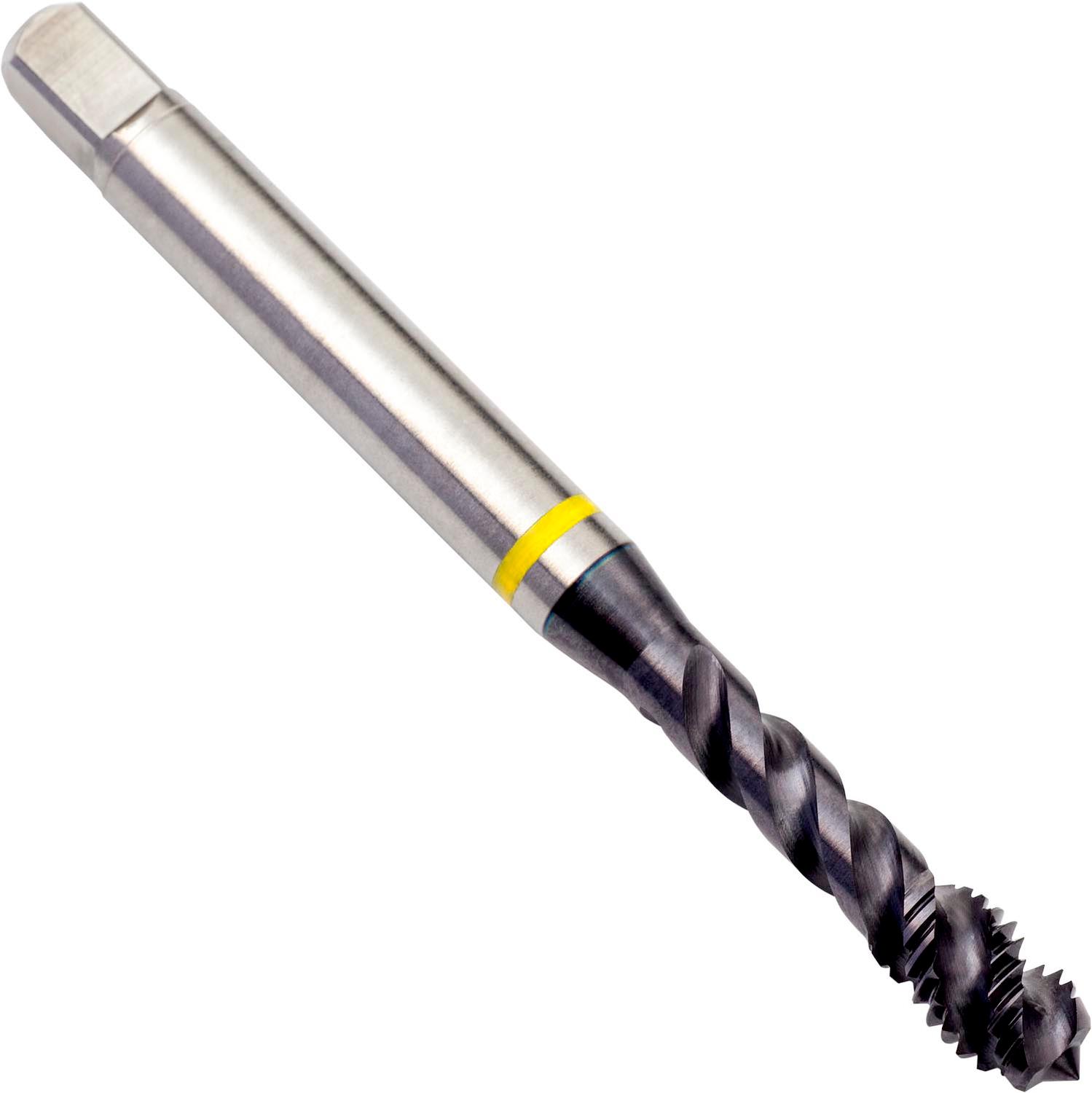

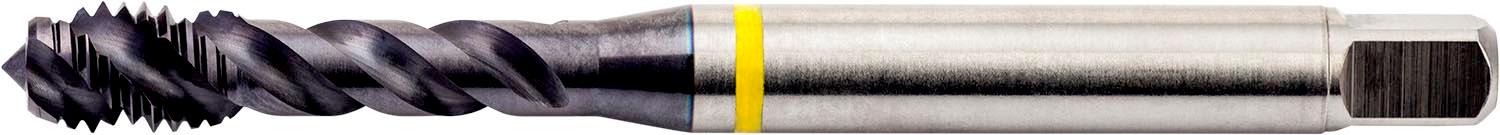

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel

Additional information

Weight	0.4697 kg
Dimensions
barcode

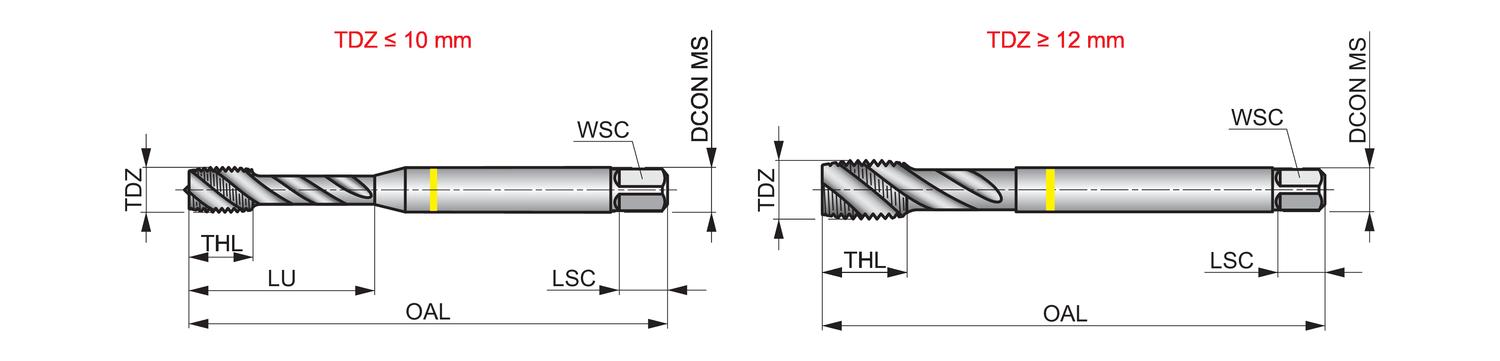

Additional Information	Description: Value Product name: E412M24 Product number (SAP): 86033662 EAN number: 7320760778975 Product Line: SHARK Thread diameter size (TDZ): 24 Thread pitch – millimeter (TP): 3 mm Overall length – millimeter (OAL): 160 mm Overall length – inch (OAL): 6.2992 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.1811 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.8268 inch Premachined hole diameter – millimeter (PHD): 21 mm Gross weight – grams: 299 ISO: E412M24 Ordering code ANSI: E412M24

Need Technical Advice?

Description

Additional information

Brand

DORMER
