DORMER E422M4 HSS / HSCo DIN Taps

Description

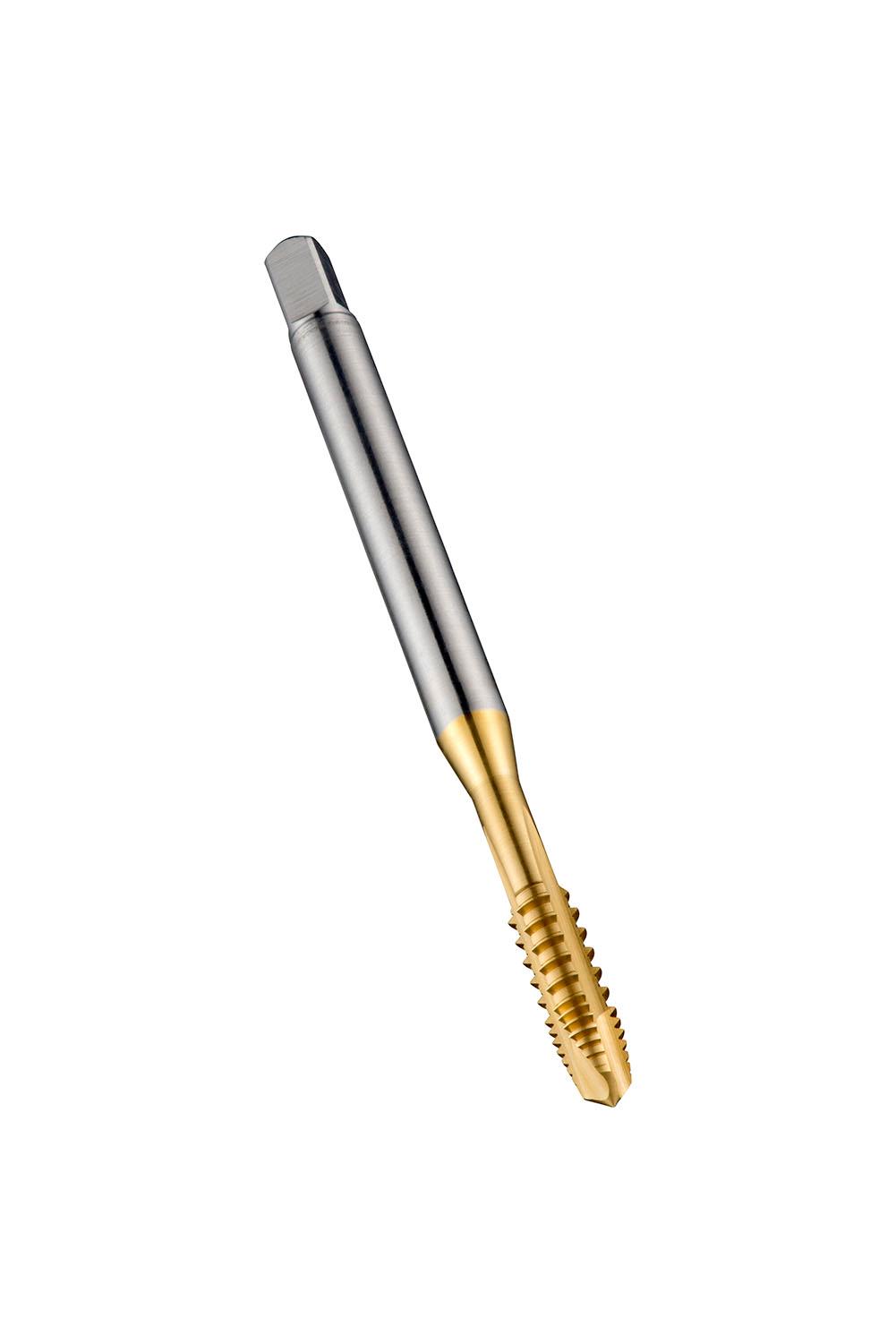

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Additional information

Weight	0.0858 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E422M4 Product number (SAP): 86016199 EAN number: 7320760092941 Thread diameter size (TDZ): 4 Thread pitch – millimeter (TP): 0.7 mm Overall length – millimeter (OAL): 63 mm Overall length – inch (OAL): 2.4803 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.4724 inch Connection diameter – inch (DCON MS): 0.1772 inch Connection diameter – millimeter (DCON MS): 4.5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.8268 inch Usable Length – millimeter (LU): 21 mm Clamping width – inch (WSC): 0.1339 inch Clamping width – millimeter (WSC): 3.4 mm Clamping Length – inch (LCS): 0.2362 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.1299 inch Premachined hole diameter – millimeter (PHD): 3.3 mm Gross weight – grams: 9 ISO: E422M4 Ordering code ANSI: E422M4

Need Technical Advice?

Description

Additional information

Brand

DORMER
