DORMER E423M14 HSS / HSCo DIN Taps

Description

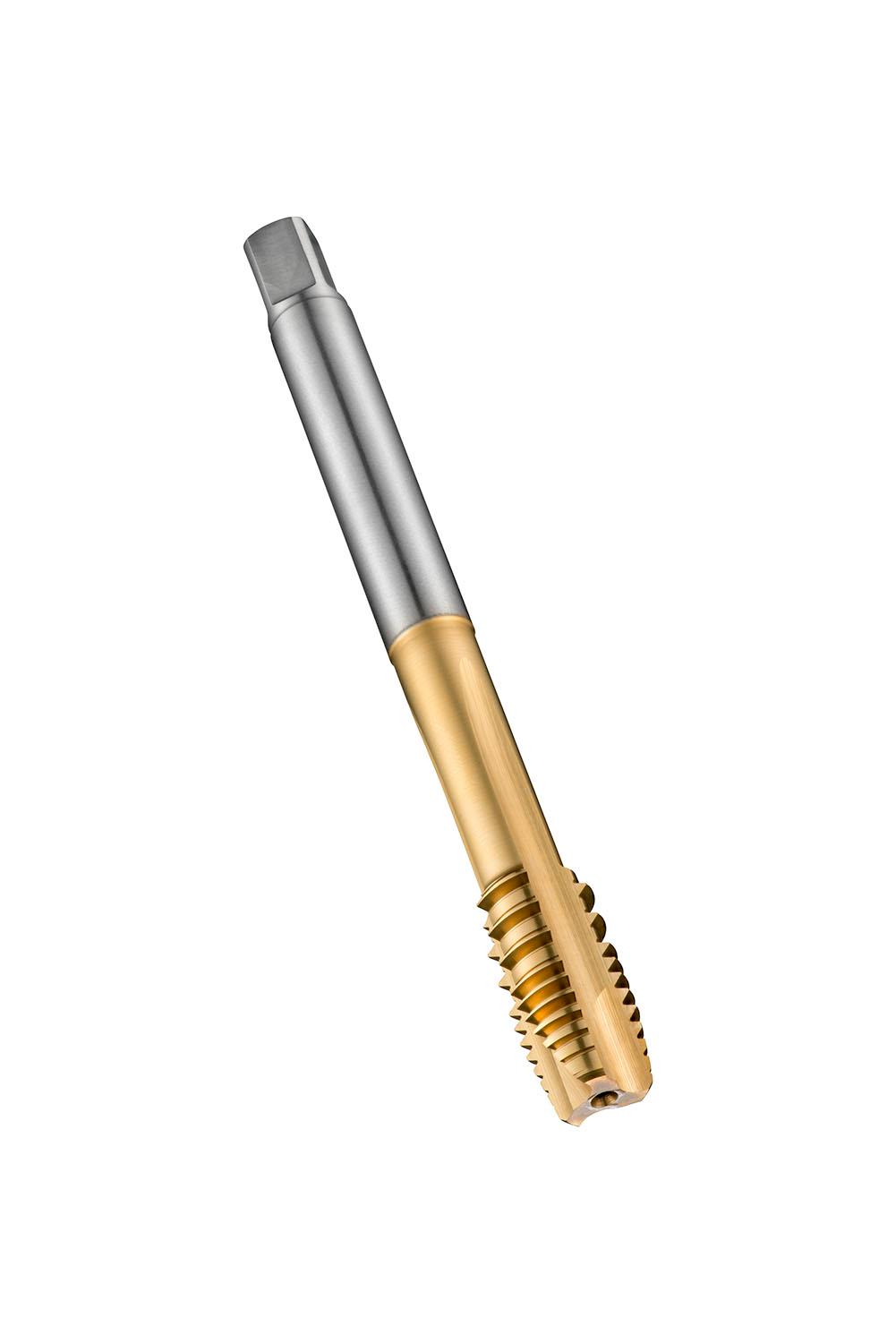

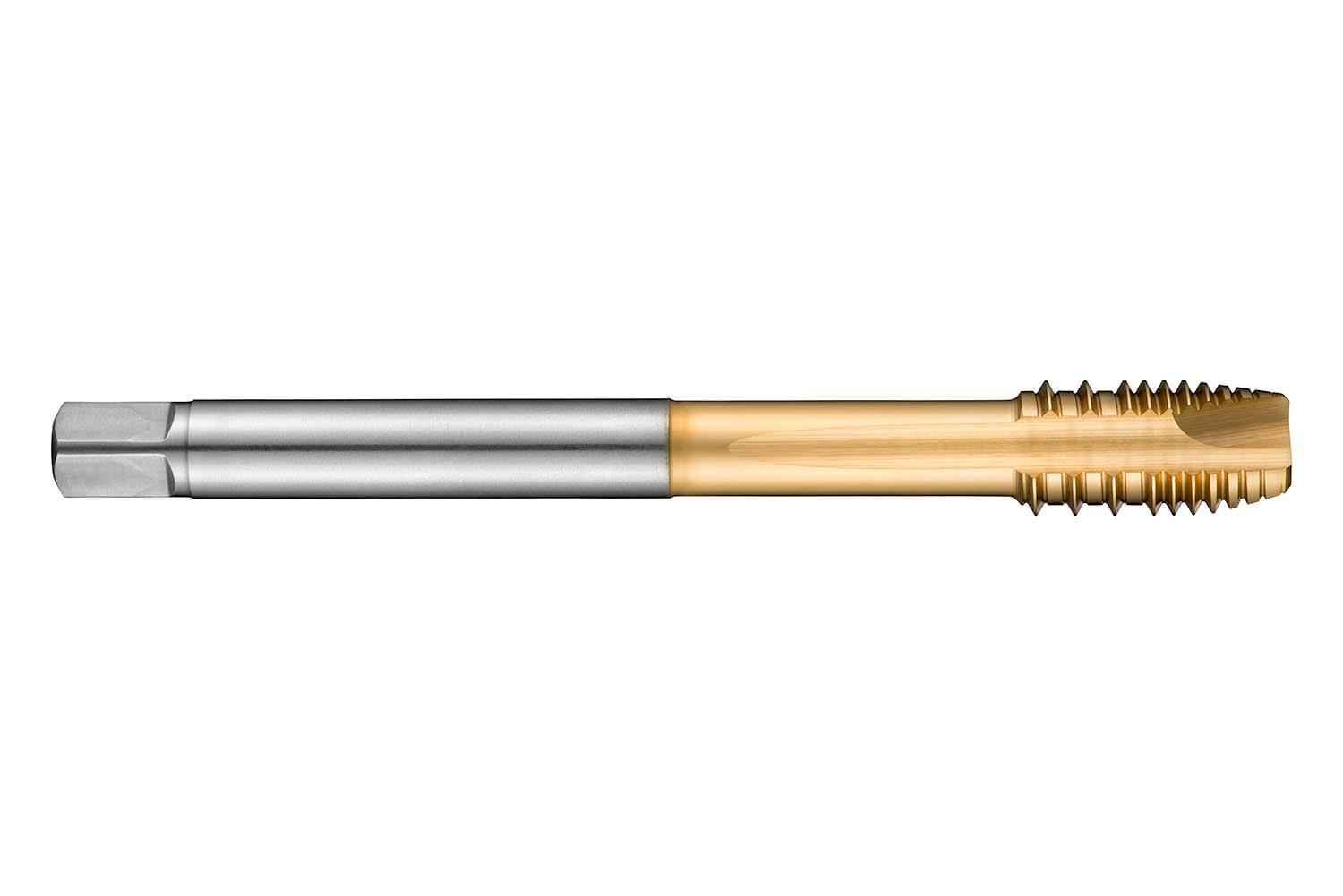

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Additional information

Weight	0.2266 kg
Dimensions
barcode

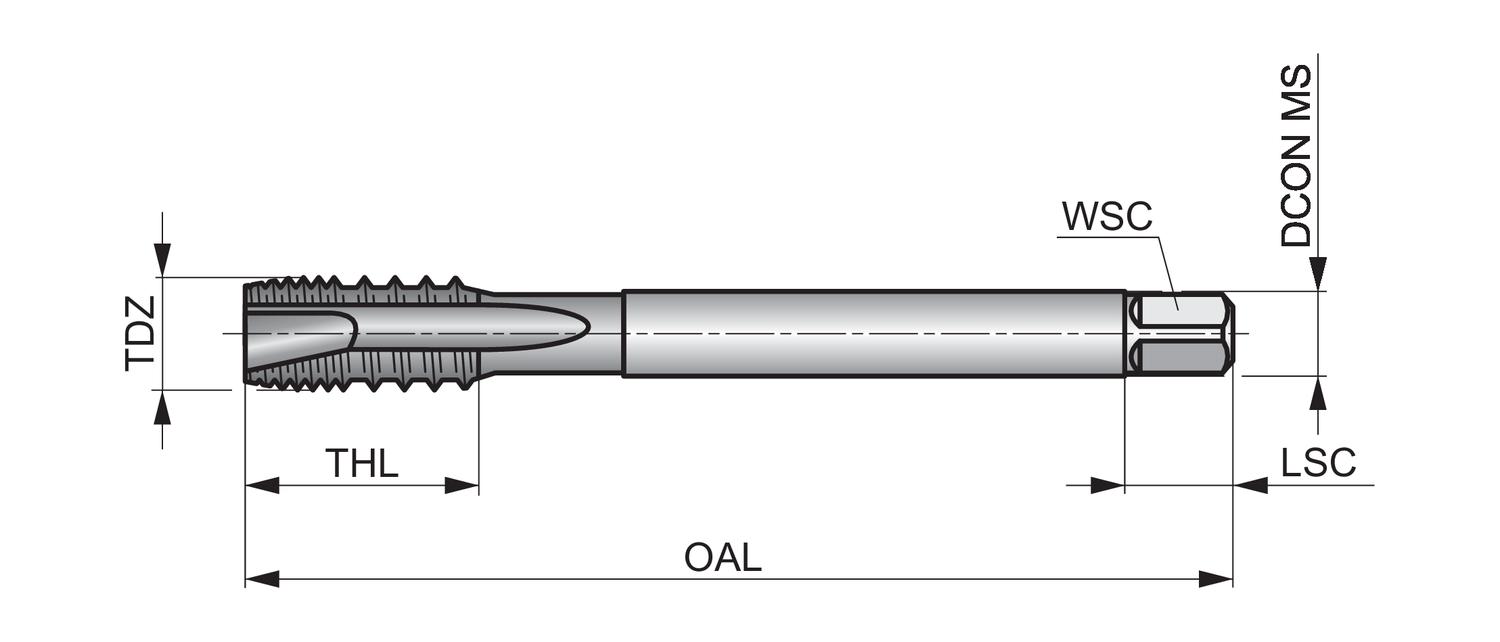

Additional Information	Description: Value Product name: E423M14 Product number (SAP): 86016204 EAN number: 7320760092996 Thread diameter size (TDZ): 14 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.3307 inch Threading length – millimeter (THL): 25 mm Threading length – inch (THL): 0.9843 inch Connection diameter – inch (DCON MS): 0.4331 inch Connection diameter – millimeter (DCON MS): 11 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.4724 inch Premachined hole diameter – millimeter (PHD): 12 mm Gross weight – grams: 79.8 ISO: E423M14 Ordering code ANSI: E423M14

Need Technical Advice?

Description

Additional information

Brand

DORMER
