DORMER E423M20 HSS / HSCo DIN Taps

Description

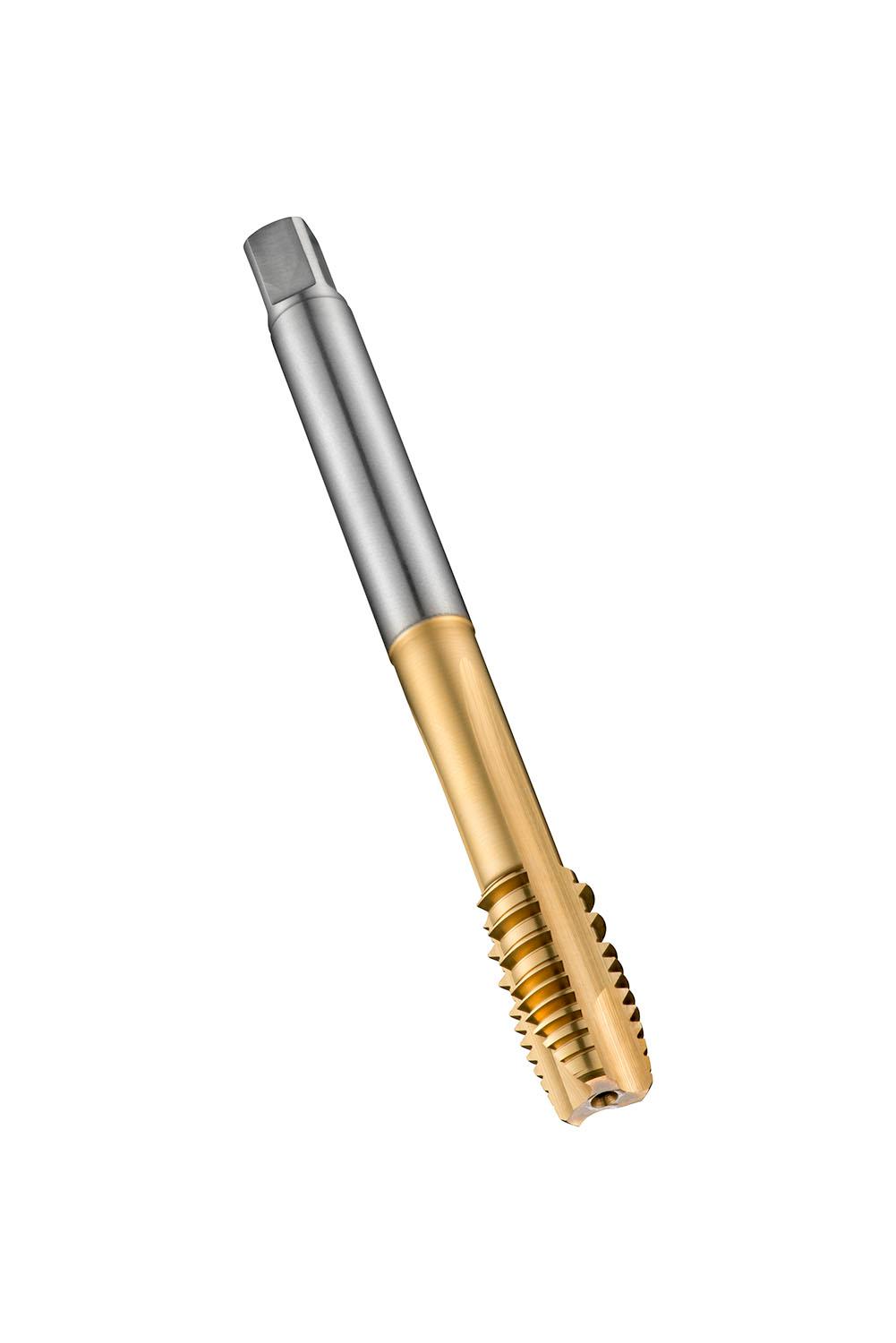

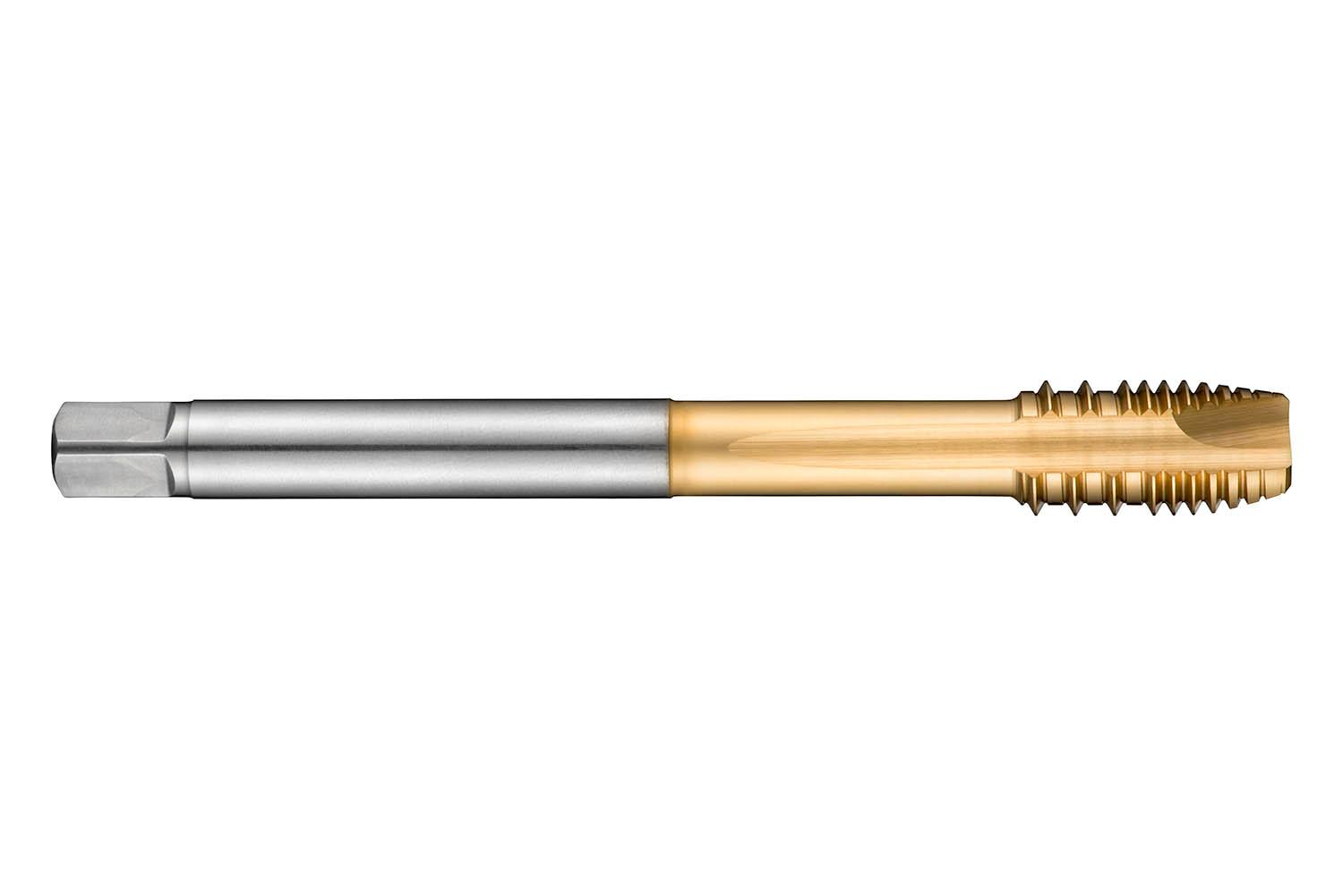

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with TiN coating for 3xD through hole threading in free machining, plain carbon and alloy steel and wrought or copper or copper alloys

Additional information

Weight	0.3553 kg
Dimensions
barcode

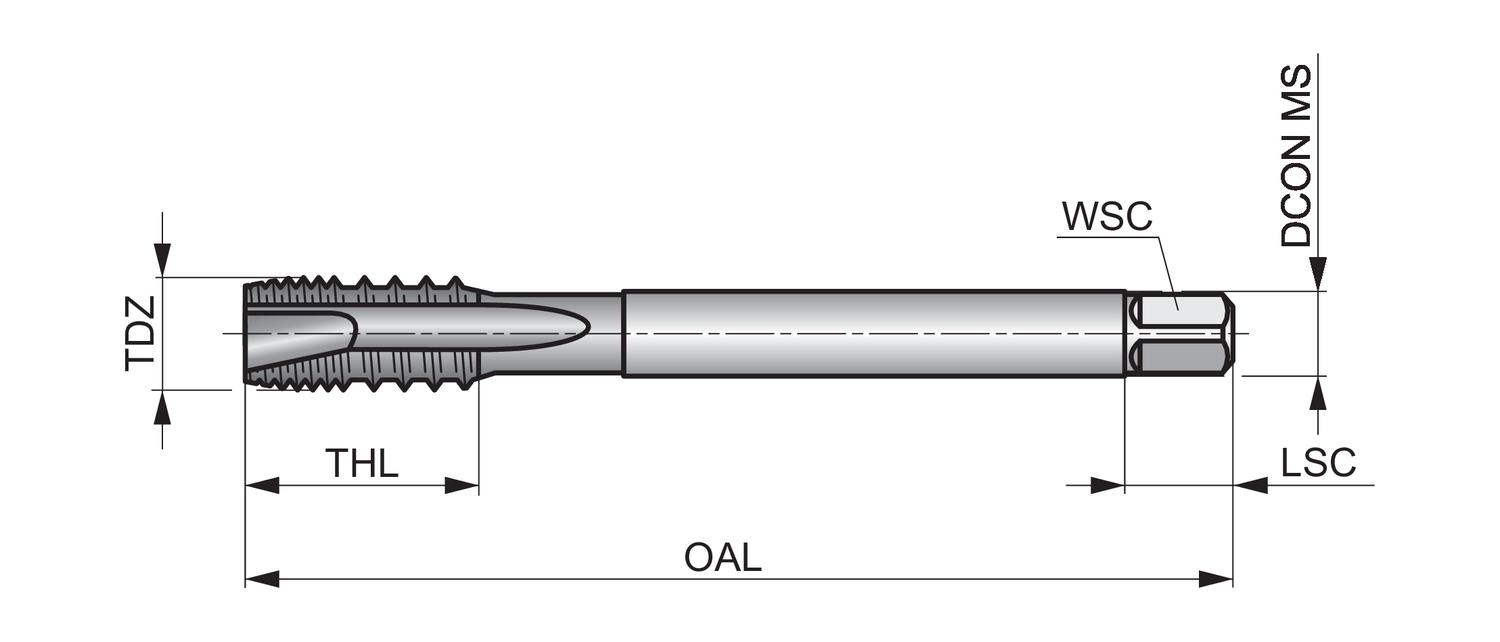

Additional Information	Description: Value Product name: E423M20 Product number (SAP): 86016207 EAN number: 7320760093023 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.5118 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.1811 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.4724 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.5906 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.689 inch Premachined hole diameter – millimeter (PHD): 17.5 mm Gross weight – grams: 213.3 ISO: E423M20 Ordering code ANSI: E423M20
