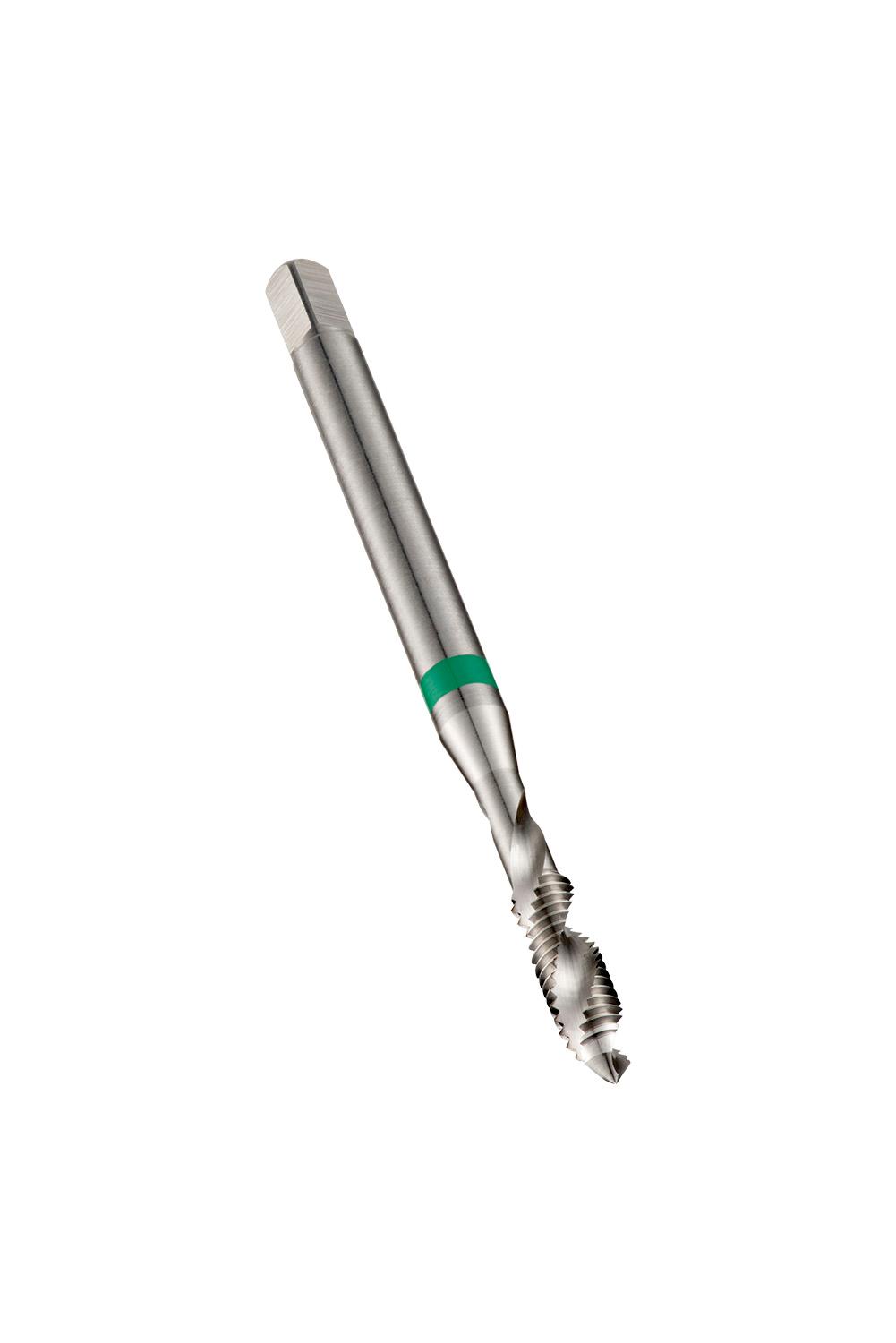

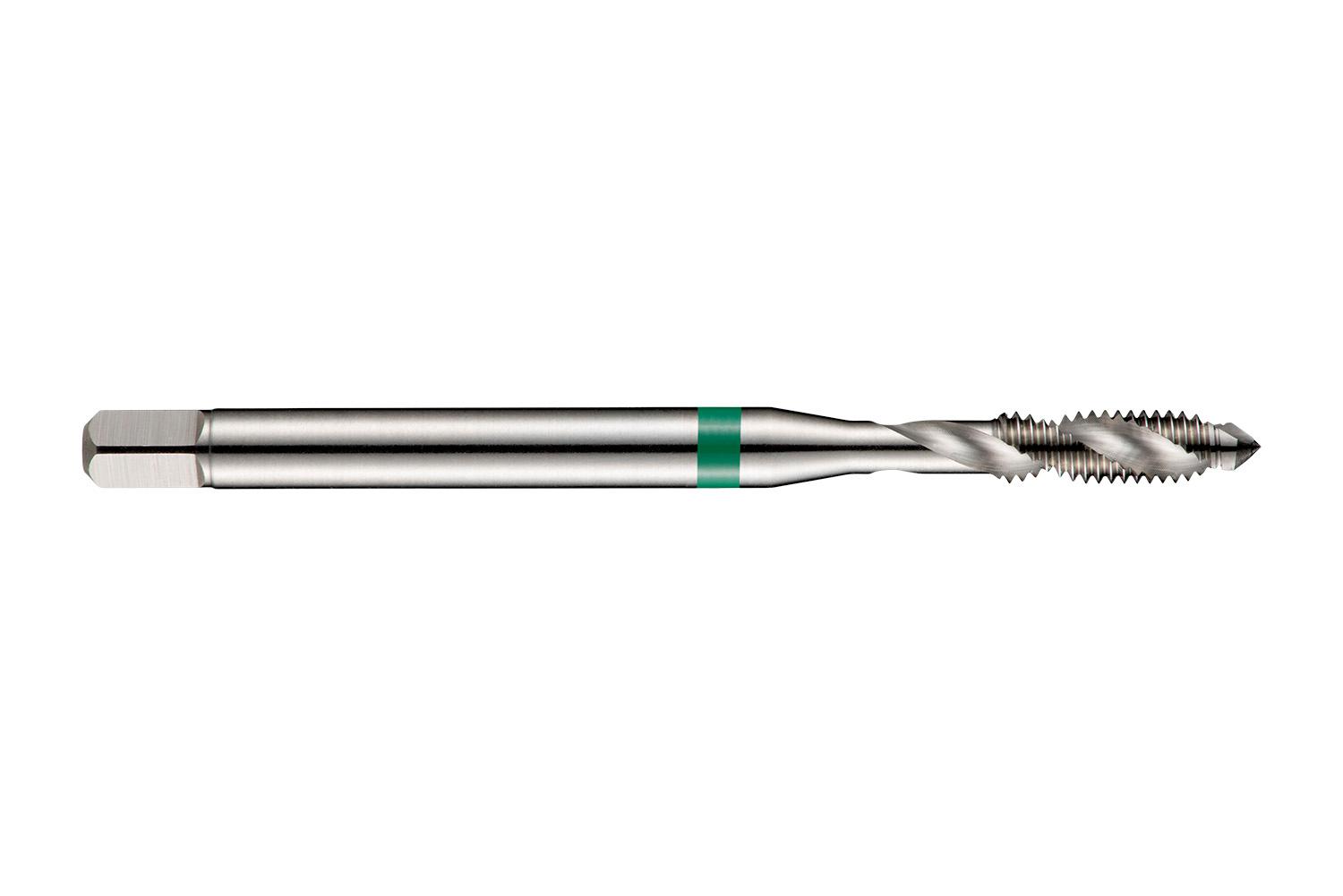

DORMER E473M20 HSS / HSCo DIN Taps

Description: Value
Product name: E473M20
Product number (SAP): 86016231
EAN number: 7320760674888
Product Line: SHARK

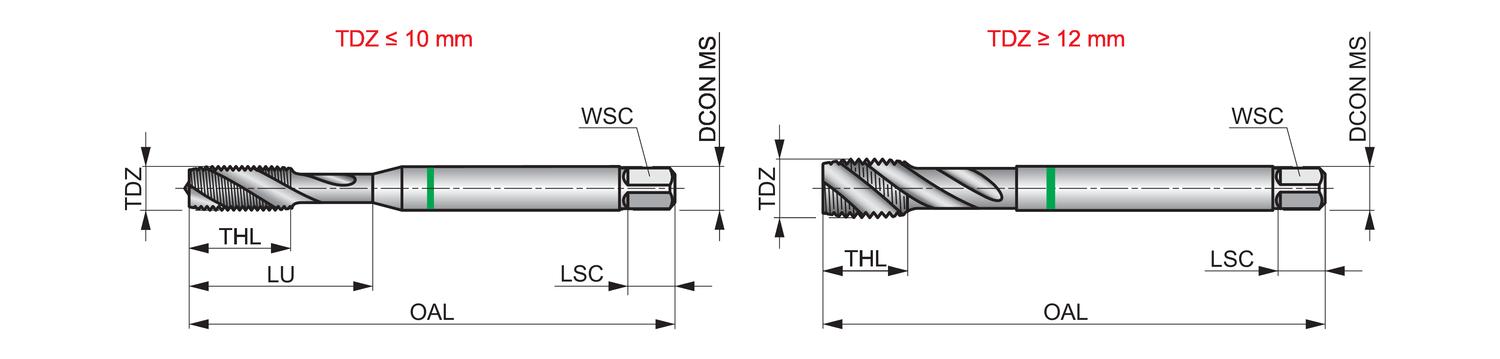

Thread diameter size (TDZ): 20
Thread pitch – millimeter (TP): 2.5 mm
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 0.6299 inch
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.4724 inch
Clamping width – millimeter (WSC): 12 mm
Clamping Length – inch (LCS): 0.5906 inch
Clamping Length – millimeter (LSC): 15 mm
Premachined hole diameter – inch (PHD): 0.689 inch
Premachined hole diameter – millimeter (PHD): 17.5 mm
Gross weight – grams: 191
ISO: E473M20
Ordering code ANSI: E473M20
