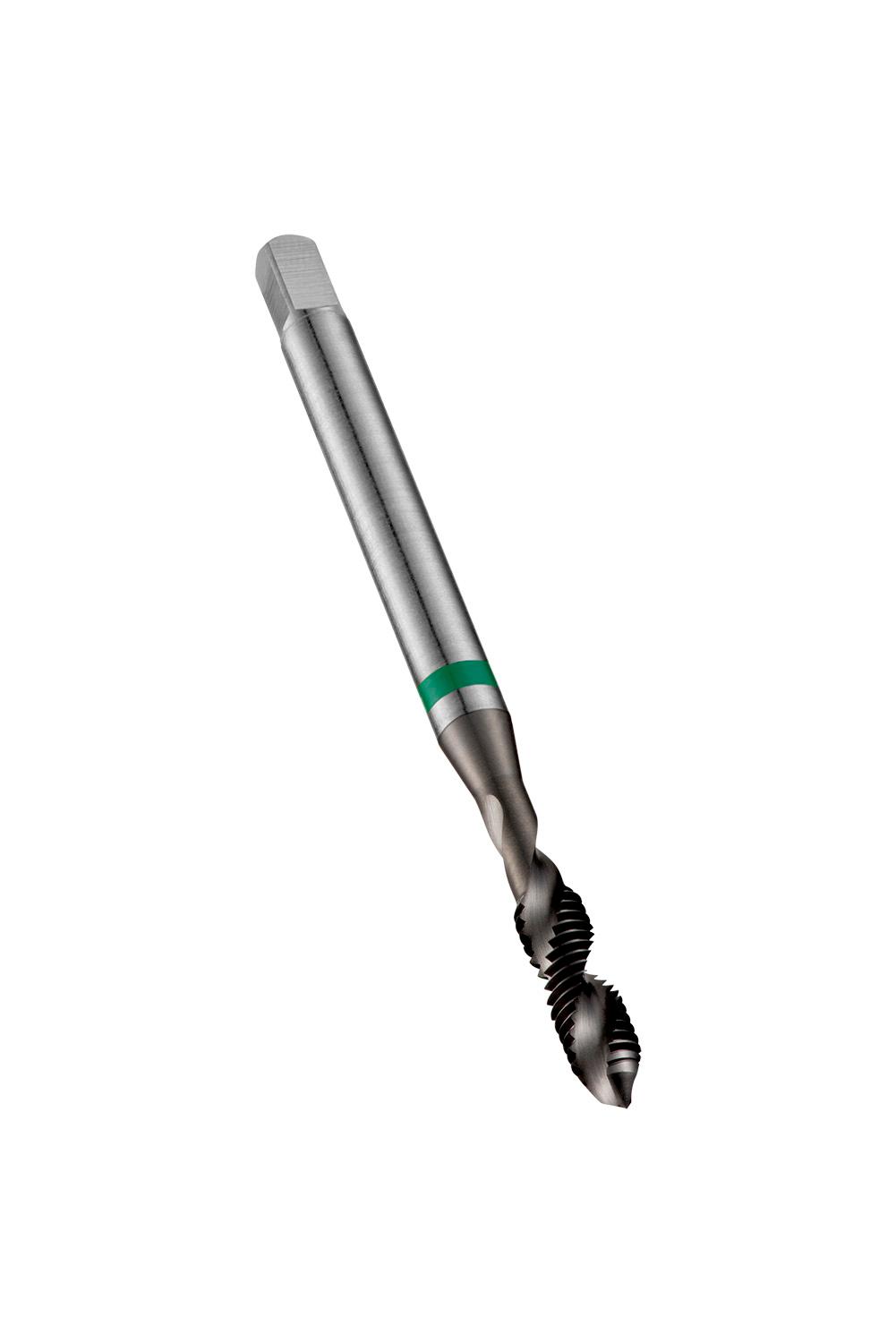

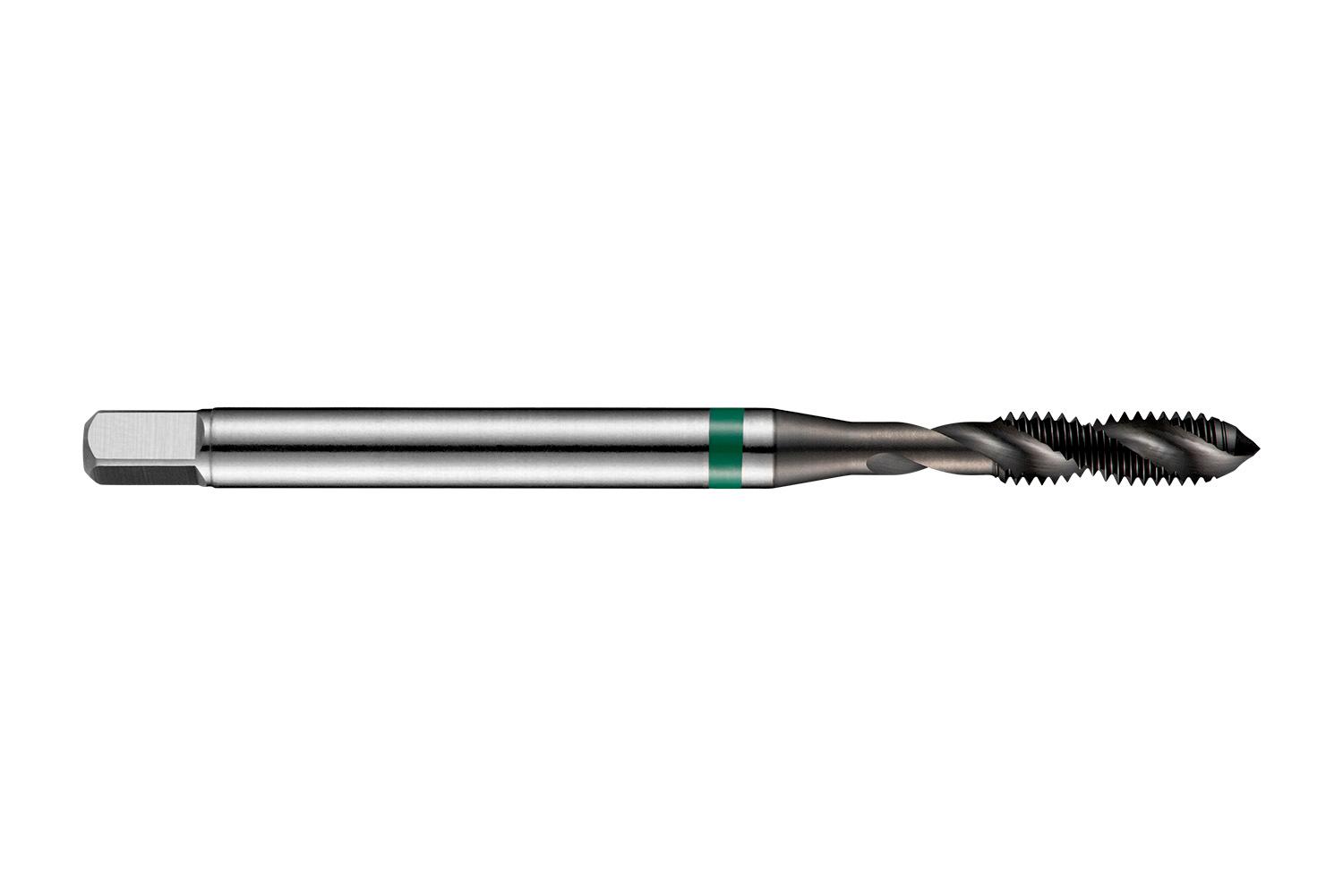

DORMER E474M10 HSS / HSCo DIN Taps

Description: Value
Product name: E474M10
Product number (SAP): 86016237
EAN number: 7320760674949
Product Line: SHARK

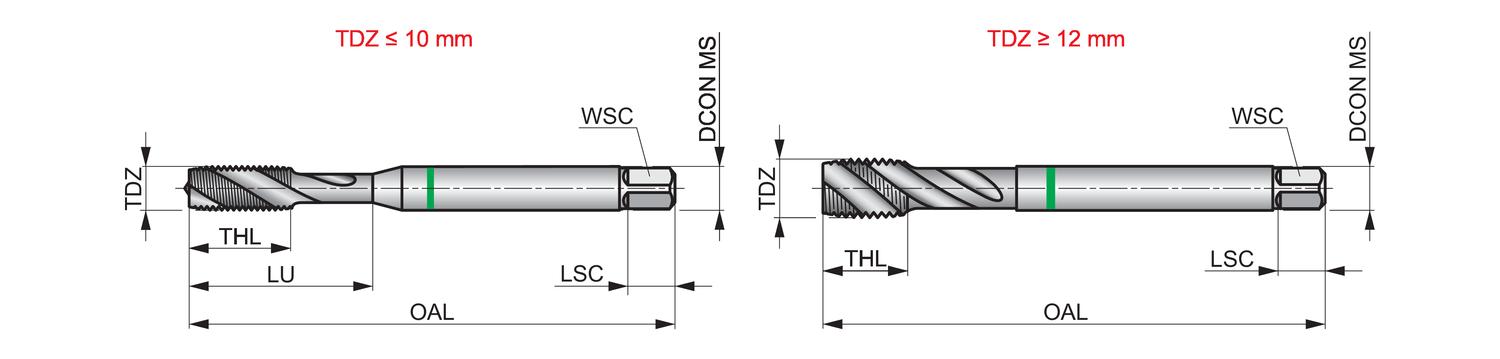

Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 20 mm
Threading length – inch (THL): 0.7874 inch
Connection diameter – inch (DCON MS): 0.3937 inch
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 2
Usable Length – inch (LU): 1.5354 inch
Usable Length – millimeter (LU): 39 mm
Clamping width – inch (WSC): 0.315 inch
Clamping width – millimeter (WSC): 8 mm
Clamping Length – inch (LCS): 0.4331 inch
Clamping Length – millimeter (LSC): 11 mm
Premachined hole diameter – inch (PHD): 0.3346 inch
Premachined hole diameter – millimeter (PHD): 8.5 mm
Gross weight – grams: 52.6
ISO: E474M10
Ordering code ANSI: E474M10
