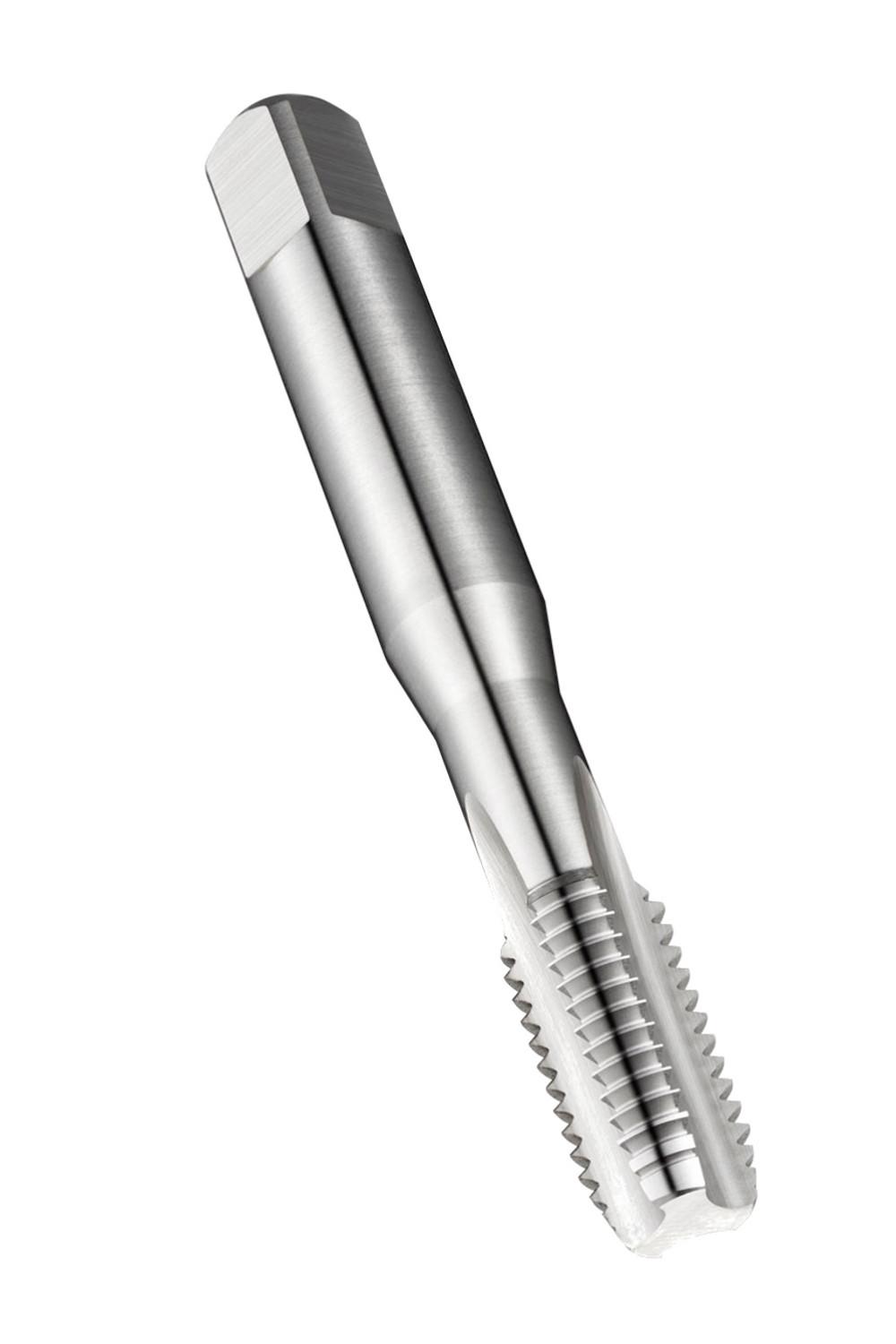

DORMER E500M1.2NO3 HSS Straight Flute Taps

Description: Value
Product name: E500M1.2NO3
Product number (SAP): 86016248
EAN number: 7320760122471

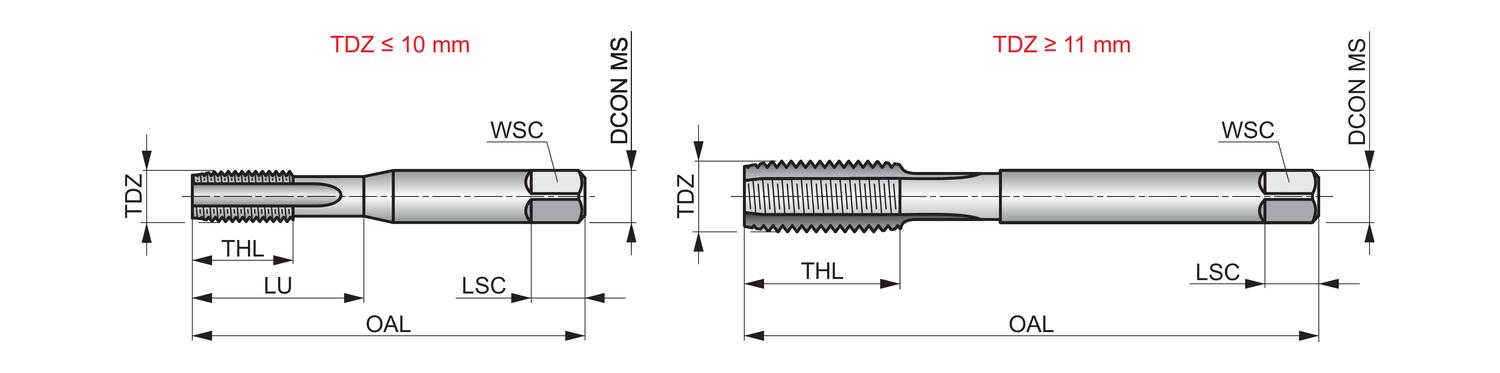

Thread diameter size (TDZ): 1.2
Thread pitch – millimeter (TP): 0.25 mm
Overall length – millimeter (OAL): 38 mm
Overall length – inch (OAL): 1.4961 inch
Threading length – millimeter (THL): 4.5 mm
Threading length – inch (THL): 0.1772 inch
Connection diameter – inch (DCON MS): 0.0984 inch
Connection diameter – millimeter (DCON MS): 2.5 mm
Flute count (NOF): 2
Usable Length – inch (LU): 0.1772 inch
Usable Length – millimeter (LU): 4.5 mm
Clamping width – inch (WSC): 0.0787 inch
Clamping width – millimeter (WSC): 2 mm
Clamping Length – inch (LCS): 0.1575 inch
Clamping Length – millimeter (LSC): 4 mm
Premachined hole diameter – inch (PHD): 0.0374 inch
Premachined hole diameter – millimeter (PHD): 0.95 mm
Gross weight – grams: 3.4
ISO: E500M1.2NO3
Ordering code ANSI: E500M1.2NO3
